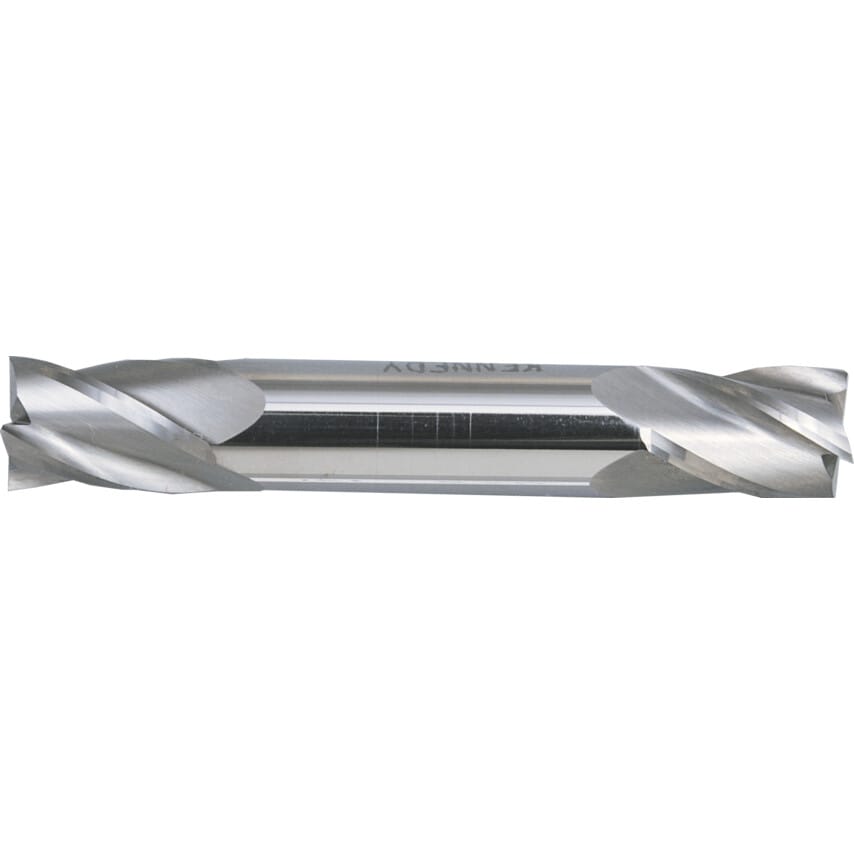

Double Ended - Regular Series - Metric
4 Flute
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting. Manufactured to Ansi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Finish/Coating | Uncoated |
| Plunge Type | Centre Cutting |
| Helix Direction | Right Hand |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Helix Angle | 30\u00b0 |
| Length Type | Regular |
| Overall Length | 63mm |
| Cutter Diameter | 5mm |
| Cutter Style | Square End |
| End Mill Type | End Mill |
| MFR Part No. | E599911132 |
| Milling Application | Plunging | Routing | Slotting |
| Shank Type | Plain Round |
| Reach Type | Standard Neck |
| Flute Length | 10mm |
| Flute Type | Helical |
| Material Application | Alloy Steel | Aluminium | Carbon Steel | Cast Iron | Copper | Hardened Steel | Stainless Steels |
| Cutter Diameter Tolerance | H10 |
| Number of Flutes | 4 |
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | End Mills |
| Shank Diameter | 5mm |
| Number of Cutting Ends | 2 |
| Standards Met | ANSI |
| Coolant Delivery | External |
