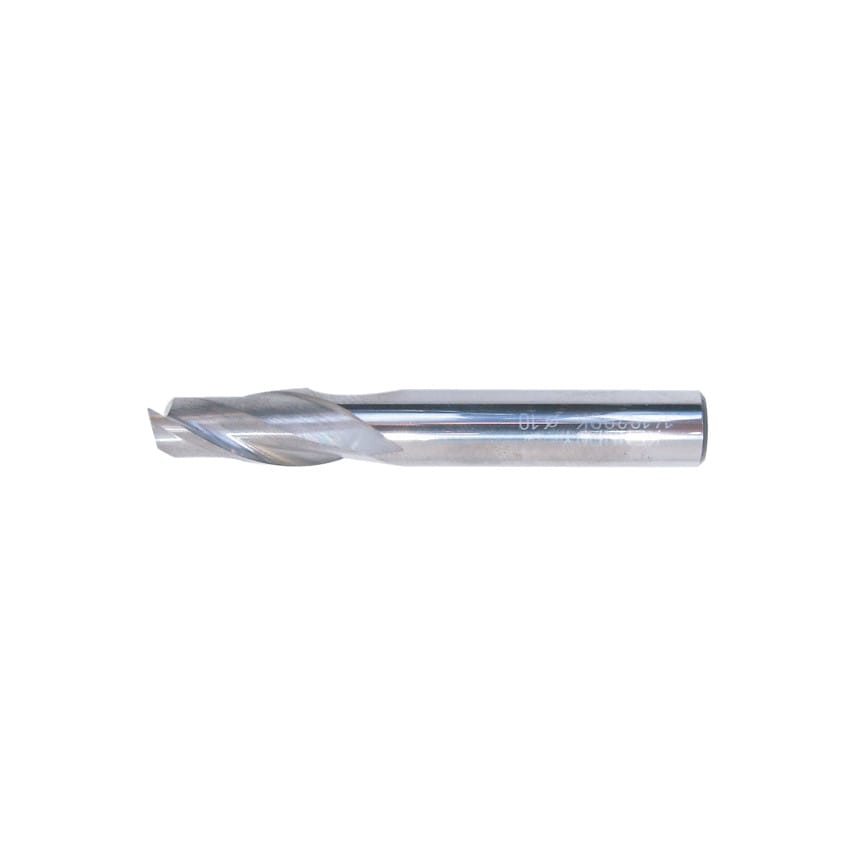

2 flute regular series milling cutters for optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials.
Features and Benefits
Carbide micrograin construction for increased toughness
2 flutes for optimal cutting performance and maximum swarf removal when plunging
Standards
Manufactured to Works Standards
Notes
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080
| Helix Angle | 30\u00b0 |
| Material | Carbide |
| Cutter Diameter | 10.0mm |
| Standards Met | Works Standards |
| Shank Type | Plain Round |
| Plunge Type | Centre Cutting |
| Flute Type | Helical |
| System of Measurement | Metric |
| Shank Diameter Tolerance | H6 |
| Product Type | Carbide Slot Drill |
| Length Type | Regular |
| Overall Length | 70.0mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Shank Diameter | 10.0mm |
| Cutter Style | Square End |
| Milling Cutter Type | Slot Drill |
| Cutter Diameter Tolerance | H10 |
| Flute Length | 22.0mm |
| Finish/Coating | Uncoated |
| End Mill Type | Slot Drill |
