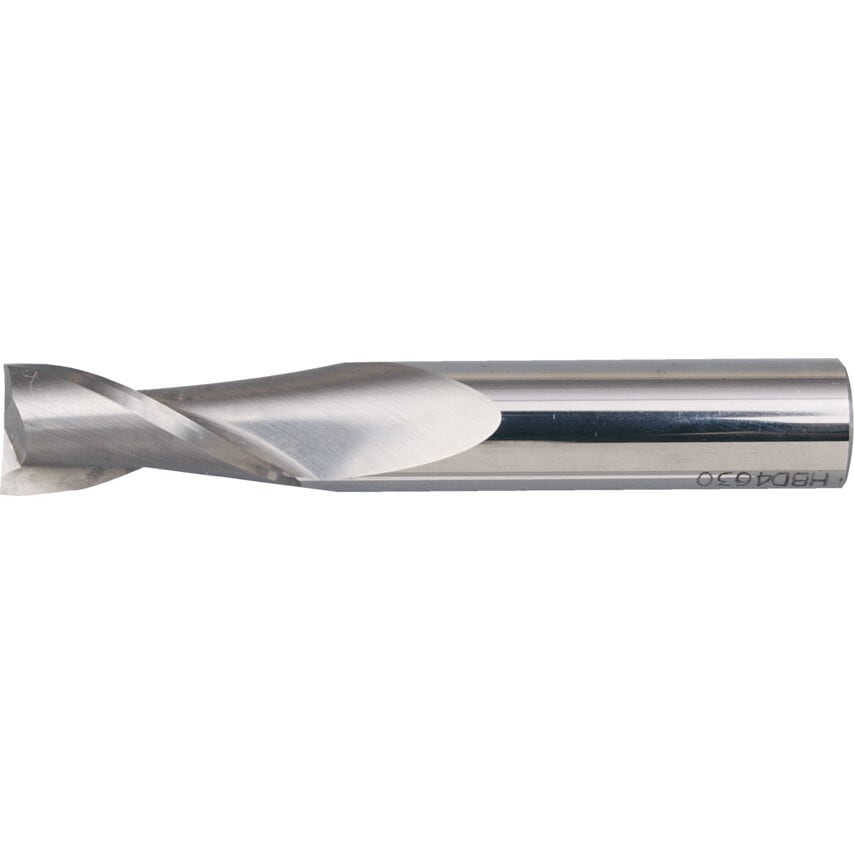

2 Flute: Regular Series - Inch
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to Works Standards.
Inch Tolerances
Diameter: Over 1/16 ~ up to 1/4. Tolerance: +0.000, -0.002.
Diameter: Over 1/4 ~ up to 1. Tolerance: +0.000, -0.003.
| Plunge Type | Centre Cutting |
| Cutter Diameter | 3/16in |
| Material | Carbide |
| Flute Length | 5/8in |
| Finish/Coating | Uncoated |
| Shank Diameter | 3/16in |
| Cutting Direction | Right Hand |
| Milling Cutter Type | Slot Drill |
| End Mill Type | Slot Drill |
| Shank Type | Plain Round |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
| Helix Angle | 30\u00b0 |
| Cutter Diameter Tolerance | H10 |
| Cutter Style | Square End |
| Product Type | Carbide Slot Drill |
| Overall Length | 2in |
| Length Type | Regular |
| Number of Flutes | 2 |
| Flute Type | Helical |
| System of Measurement | Inch |
