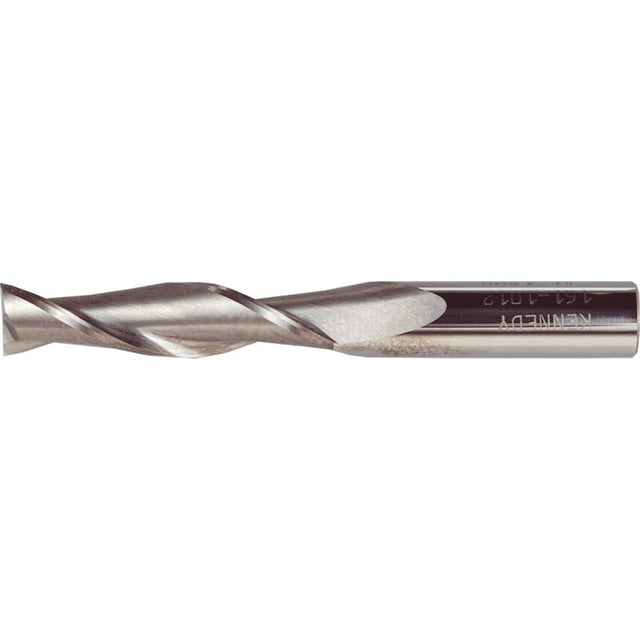

Long Series - 2 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Shank Diameter Tolerance | H6 |
| Flute Length | 30.0mm |
| End Mill Type | Slot Drill |
| Flute Type | Helical |
| Shank Diameter | 6.0mm |
| Overall Length | 75.0mm |
| Helix Angle | 30\u00b0 |
| Finish/Coating | Uncoated |
| Cutter Style | Square |
| Shank Type | Plain Round |
| Cutting Direction | Right Hand |
| Product Type | Slot Drills |
| Milling Cutter Type | Slot Drill |
| Coolant Delivery | External |
| Material | Carbide |
| System of Measurement | Metric |
| Number of Flutes | 2 |
| Cutter Diameter Tolerance | H10 |
| Length Type | Long |
| Standards Met | USCTi |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 6.0mm |
