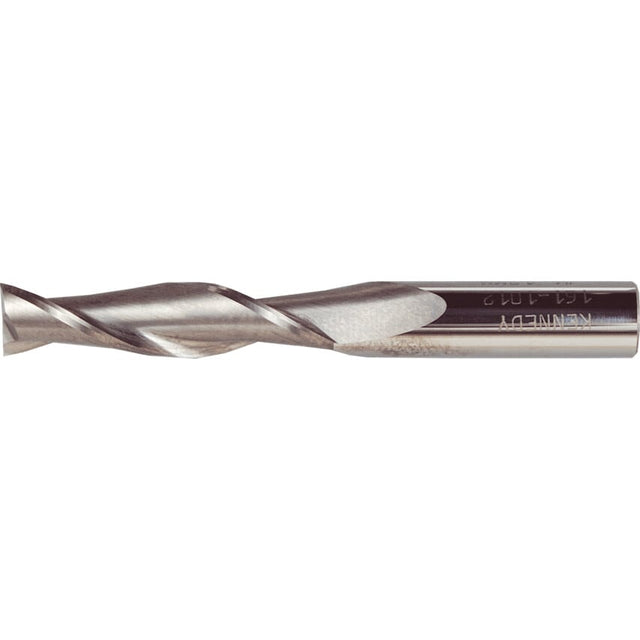

Long Series - 2 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Standards Met | USCTi |
| Plunge Type | Centre Cutting |
| Cutter Style | Square |
| Cutter Diameter | 3.0mm |
| Product Type | Carbide Slot Drill |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Number of Flutes | 2 |
| Finish/Coating | Uncoated |
| Length Type | Long |
| Helix Angle | 30\u00b0 |
| System of Measurement | Metric |
| Overall Length | 60.0mm |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter Tolerance | H10 |
| Shank Diameter | 3.0mm |
| Shank Type | Plain Round |
| Material | Carbide |
| Flute Length | 20.0mm |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
