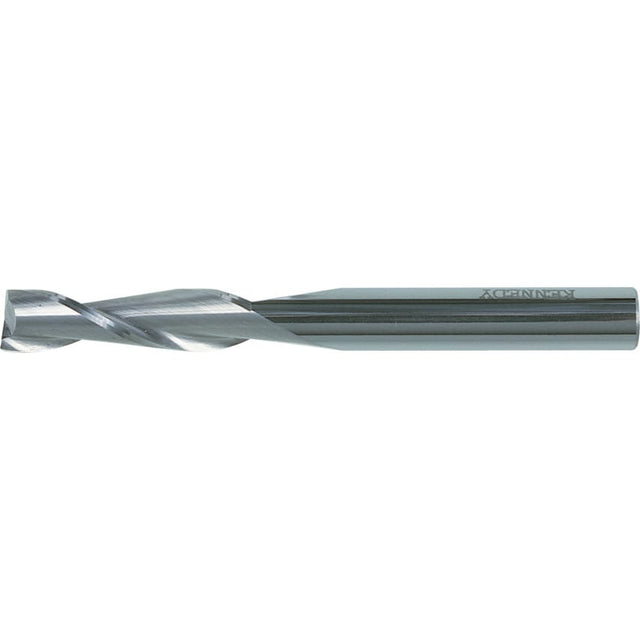

Long Series - 2 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Flute Length | 40.0mm |
| Cutter Style | Square |
| Milling Cutter Type | Slot Drill |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Number of Flutes | 2 |
| Cutter Diameter Tolerance | H10 |
| Plunge Type | Centre Cutting |
| Product Type | Slot Drills |
| Length Type | Long |
| Shank Diameter Tolerance | H6 |
| Overall Length | 100.0mm |
| Coolant Delivery | External |
| System of Measurement | Metric |
| Shank Type | Plain Round |
| End Mill Type | Slot Drill |
| Standards Met | USCTi |
| Shank Diameter | 10.0mm |
| Cutter Diameter | 10.0mm |
| Material | Carbide |
| Flute Type | Helical |
| Helix Angle | 30\u00b0 |
