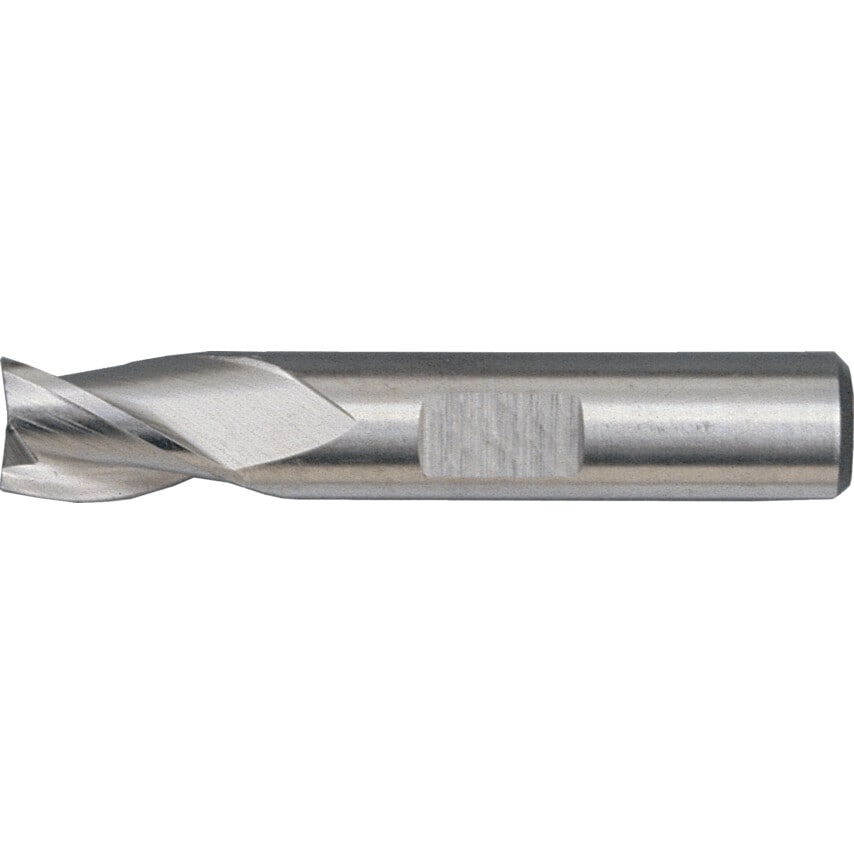

2MM HSS-Cobalt KC3 Throwaway Cutter

Short Series - Metric Kennedy KC3 throwaway 3* flute endmills are manufactured HSS-Co 5% making them much tougher than HSS. This means that Kennedy endmills can be used at higher speeds and feeds which in turn gives greater productivity. Suitable for slot drilling and end milling. Cutters are held in adaptors/chucks by the action of a set screw which locates on the shank flat giving quick and easy cutter change. *Except: 1mm cutters, 2mm and 1/16" ball nose cutters all of which have two flutes. Shank Diameter: 1.00 ~ 6.00 = 6.00mm, 7.00 ~ 10.00 = 10.00mm Metric Tolerances: Diameter: Over 1.00 ~ up to 3.00. Tolerance: +0.013, -0.033. Diameter: Over 3.00 ~ up to 6.00. Tolerance: +0.020, -0.020. Kennedy KC3 endmills are available uncoated, TiN coated and TiCN coated. TiN (Titanium nitride) provides a surface hardness in the region of 2300HV which offers improved wear resistance, tool life and productivity. TiCN (Titanium Carbonitride) gives a surface hardness in the region of 3000-3500 HV, excellent wear resistance and good heat resistance. This coating is used for the same things as TiN but also for hard steels, stainless, cast iron, brass & bronze.

Flute Type	Helical
Length Type	Short
Plunge Type	Centre Cutting
End Mill Type	Slot Drill
Coolant Delivery	External
Material Application	Aluminium | Aluminium Alloys | Cast Iron | Nonferrous Metals | Steels
Number of Flutes	2
Shank Diameter	6.0mm
Shank Type	Weldon Flat
Cutter Style	Square End
Milling Application	End Milling | Slotting
Flute Length	2.0mm
Milling Cutter Type	Throwaway
Cutter Diameter	1.0mm
Finish/Coating	Uncoated
Cutting Direction	Right Hand
Chuck Clearance	9.5mm
ISO Category	P
Material	Cobalt High Speed Steel
Overall Length	25.5mm
Material Grade	M35
