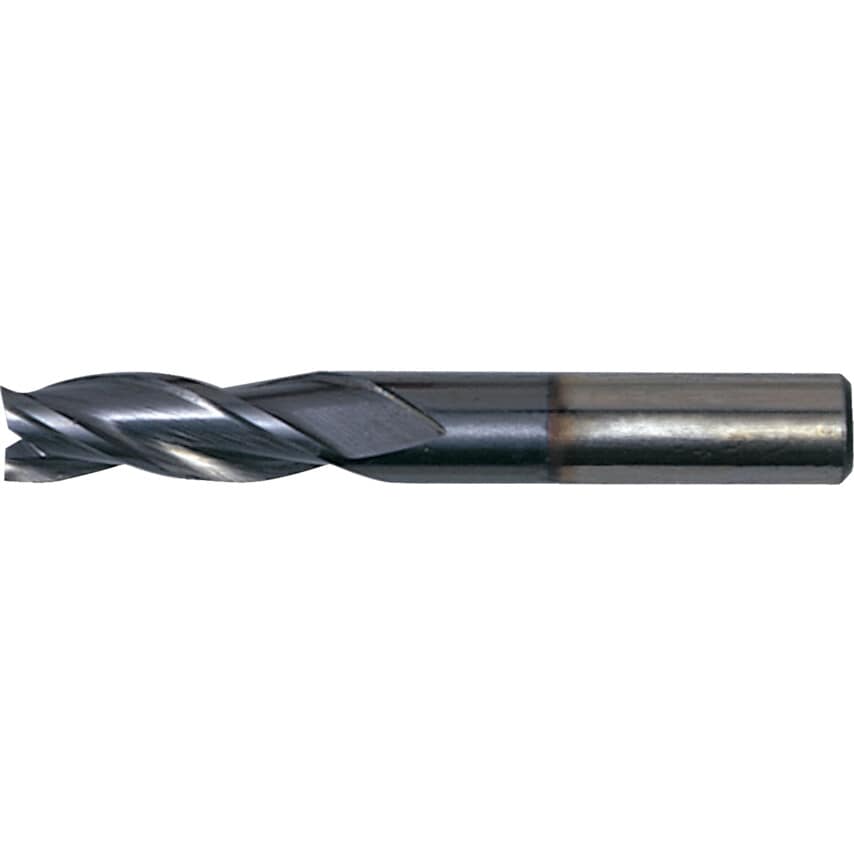

5.5MM TiCN L/S KC3 Throwaway Cutter

Long Series - Metric - TiCN Coated. Kennedy KC3 throwaway 3* flute endmills are manufactured HSS-Co 5% making them much tougher than HSS. This means that Kennedy endmills can be used at higher speeds and feeds which in turn gives greater productivity. Suitable for slot drilling and end milling. Cutters are held in adaptors/chucks by the action of a set screw which locates on the shank flat giving quick and easy cutter change. *Except: 1mm cutters, 2mm and 1/16" ball nose cutters, all of which have two flutes. Metric Tolerances: Diameter: Over 1.00 ~ up to 3.00. Tolerance: +0.013, -0.033. Diameter: Over 3.00 ~ up to 6.00. Tolerance: +0.020, -0.020. Kennedy KC3 endmills are available uncoated, TiN coated and TiCN coated. TiN (Titanium nitride) provides a surface hardness in the region of 2300HV which offers improved wear resistance, tool life and productivity. TiCN (Titanium Carbonitride) gives a surface hardness in the region of 3000-3500 HV, excellent wear resistance and good heat resistance. This coating is used for the same things as TiN but also for hard steels, stainless, cast iron, brass & bronze.

Milling Cutter Type	Throwaway
Flute Type	Helical
Flute Length	14.5mm
ISO Category	P
Coolant Delivery	External
Cutting Direction	Right Hand
Length Type	Short
Shank Type	Weldon Flat
Material Grade	M35
Milling Application	End Milling | Slotting
Material	Cobalt High Speed Steel
Cutter Diameter	5.5mm
Finish/Coating	TiCN
Shank Diameter	6.0mm
Plunge Type	Centre Cutting
Material Application	Aluminium | Aluminium Alloys | Cast Iron | Nonferrous Metals | Steels
Cutter Style	Square End
Overall Length	46.0mm
Number of Flutes	3
System of Measurement	Metric
Chuck Clearance	19.0mm
End Mill Type	Slot Drill
