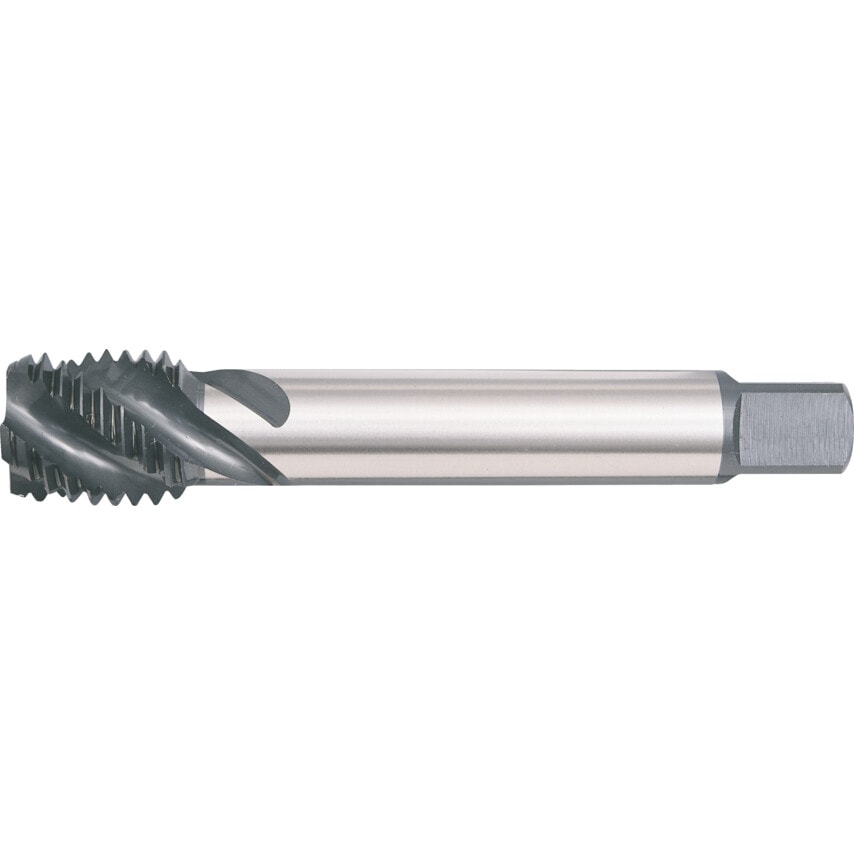

Made from a super grade high speed steel with extra vanadium content. This has a distinct advantage with taps, by increasing wear resisting properties and extending tool life significantly. These taps are intended for general application where consistent results and improved tool life are important. Threads can be produced in a range of steels, including stainless and cast steels as well as some long chip non-ferrous materials.
| Thread Length | 19mm |
| Finish/Coating | Steam Tempered |
| Ring Colour | No Coloured Ring |
| Material | Vanadium High Speed Steel |
| Thread Standard | UNC |
| Square Width | 6.3mm |
| Thread Direction | Right Hand |
| Helix Angle | 45 |
| Dimensions Standard | BS 949 | ISO 529 |
| Number of Flutes | 3 |
| Shank Diameter | 6.3mm |
| Teeth per Inch | 20 |
| Thread Size | 1/4\x20 |
| Tap Type | Spiral Flute |
| Class of Fit | B2 |
| Coolant Delivery | External |
| Material Grade | M35 |
| Overall Length | 66mm |
| Material Application | Aluminium Alloys | Cast Materials | Hardened Steel |
