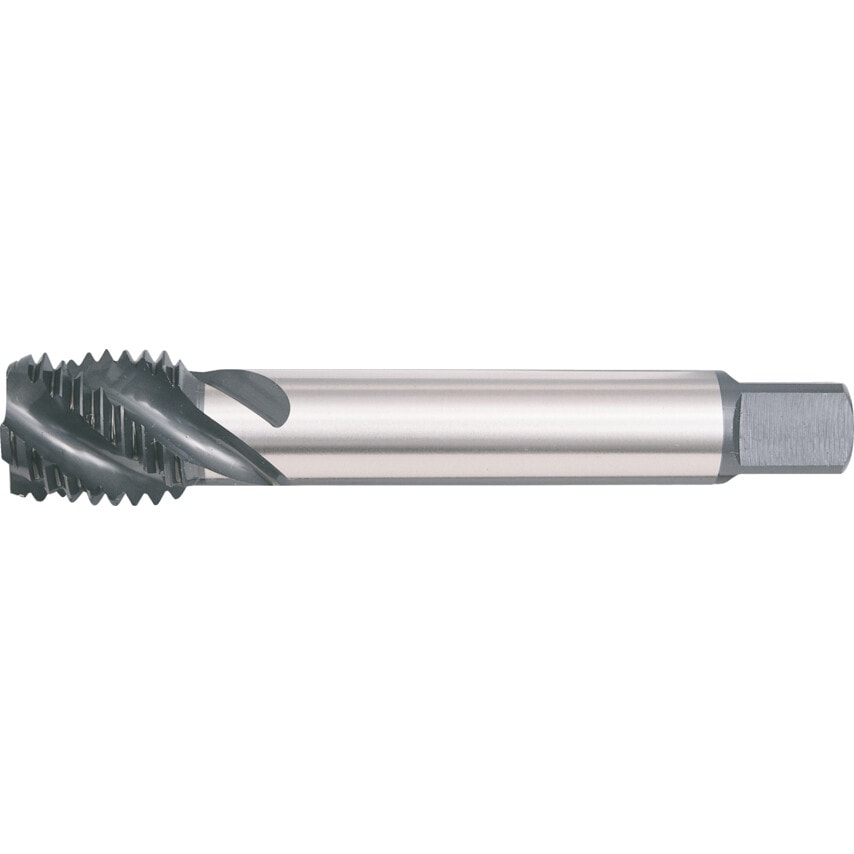

Made from a super grade high speed steel with extra vanadium content. This has a distinct advantage with taps, by increasing wear resisting properties and extending tool life significantly. These taps are intended for general application where consistent results and improved tool life are important. Threads can be produced in a range of steels, including stainless and cast steels as well as some long chip non-ferrous materials.
Features
Suitable for blind holes
Manufactured to BS 949 and ISO 529
45 Helix
Right hand spiral flutes
Oxidised finish gives resistance to rust and reduces metal to metal friction
| Overall Length | 76mm |
| Finish/Coating | Steam Tempered |
| Square Width | 8mm |
| Dimensions Standard | BS 949 Part 4 |
| Coolant Delivery | External |
| Tap Type | Spiral Flute |
| Thread Standard | UNF |
| Product Type | Taps |
| Shank Diameter | 10mm |
| Number of Flutes | 3 |
| Pitch | 24 |
| Class of Fit | 2B |
| Thread Direction | Right Hand |
| Teeth per Inch | 24 |
| Thread Length | 20mm |
| Material | Vanadium High Speed Steel |
| Thread Size | 3/8\ |
| Ring Colour | No Coloured Ring |
| Material Application | Aluminium Alloys | Cast Materials | Hardened Steel |
| Helix Angle | 45\u00b0 |
