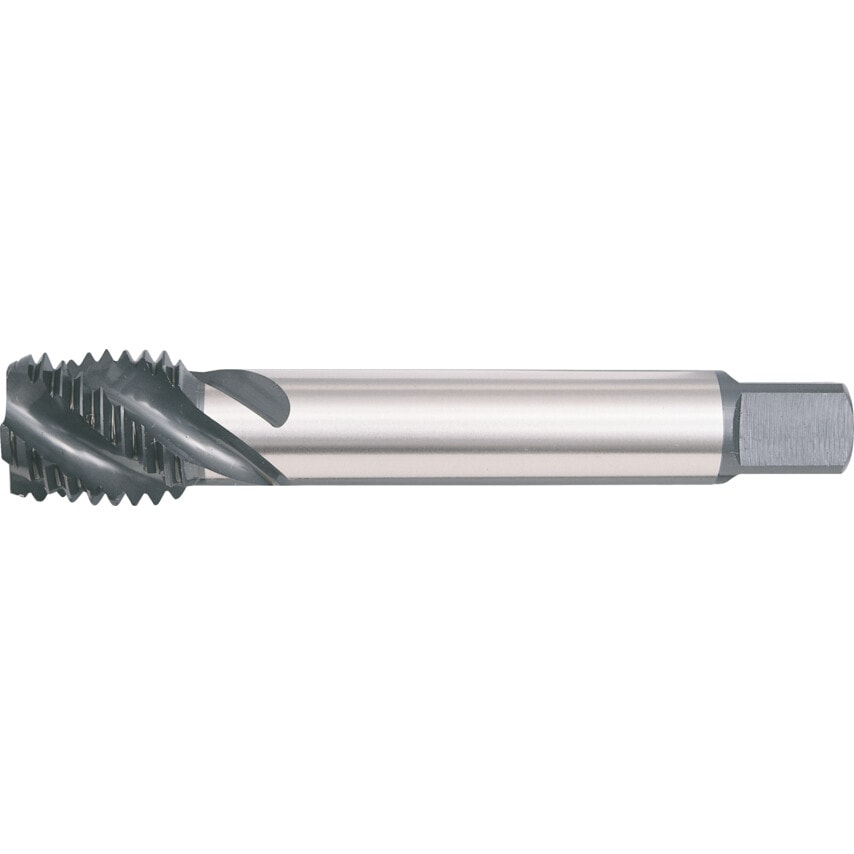

Metric Coarse Spiral Flute
HSS - EV. Oxidised finish. Tolerance 6H.
Machine Taps Spiral Flute

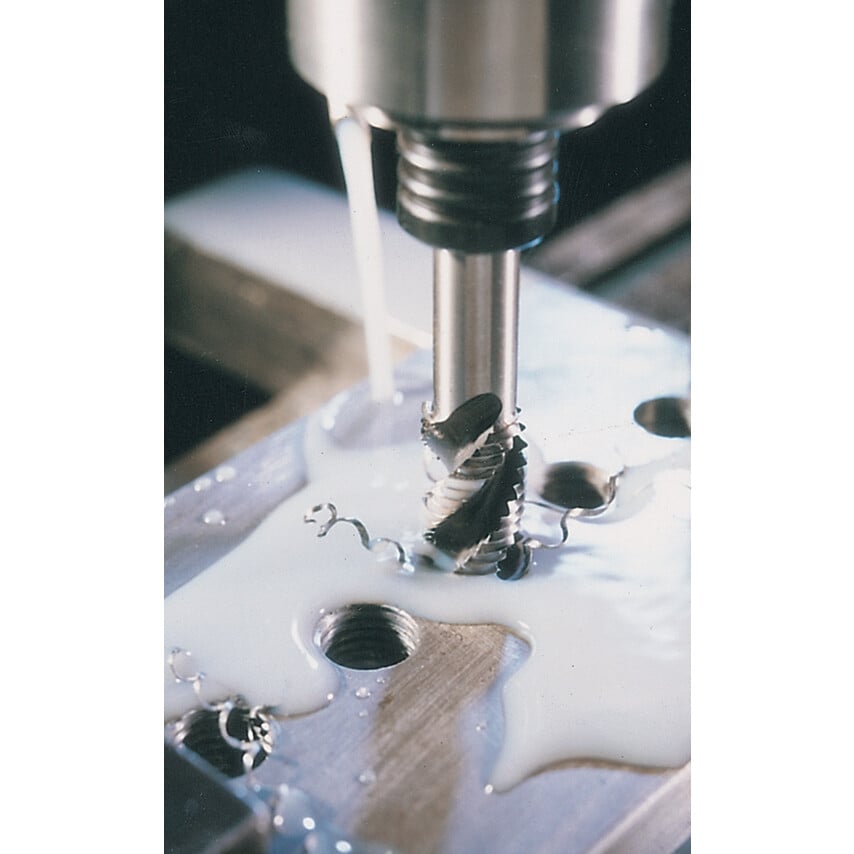

With high helix (45), right hand spiral flutes, designed to pull swarf towards the shank of the tap. Most suitable for blind-hole tapping.
Manufactured to BS 949 : Part 4 : 1990 and ISO 529 : 1975.
Made from a super grade high speed steel with extra vanadium content. This has a distinct advantage with taps, by increasing wear resisting properties and extending tool life significantly. These taps are intended for general application where consistent results and improved tool life are important. Threads can be produced in a range of steels, including stainless and cast steels as well as some long chip non-ferrous materials.
Oxidised Finish (Black)
Special heat treated finish gives resistance to rust and reduces metal to metal friction. Combined with a porous surface that gives optimum lubricant retention, work-generated heat is minimised, giving prolonged cutting edge life. Use on higher carbon steels cast materials high silicon aluminiums.
| Square Width | 11.2mm |
| Coolant Delivery | External |
| Finish/Coating | Steam Tempered |
| Thread Length | 20.00mm |
| Material Grade | M35 |
| Dimensions Standard | BS 949 | ISO 529 |
| Number of Flutes | 4 |
| Pitch | 2.50 |
| Thread Direction | Right Hand |
| Material Application | Aluminium Alloys | Cast Materials | Hardened Steel |
| Overall Length | 112mm |
| Material | Vanadium High Speed Steel |
| Helix Angle | 45 |
| Shank Diameter | 11.2mm |
| Thread Standard | Metric Coarse |
| Thread Size | M20 |
| Tap Type | Spiral Flute |
| Class of Fit | 6H |
| Ring Colour | No Coloured Ring |
