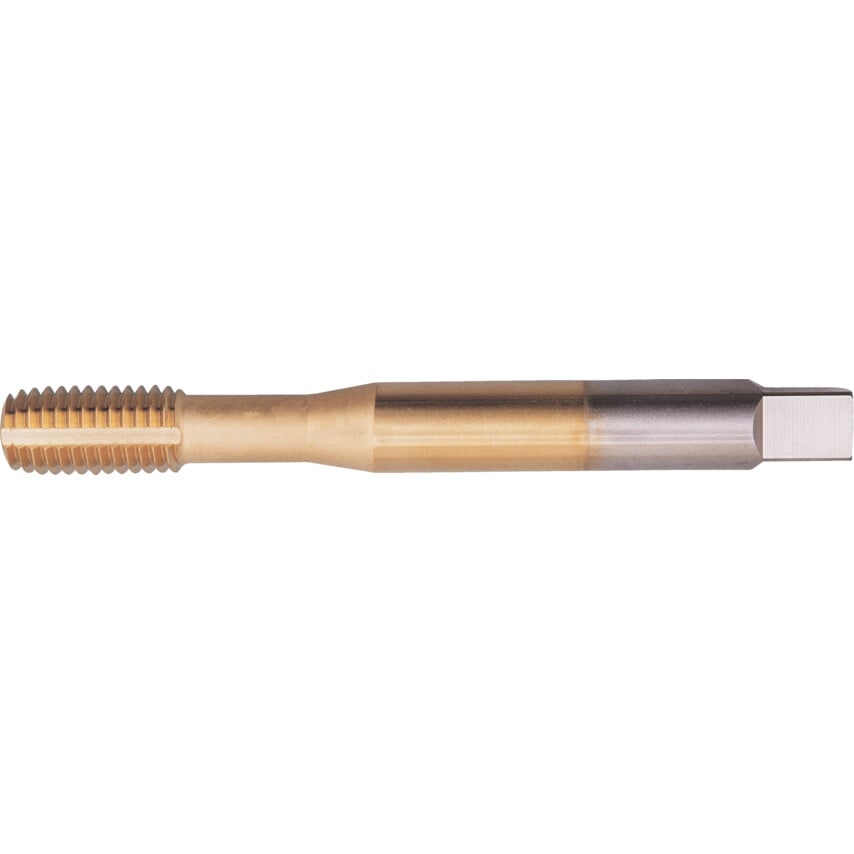

Lubrication grooves are a feature of all Thredfloer taps of M3.0 and over. These allow lubrication to reach the end of the tap to maintain tool life and to prevent damage from 'hydraulic blow out
Suitable for the following Material Groups
Metric Coarse
HSS, TiN coated. Tolerance 6H.
Manufactured
to DIN 371.
| Coolant Delivery | External |
| Pitch | 1.0 |
| Thread Length | 20.00mm |
| Material Application | Aluminium | Aluminium Alloys | Magnesium | Zinc |
| Tapping Depth | 16.0mm |
| Thread Direction | Right Hand |
| Square Width | 4.9mm |
| Material | HSS |
| Thread Standard | Metric Coarse |
| Ring Colour | No Coloured Ring |
| Shank Diameter | 6.0mm |
| Dimensions Standard | DIN 371 |
| Class of Fit | 6H |
| Thread Size | M6 |
| Finish/Coating | TiN |
| Overall Length | 80mm |
| Material Grade | M2 |
| Tap Type | Fluteless |
