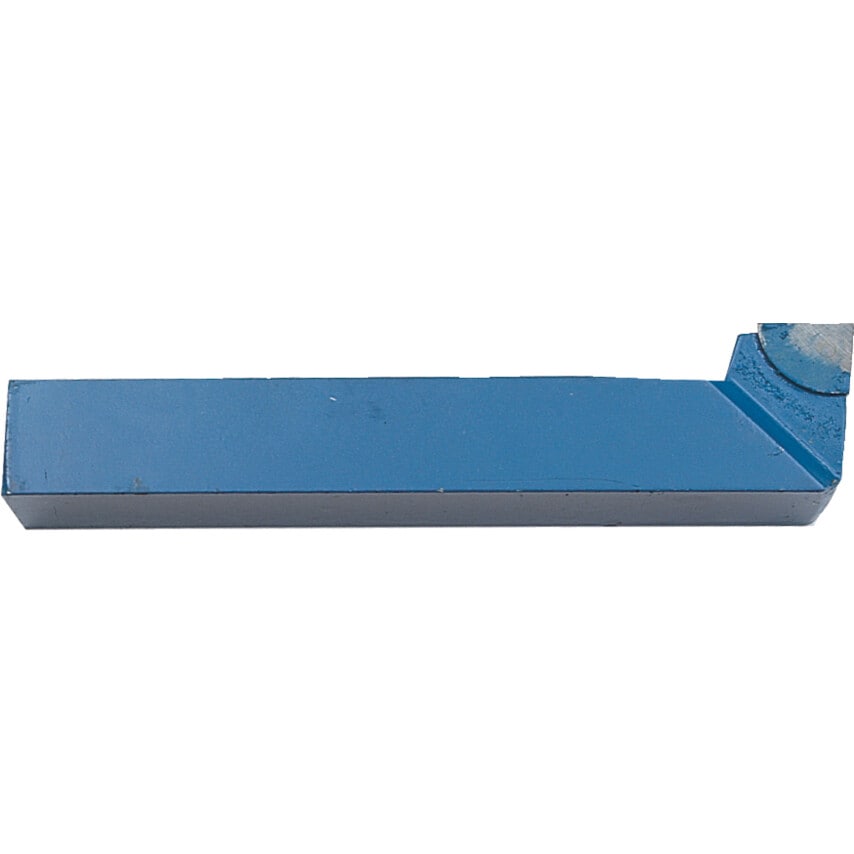

Kennedy Brazed Tip Turning & Boring Tools are manufactured in three standard grades. (All sizes are nominal). Manufactured to ISO DIN BHMA Standards.
P40: Roughing to heavy roughing of steel and steel castings using heavy feeds and low to medium cutting speeds. Also used under unfavourable conditions, particularly where intermittent cutting is involved. This grade is also suitable for planing operations and for machining manganese steel.
| Lead Angle | 5\u00b0 |
| Cutting Direction | Left Hand |
| Clearance Angle | 6\u00b0 |
| Tool Number | 171 |
| Tip Material | Carbide |
| Tool Type | Cranked Turning |
| ISO Category Grade | P |
| Overall Length | 5-1/2in |
| Material Application | Steels |
| ISO Cut | P40 |
| Shank Width | 3/4in |
| Shank Height | 3/4in |
| Standards Met | ISO DIN BHMA |
