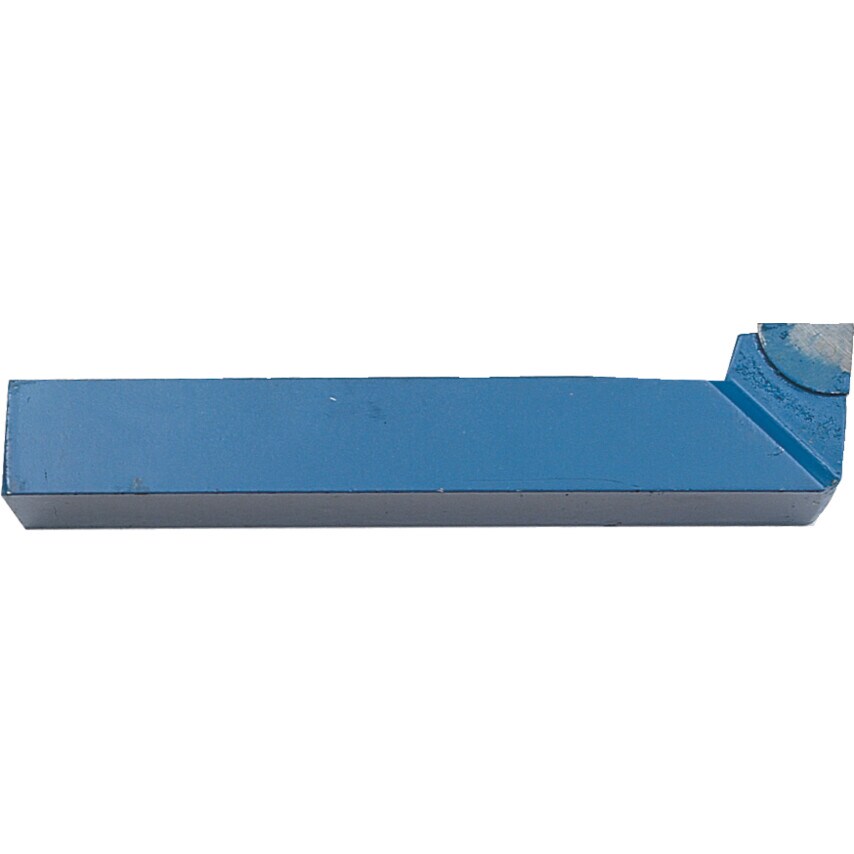

Kennedy Brazed Tip Turning & Boring Tools are manufactured in three standard grades. (All sizes are nominal). Manufactured to ISO DIN BHMA Standards.
K20: General-purpose tools for most applications. Ideal for machining cast iron, non-ferrous metals, bakelite etc. Combines wear resistance with toughness when rough turning at moderate cutting speeds. Suitable for high feed rates.

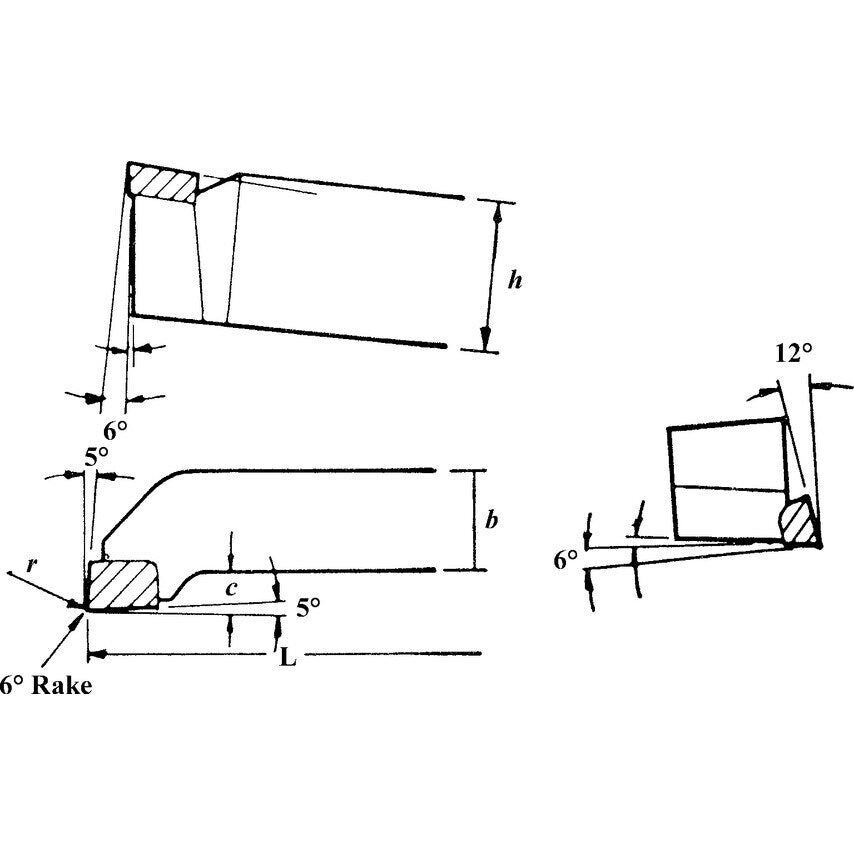

| Tool Number | 174 |
| Shank Height | 1in |
| Cutting Direction | Right Hand |
| Standards Met | ISO DIN BHMA |
| Clearance Angle | 6\u00b0 |
| Overall Length | 5-1/2in |
| Shank Width | 3/4in |
| Tip Material | Carbide |
| ISO Cut | K20 |
| ISO Category Grade | K |
| Material Application | Cast Iron | Nonferrous Metals |
| Lead Angle | 5\u00b0 |
| Tool Type | Cranked Turning |
