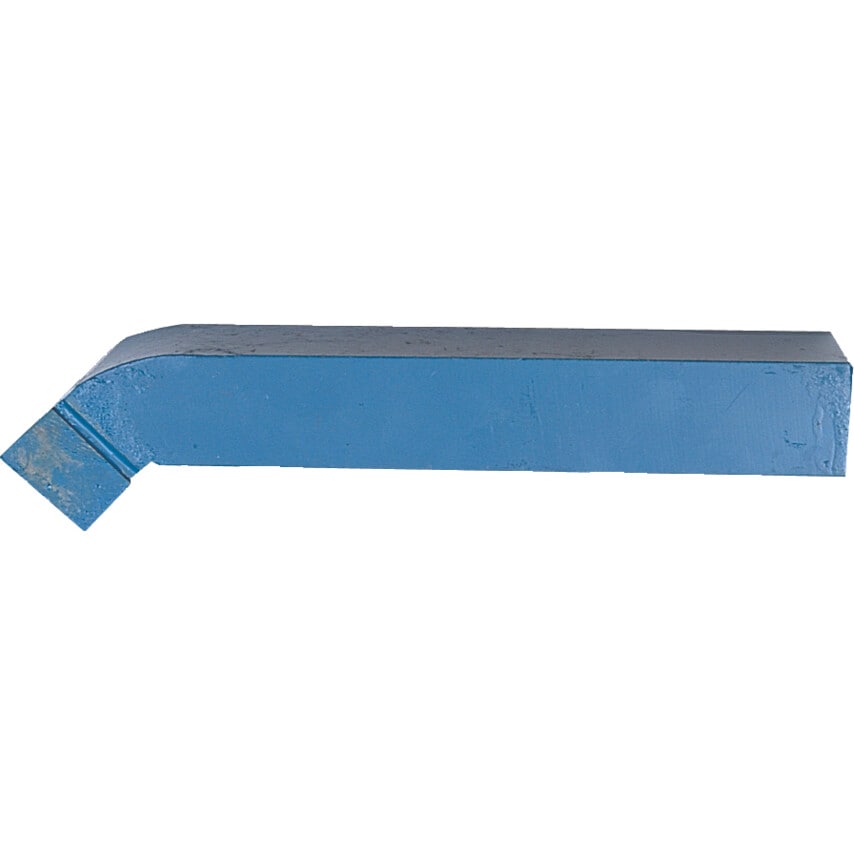

Kennedy Brazed Tip Turning & Boring Tools are manufactured in three standard grades. (All sizes are nominal). Manufactured to ISO DIN BHMA Standards.
P40: Roughing to heavy roughing of steel and steel castings using heavy feeds and low to medium cutting speeds. Also used under unfavourable conditions, particularly where intermittent cutting is involved. This grade is also suitable for planing operations and for machining manganese steel.
| Shank Height | 1in |
| Standards Met | ISO DIN BHMA |
| Shank Width | 1in |
| Clearance Angle | 6\u00b0 |
| ISO Category Grade | P |
| Material Application | Steels |
| Cutting Direction | Right Hand |
| ISO Cut | P40 |
| Tip Material | Carbide |
| Tool Number | 206 |
| Overall Length | 6-1/2in |
| Tool Type | Cranked Turning & Facing |
