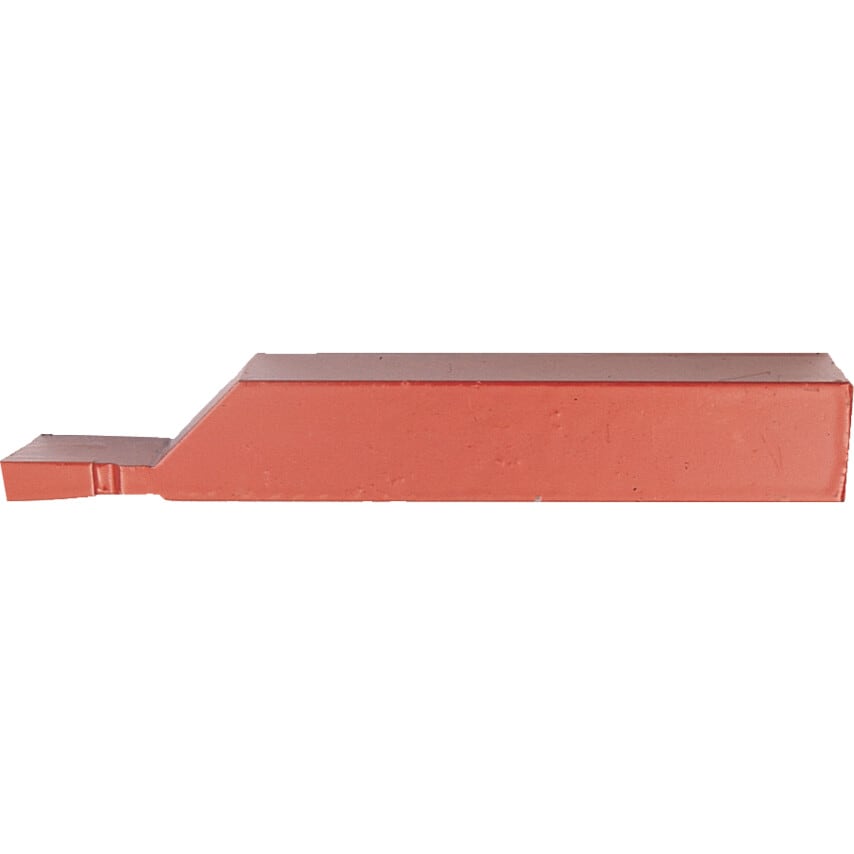

Kennedy Brazed Tip Turning & Boring Tools are manufactured in three standard grades. (All sizes are nominal). Manufactured to ISO DIN BHMA Standards.
P40: Roughing to heavy roughing of steel and steel castings using heavy feeds and low to medium cutting speeds. Also used under unfavourable conditions, particularly where intermittent cutting is involved. This grade is also suitable for planing operations and for machining manganese steel.
| ISO Cut | P40 |
| Clearance Angle | 6\u00b0 |
| Shank Width | 3/4in |
| Tool Number | 276 |
| Cutting Direction | Right Hand |
| Tool Type | Parting Off |
| ISO Category Grade | P |
| Standards Met | ISO DIN BHMA |
| Material Application | Steels |
| Tip Material | Carbide |
| Overall Length | 6-1/2in |
| Shank Height | 1-1/4in |
