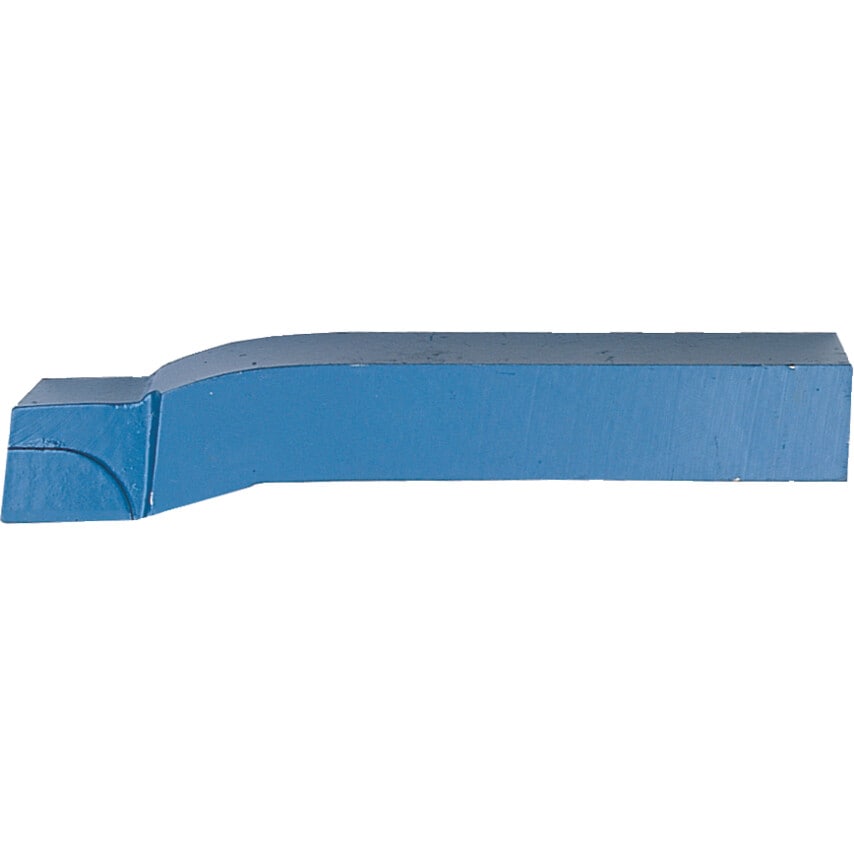

Kennedy Brazed Tip Turning & Boring Tools are manufactured in three standard grades. (All sizes are nominal). Manufactured to ISO DIN BHMA Standards.
P40: Roughing to heavy roughing of steel and steel castings using heavy feeds and low to medium cutting speeds. Also used under unfavourable conditions, particularly where intermittent cutting is involved. This grade is also suitable for planing operations and for machining manganese steel.
| Material Application | Steels |
| Shank Width | 3/4in |
| ISO Cut | P40 |
| Overall Length | 5-1/2in |
| Tip Material | Carbide |
| Tool Type | Cranked Knife Turning |
| Standards Met | ISO DIN BHMA |
| Cutting Direction | Right Hand |
| Tool Number | 2140 |

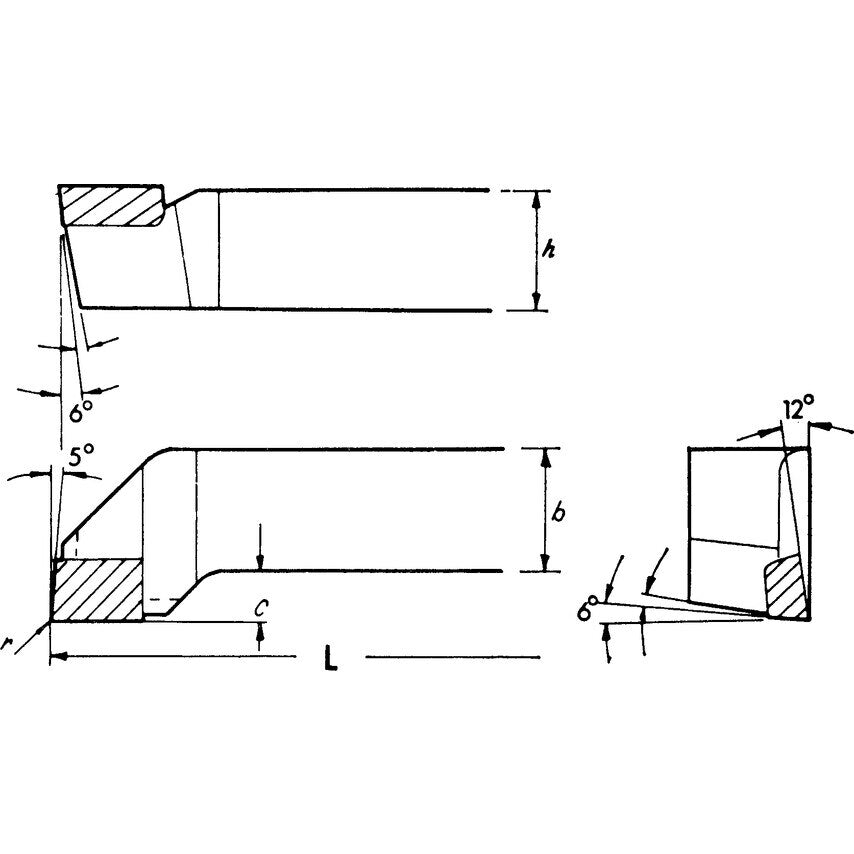

| Clearance Angle | 6\u00b0 |
| Lead Angle | 5\u00b0 |
| Shank Height | 3/4in |
| ISO Category Grade | P |
