Manufactured from top quality sintered steels. For use on a wide range of applications from roughing to finishing. Manufactured to BS1296:Part 3:1978.

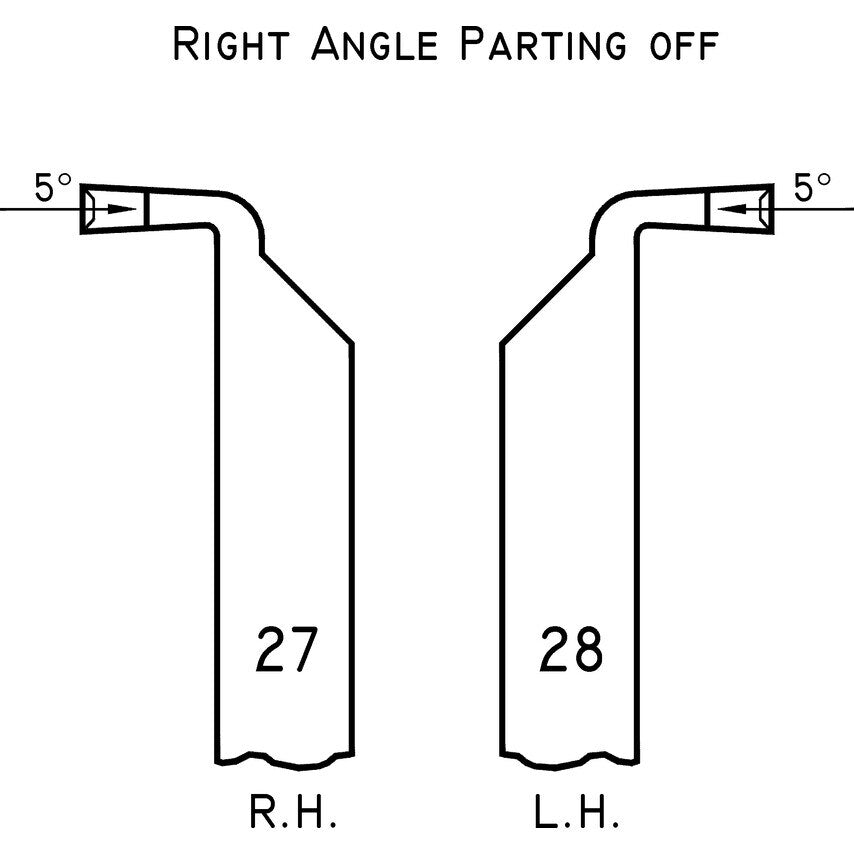

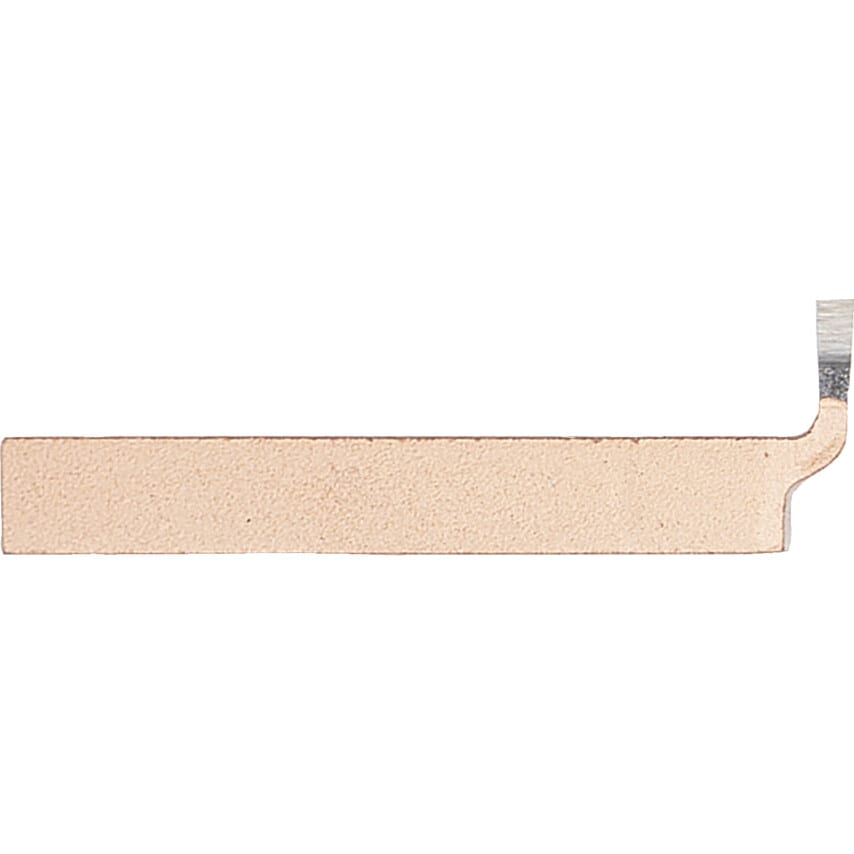

Right Angle Parting Off
| Material Grade | HSS |
| Cutting Direction | Right Hand |
| Side Clearance Angle | 1\u00b0 |
| Trail Angle | 1\u00b0 |
| Tip Material | HSS |
| Shank Height | 16.00mm |
| Tool Number | 27 |
| Standards Met | BS 1296 Part 3 |
| Overall Length | 110.00mm |
| Top Rake Angle | 5\u00b0 |
| Front Clearance Angle | 6\u00b0 |
| Shank Width | 16.00mm |
| Material Application | Alloy Steel | Aluminium | Brass | Bronze | Cast Iron | Steels |
| Approach Angle | 0\u00b0 |
| Tool Type | Right Angle Parting Off |
