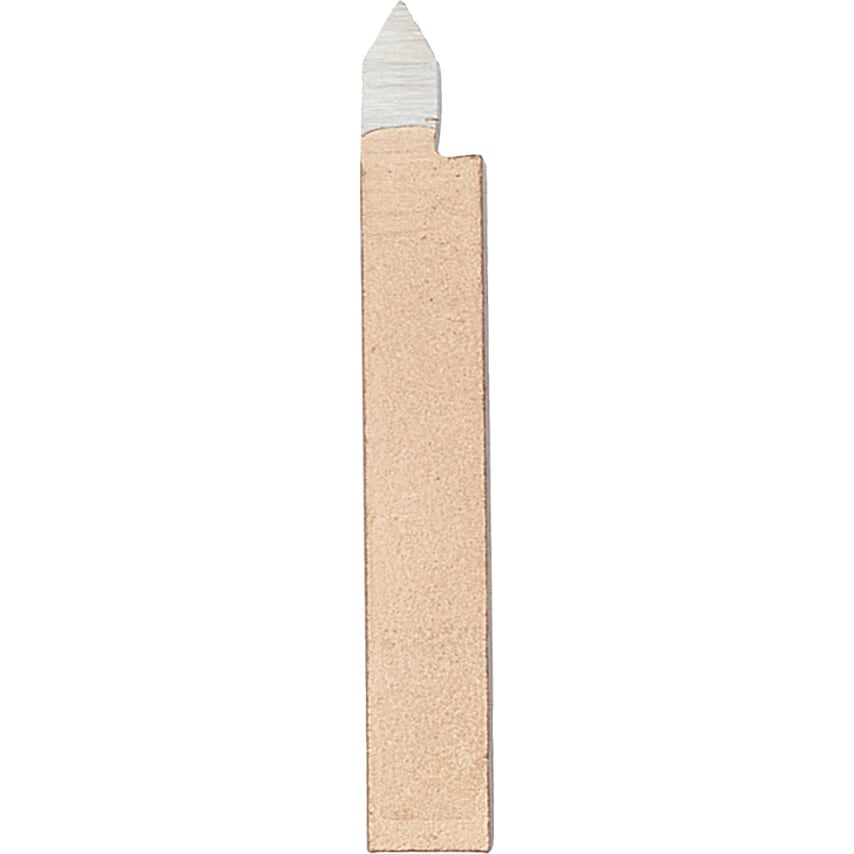

Manufactured from top quality sintered steels. For use on a wide range of applications from roughing to finishing. Manufactured to BS1296:Part 3:1978.

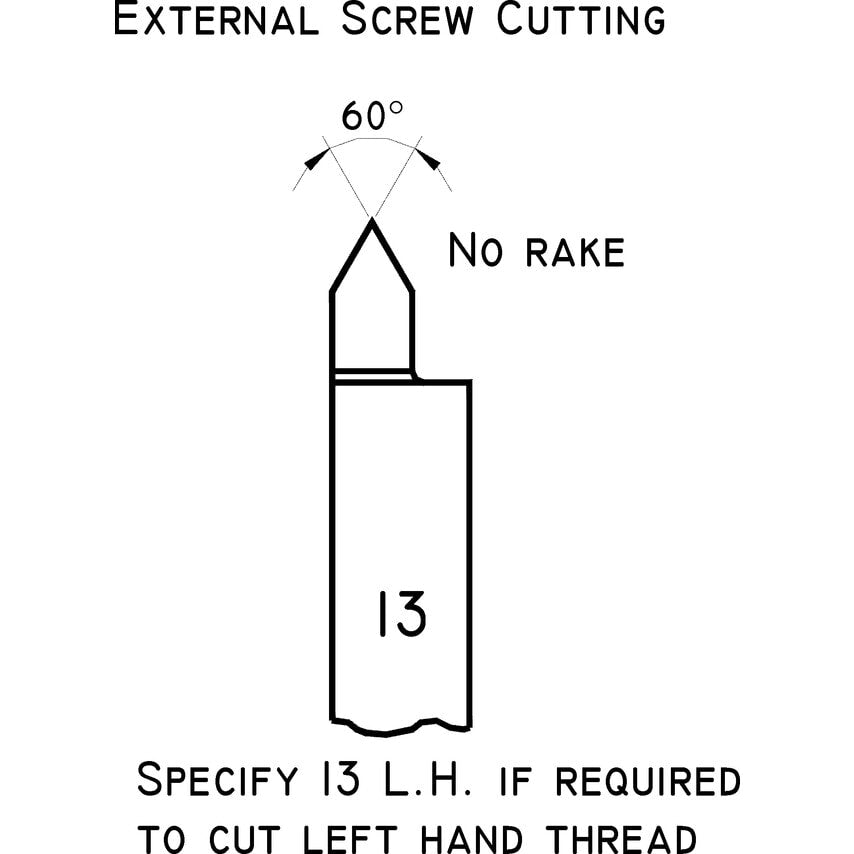

External Screw Cutting
Right Hand
| Top Rake Angle | 0\u00b0 |
| Trail Angle | 60\u00b0 |
| Tool Type | External Screw Cutting |
| Shank Width | 12.00mm |
| Standards Met | BS 1296 Part 3 |
| Shank Height | 12.00mm |
| Material Grade | HSS |
| Front Clearance Angle | 12\u00b0 |
| Cutting Direction | Right Hand |
| Tip Material | HSS |
| Approach Angle | 30\u00b0 |
| Tool Number | 13 |
| Material Application | Alloy Steel | Aluminium | Brass | Bronze | Cast Iron |
| Overall Length | 100.00mm |
| Side Clearance Angle | 60\u00b0 |
