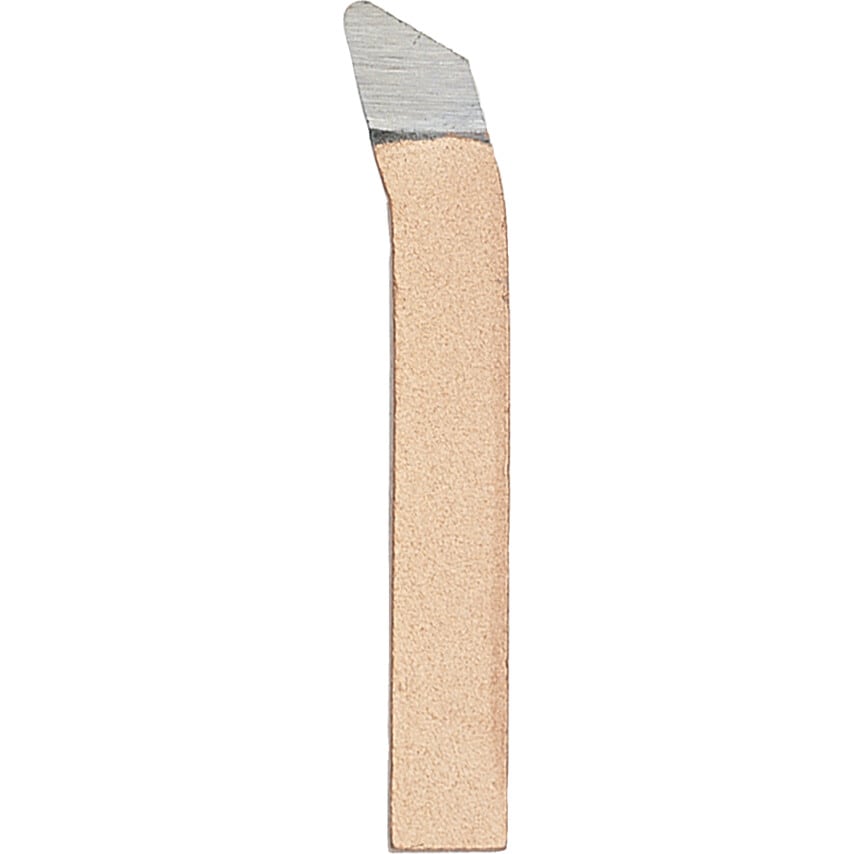

Manufactured from top quality sintered steels. For use on a wide range of applications from roughing to finishing. Manufactured to BS1296:Part 3:1978.

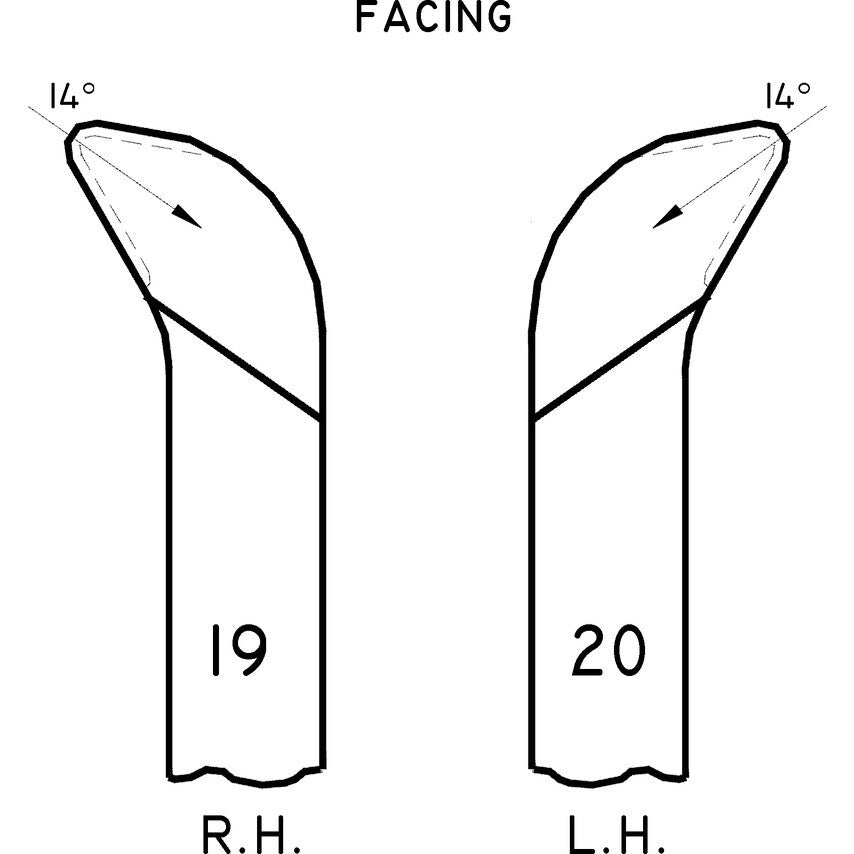

Facing
| Corner Radius Angle | 3-8\u00b0 |
| Tool Type | Facing |
| Side Clearance Angle | 6\u00b0 |
| Tool Number | 19 |
| Approach Angle | -30\u00b0 |
| Top Rake Angle | 14\u00b0 |
| Shank Width | 25.00mm |
| Shank Height | 25.00mm |
| Standards Met | BS 1296 Part 3 |
| Overall Length | 200.00mm |
| Trail Angle | 15\u00b0 |
| Tip Material | HSS |
| Front Clearance Angle | 6\u00b0 |
| Cutting Direction | Right Hand |
| Material Grade | HSS |
| Material Application | Alloy Steel | Aluminium | Brass | Bronze | Cast Iron | Steels | Tool |
