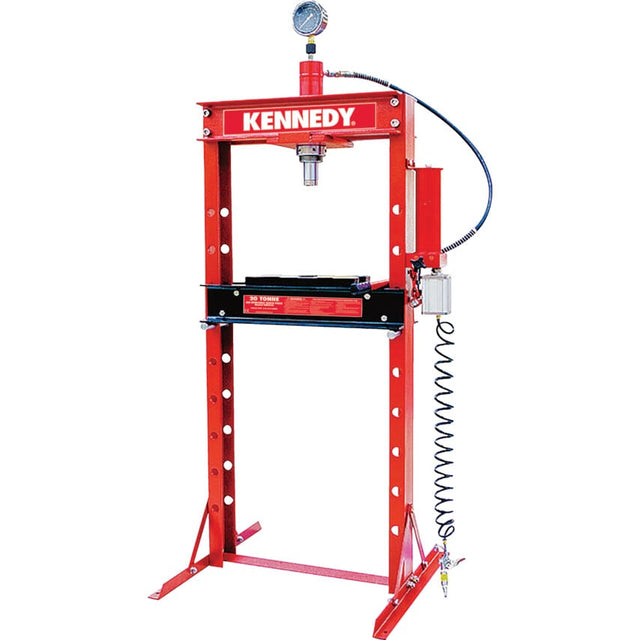

Ideal for pressing, bending and extruding. The Hydraulic pump can be manually operated or by compressed air connecting the airline supplied to an air supply line or direct to a compressor providing at least 8 - 9.5bar at 4cfm. Hydraulic gauge is included. Ideal for industrial and automotive applications.
20 Tonnes
Sturdy steel frame with end braces and wide feet for extra stability. Work bed height is adjustable in 8 increments of 120mm, allowing large work pieces to be worked on with maximum flexibility. Capacity: 20 tonnes.
| Overall Height | 1800mm |
| Min/Max Height of Ram to Table | 35 to 870mm |
| Capacity | 20 tonnes |
| Ram Stroke | 185mm |
| Product Type | Bench Press |
| Working Table Width | 545mm |
| Weight Each | 76kg |
| Table Aperture | 105mm |
| Additional Features | Automotive Application | Hydraulic Guage Included | Industrial & Automotive Application |
| Overall Width | 770mm |
| Work Bed Adjustable Height | 8 x 120mm |
| Base Size (W x D) | 750 x 700mm |
| MFR Part No. | TY20002 |
