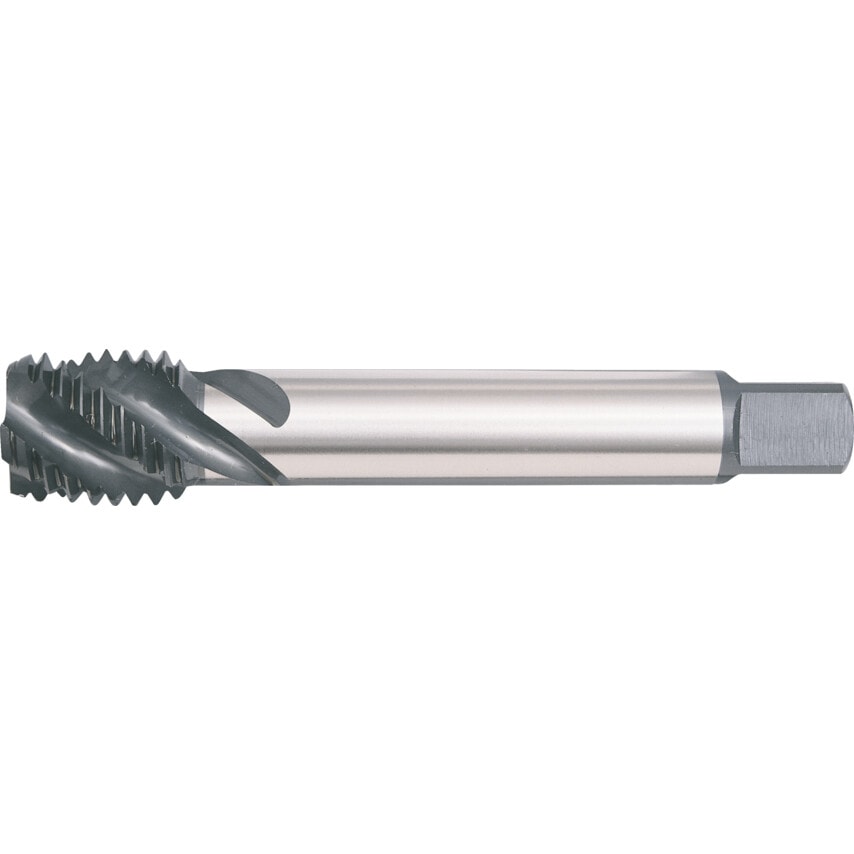

With high helix (45), right hand spiral flutes, designed to pull swarf towards the shank of the tap. Most suitable for blind-hole tapping. Manufactured to BS 949 : Part 4 : 1990 and ISO 529 : 1975. Tolerance 2B.
Oxidised finish (black): special heat treated finish gives resistance to rust and reduces metal to metal friction. Combined with a porous surface that gives optimum lubricant retention, work-generated heat is minimised, giving prolonged cutting edge life. Use on higher carbon steels cast materials high silicon aluminiums.
| Finish/Coating | Steam Tempered |
| Tap Type | Machine Tap | Spiral Flute |
| Number of Flutes | 3 |
| Material Application | Hardened Steel |
| Thread Direction | Right Hnd |
| Helix Angle | 45\u00b0 |
| Overall Length | 104mm |
| Thread Size | 3/4in |
| Teeth per Inch | 16 |
| Thread Length | 37mm |
| Material | Vanadium High Speed Steel |
| Class of Fit | 2B |
| Coolant Delivery | External |
| Dimensions Standard | BS 949 Part 4 |
| Square Width | 11.2mm |
| Thread Standard | UNF |
| Shank Diameter | 14mm |
