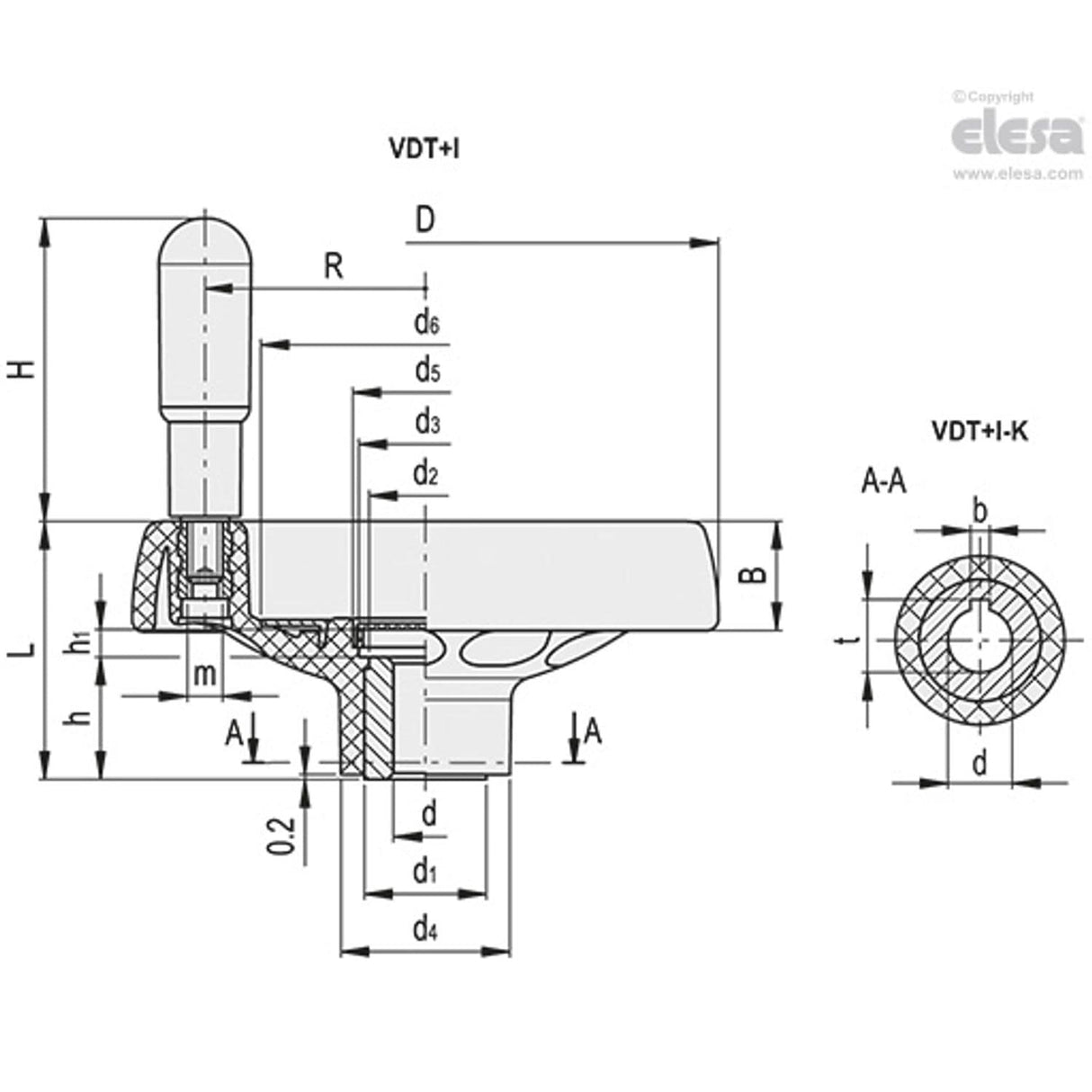

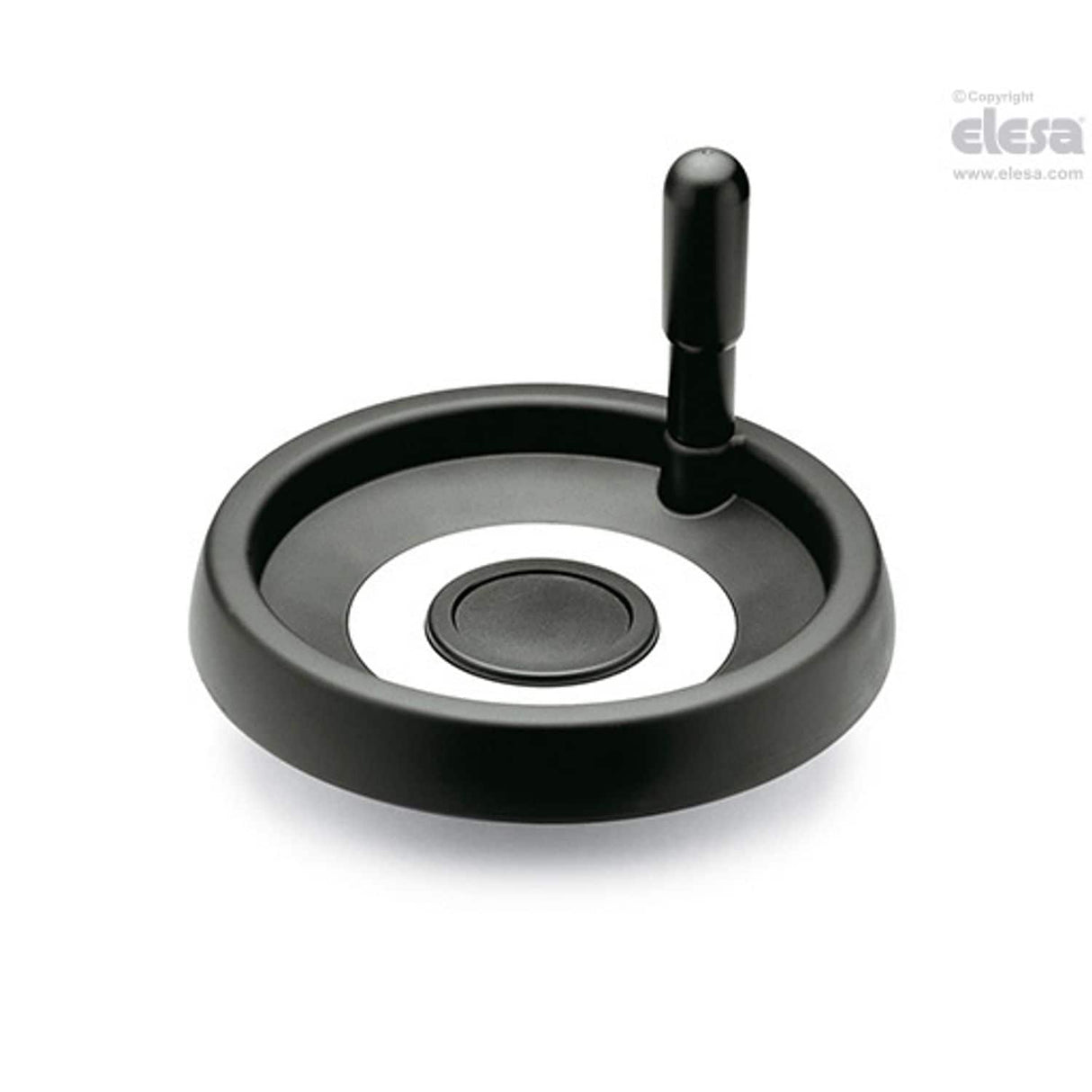

VDT. Solid handwheels, Technopolymer, Revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| d5 | 52 |
| MFR Part No. | VDT.200+I A-20-K |
| H | 90 |
| d3 | 50 |
| d2 | 38 |
| h | 31 |
| C# | 600Nm |
| t | 22.8 |
| b | 6 |
| L | 68 |
| D | 200 |
| d1 | 40 |
| d4 | 51 |
| Diameter | 200mm |
| m | M10 |
| d(H9) | 20 |
| L# | 35J |
| h1 | 9 |
| R | 78 |
| d6 | 110 |
| Weight | 747g |
| B | 30 |
