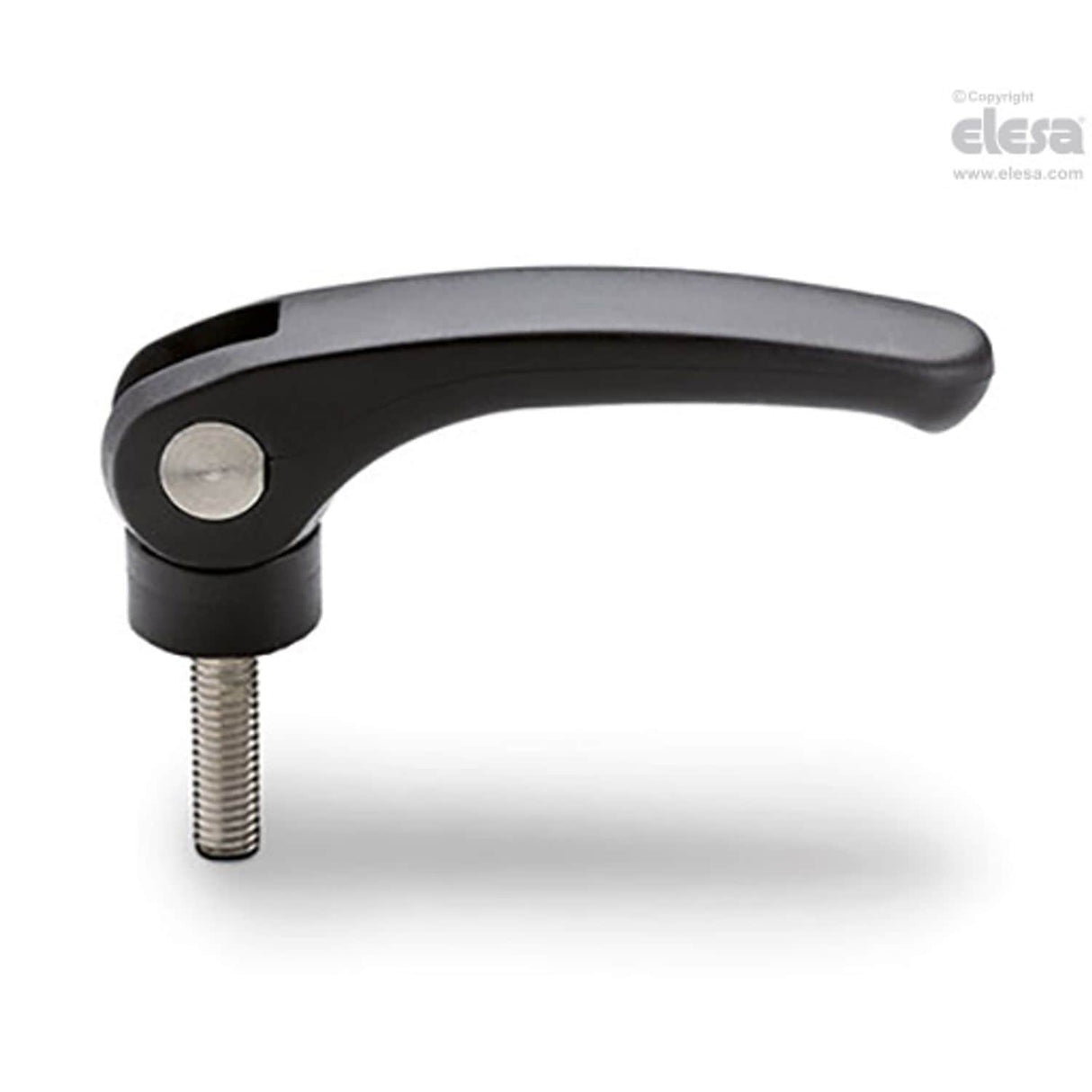

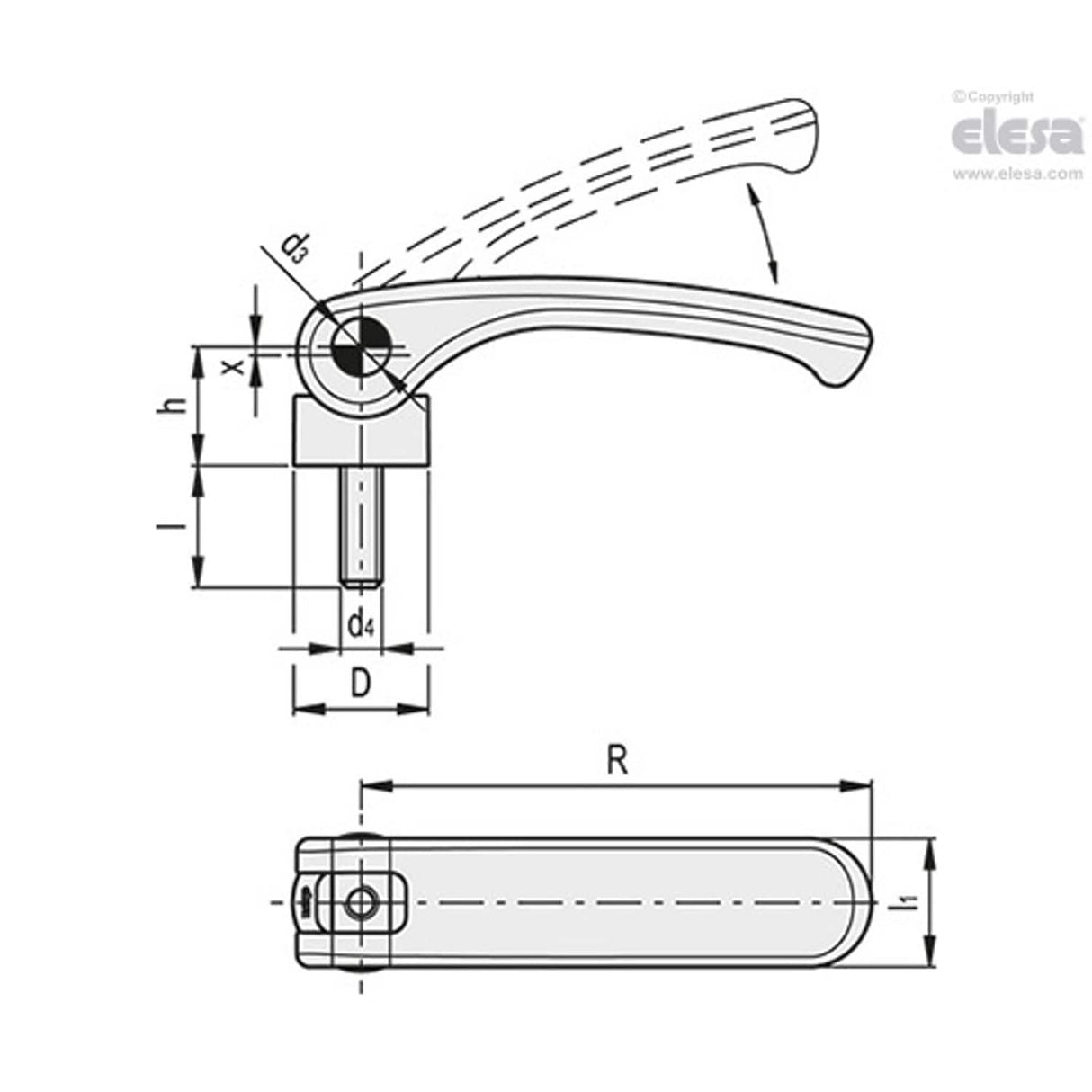

LAC. Cam levers, Technopolymer, Without adjustable ring-nut, rotating pin with AISI 303 stainless steel threaded stud For product drawing and dimensions refer to pdf Item data sheet.
| d4 | M6 |
| x | 0.5 |
| D | 17.5 |
| R | 44 |
| Diameter | 17.5mm |
| d3 | 9 |
| l | 30 |
| h | 18 |
| MFR Part No. | LAC.44-SST-p-M6x30 |
| l1 | 18 |
