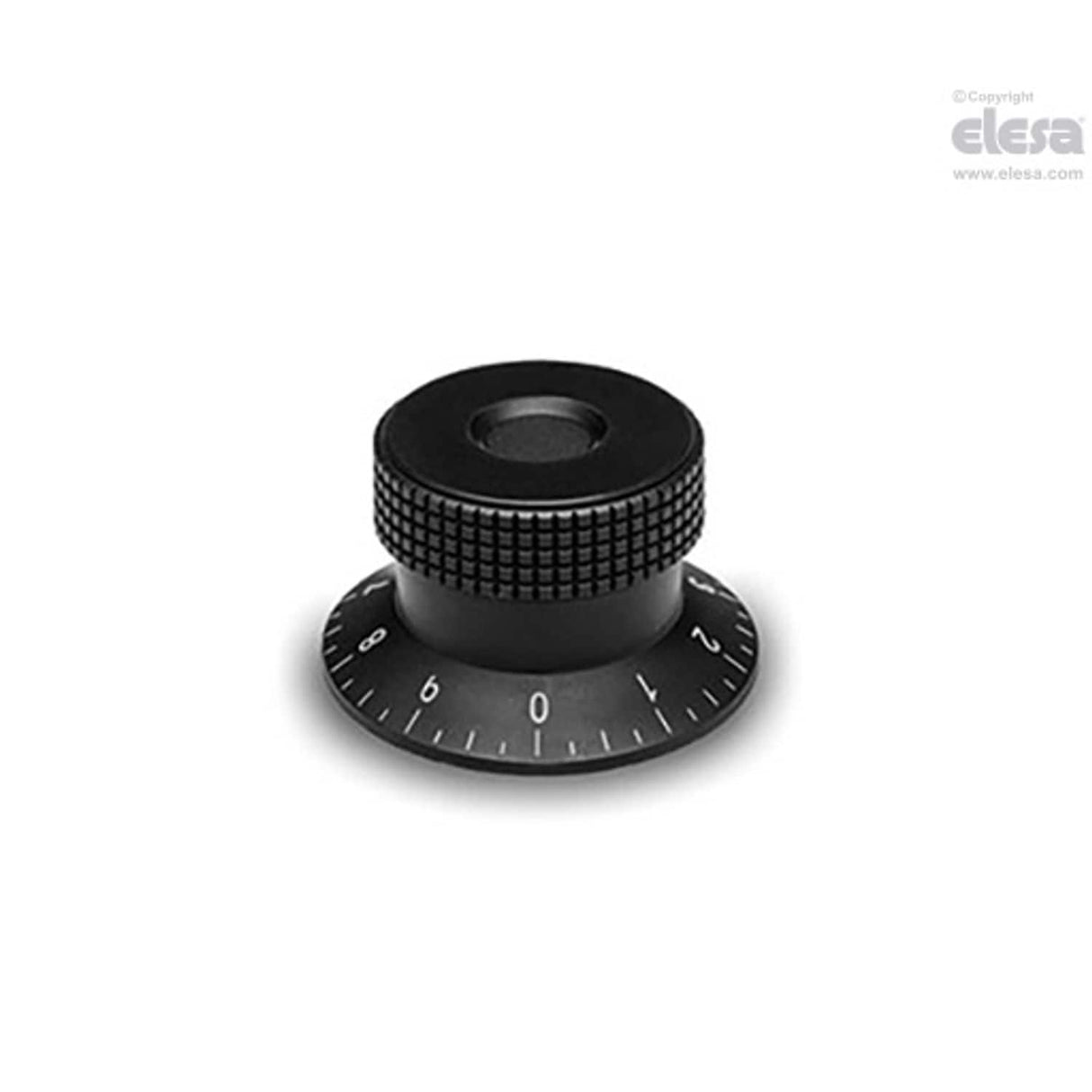

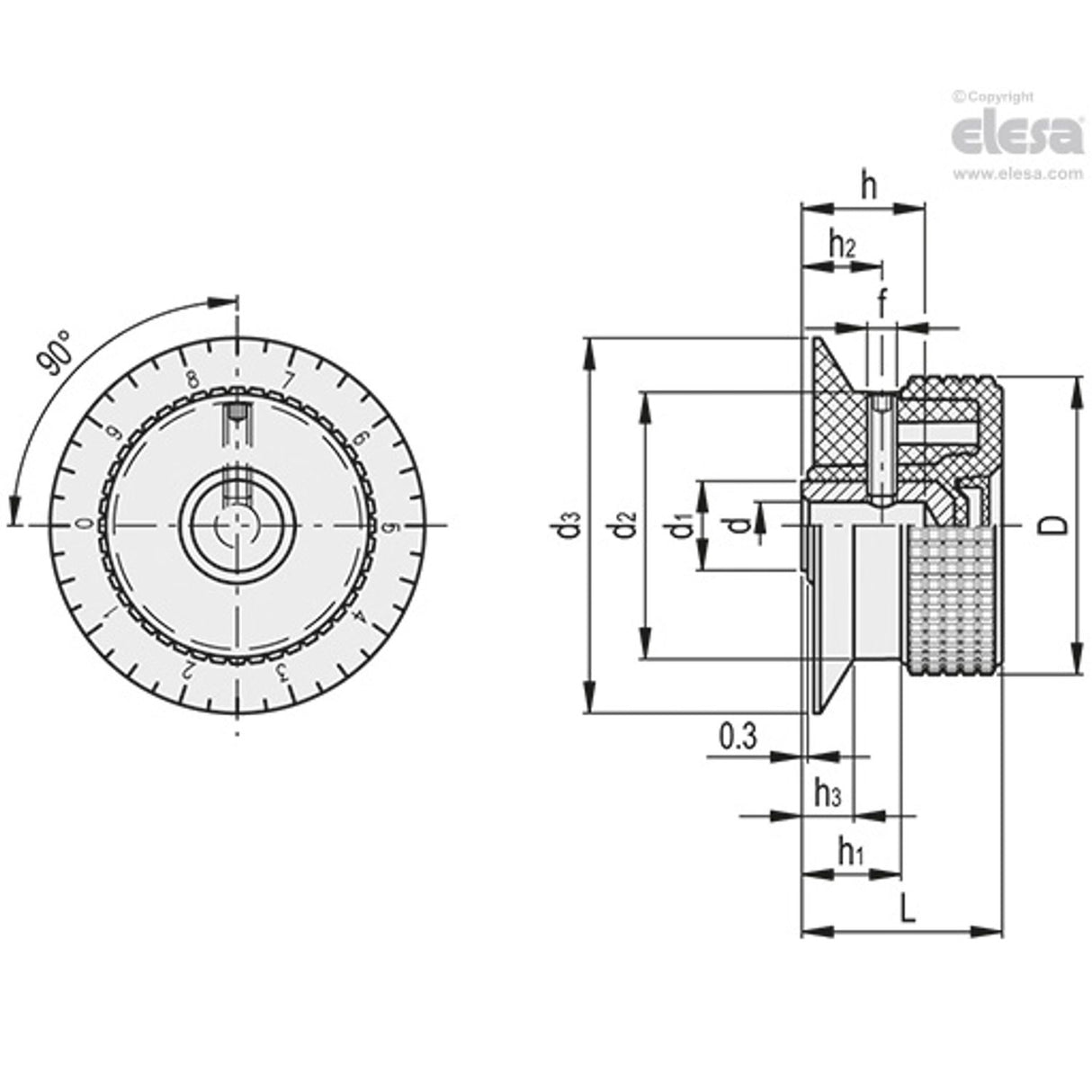

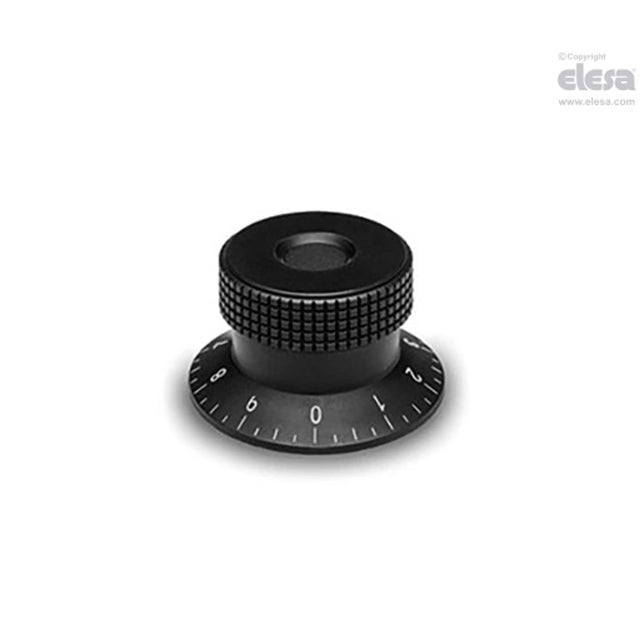

MBR Knurled control knobs, with collar or flange, technopolymer, Flange with graduation For product drawing and dimensions refer to pdf Item data sheet.
| d1 | 12 |
| d(H9) | 6 |
| MFR Part No. | MBR.30 B-6+FGS-C9 |
| h | 14 |
| d3 | 42 |
| Weight | 25g |
| h2 | 8.5 |
| f | M4 |
| Colour | C9 - RAL 9005 |
| h3 | 5 |
| h1 | 10.5 |
| Diameter | 30mm |
| D | 30 |
| d2 | 26 |
| L | 24 |
