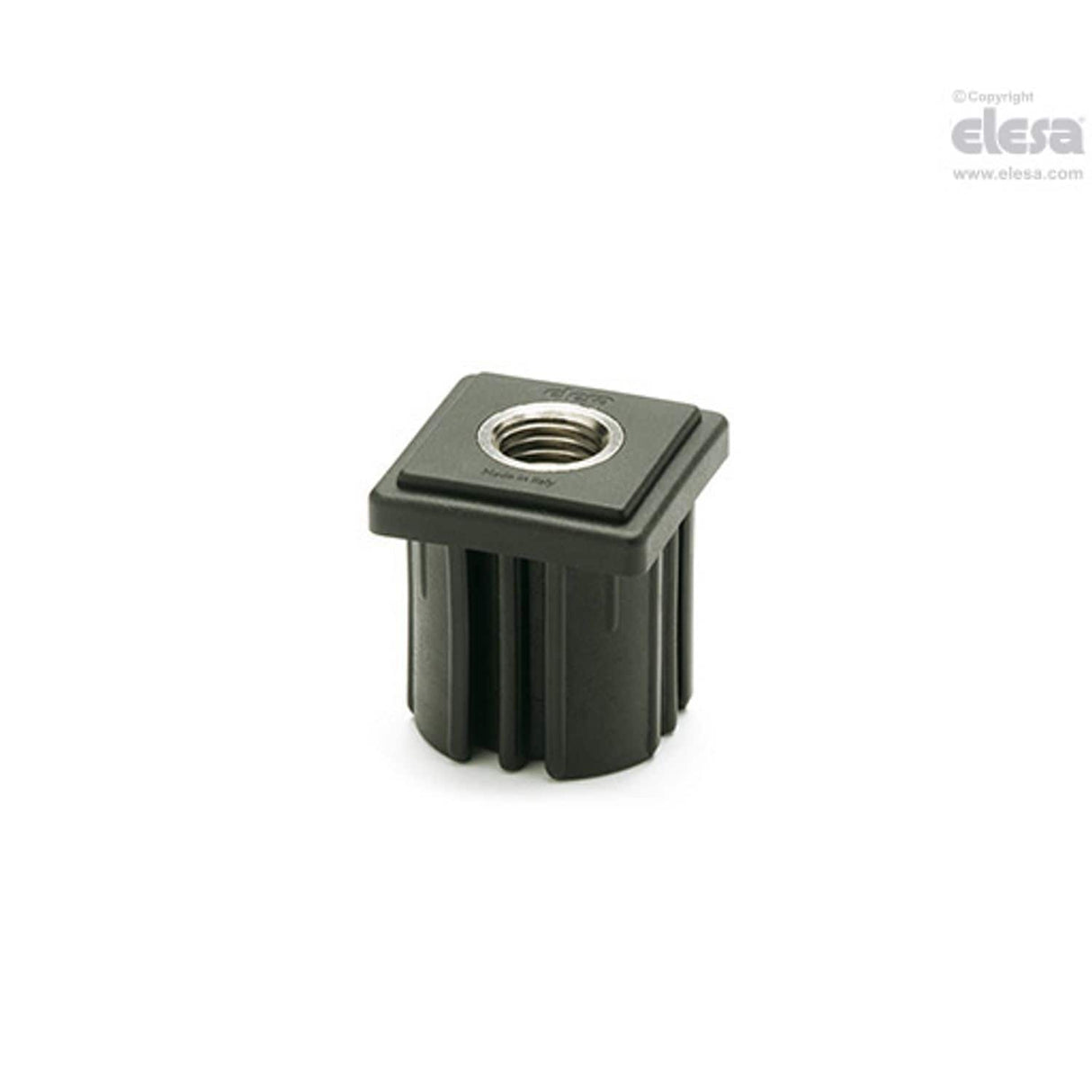

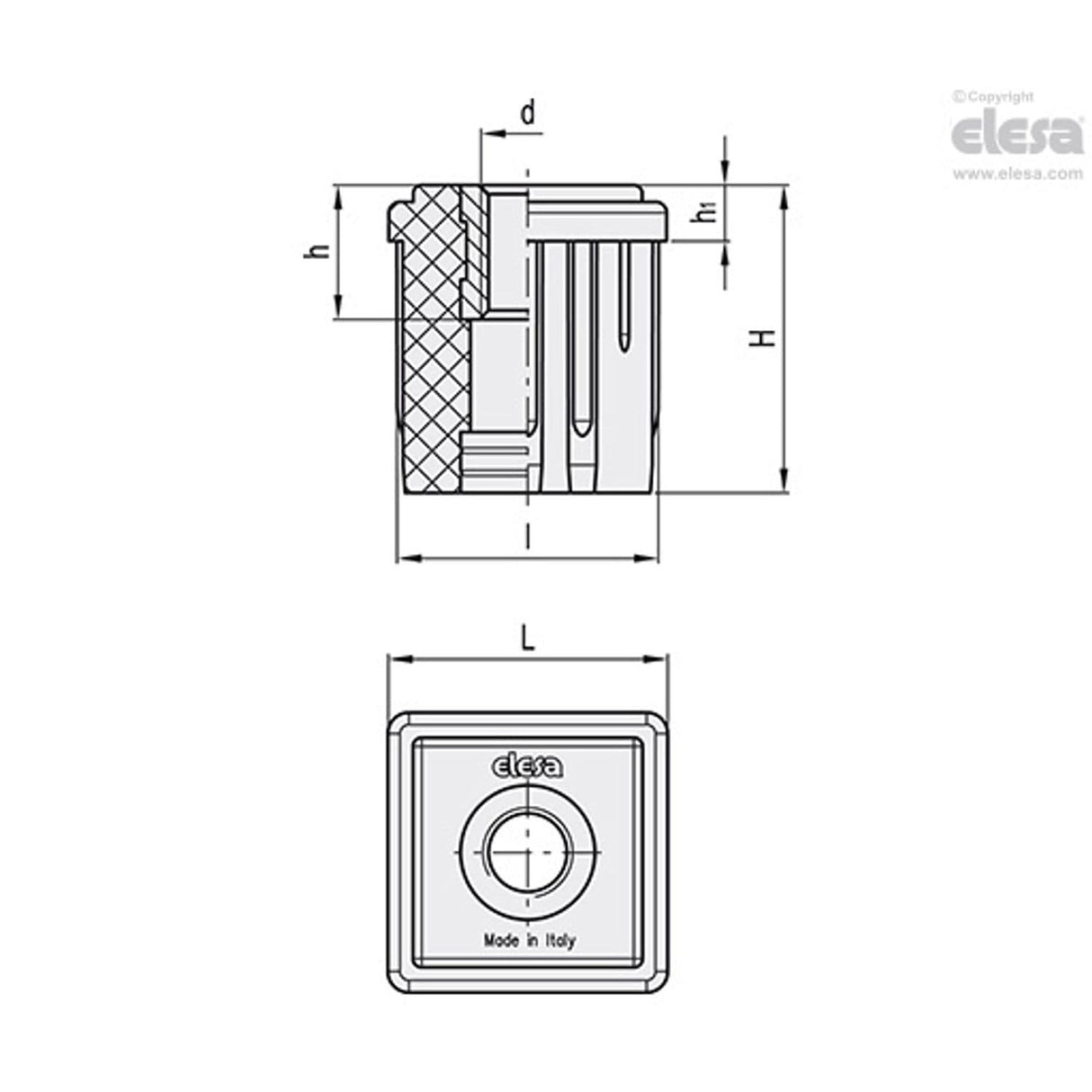

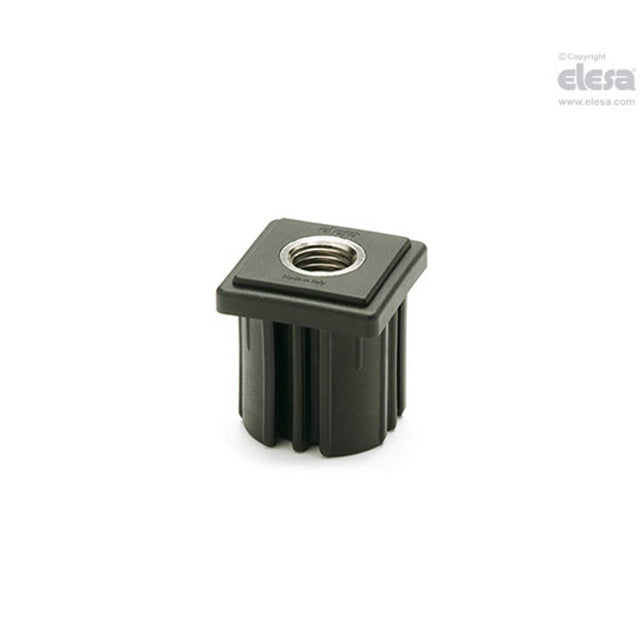

ND.Q Square end-caps for tubes, heavy loads, technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | ND.Q-50x2-M20 |
| d | M20 |
| Tube Thickness | 2 |
| L | 50 |
| External Diameter | 50 |
| Inner Diameter | 46 |
| l | 46.5 |
| Max. Static Load | 20000N |
| Weight | 128g |
| h1 | 10 |
| H | 55 |
| h | 30 |
