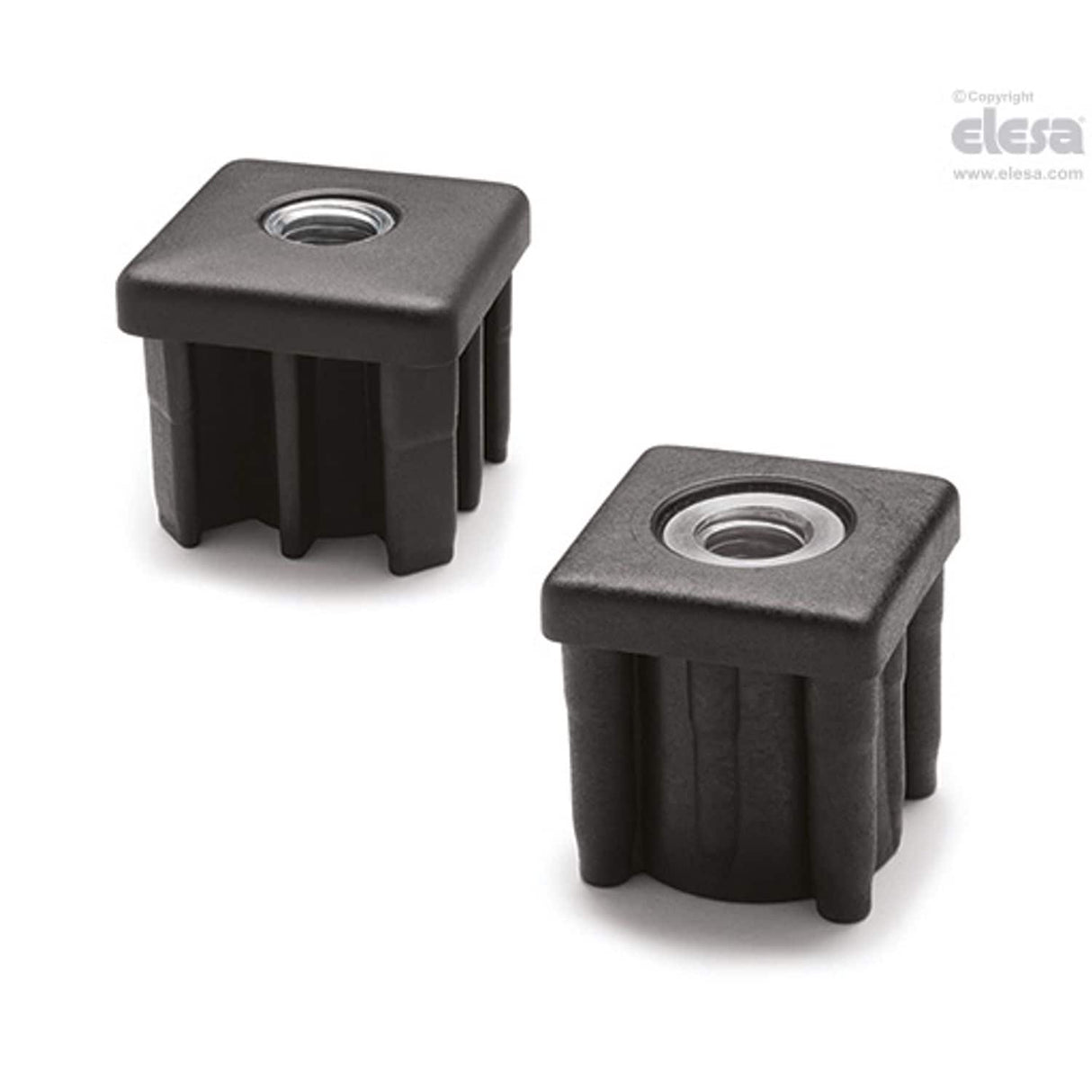

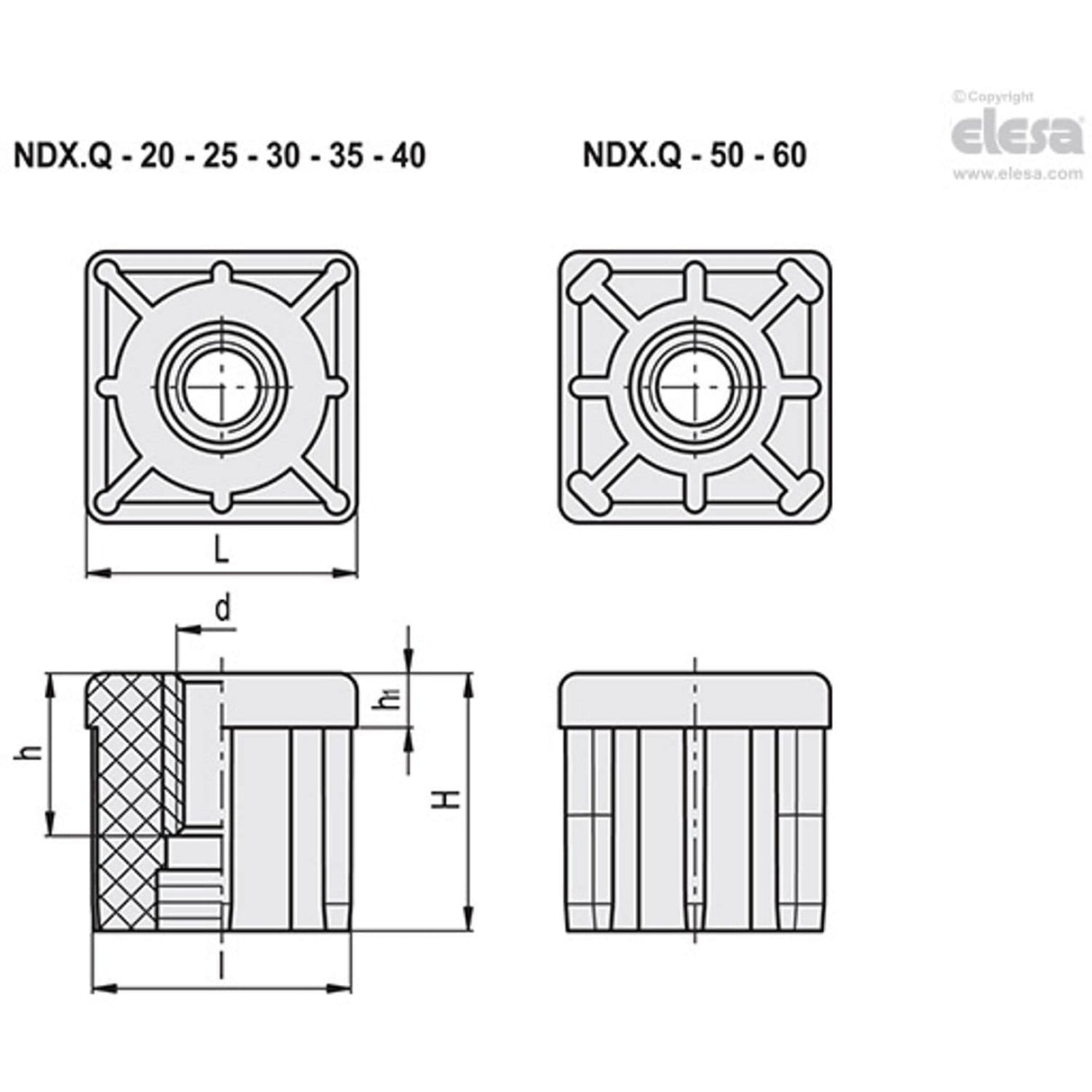

NDX.Q Square end-caps for tubes, For product drawing and dimensions refer to pdf Item data sheet.
| h1 | 10 |
| Tube Thickness | 3 |
| L | 50 |
| d | M12 |
| Max. Static Load | 6000N |
| MFR Part No. | NDX.Q-50x3.0-M12 |
| Inner Diameter | 44 |
| External Diameter | 50 |
| Weight | 75g |
| h | 10 |
| l | 44 |
| H | 45 |
