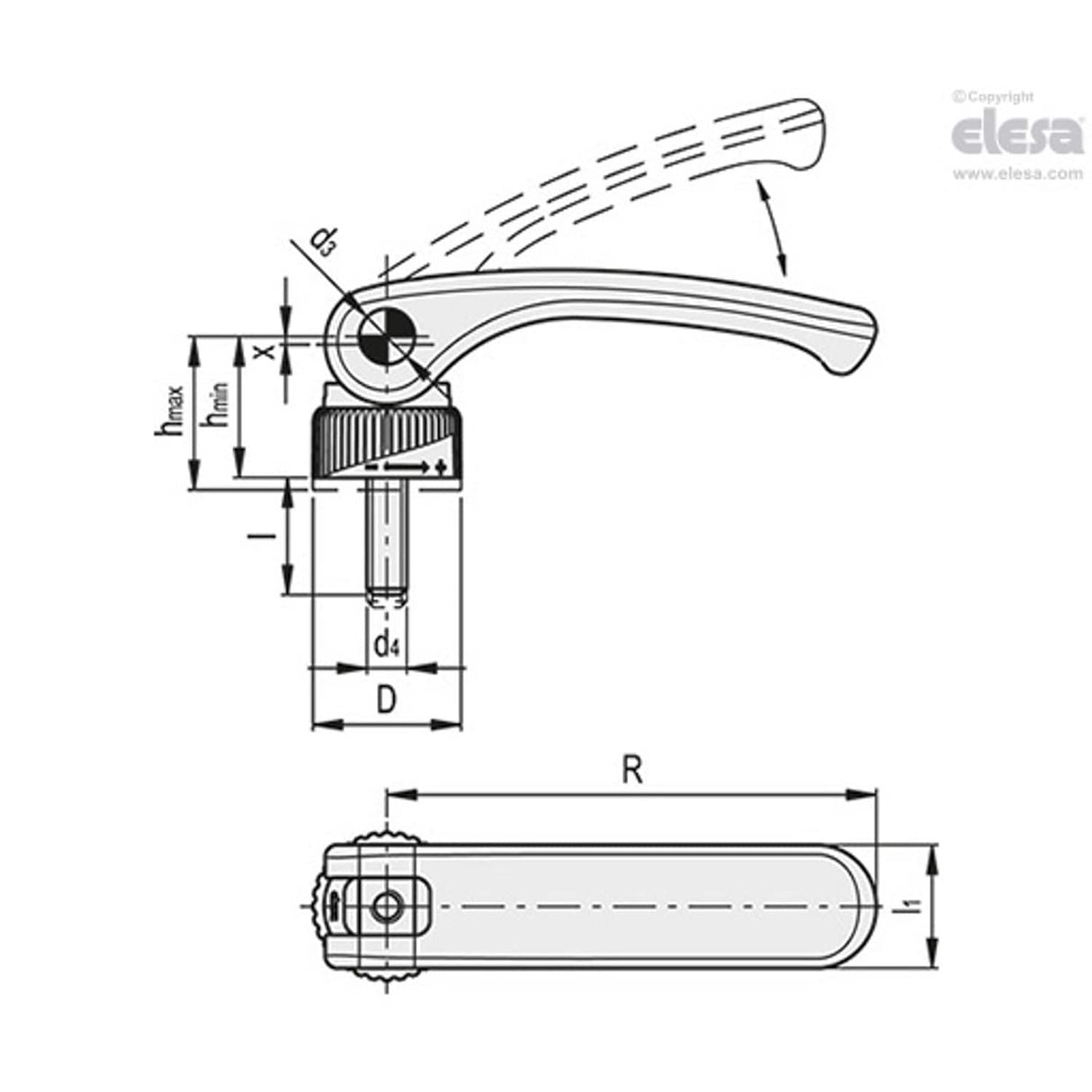

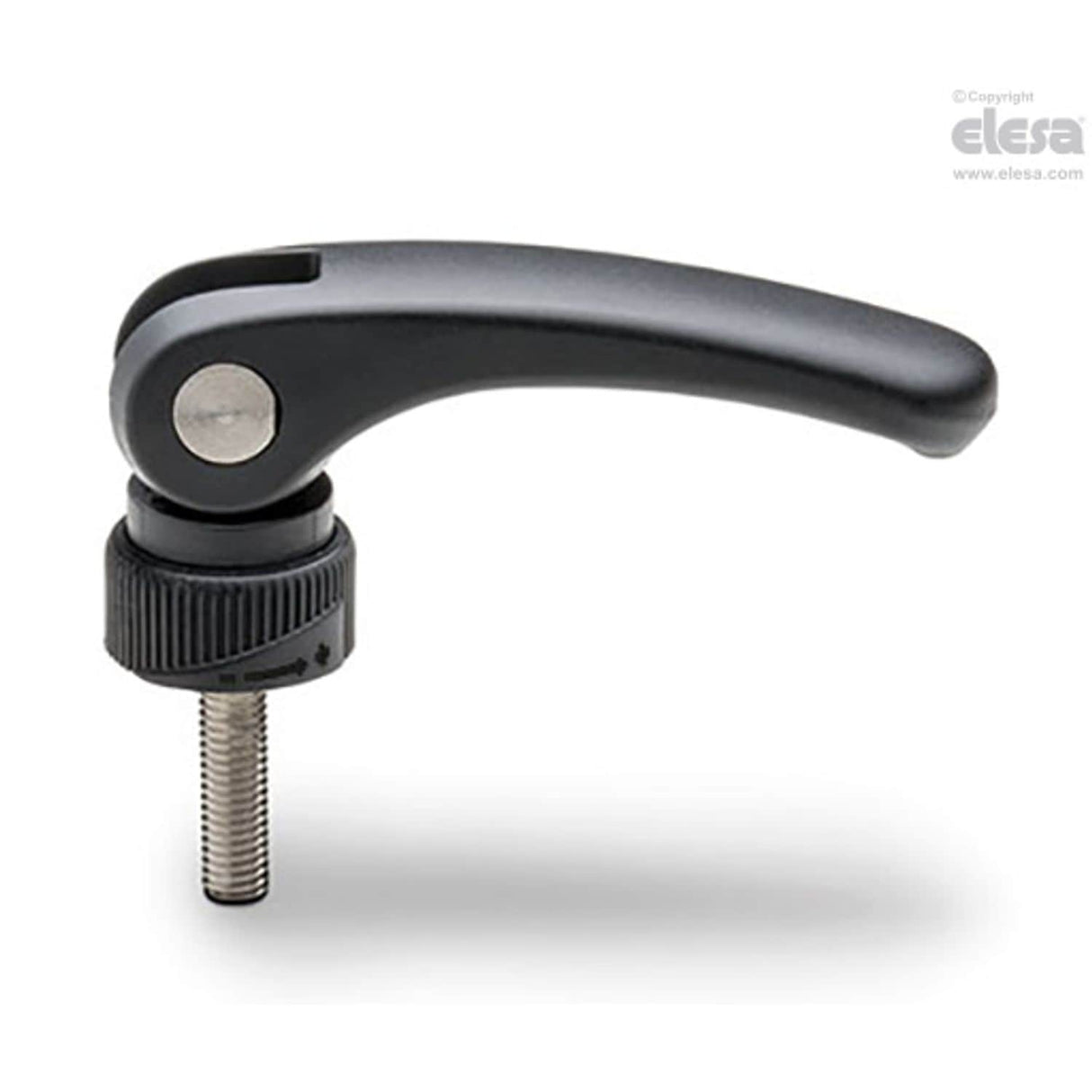

LAC. Cam levers, Technopolymer, With adjustable ring-nut, rotating pin with threaded stud in AISI 303 stainless steel For product drawing and dimensions refer to pdf Item data sheet.
| h Max | 24 |
| d3 | 9 |
| R | 63 |
| l | 30 |
| h Min | 22.5 |
| x | 0.75 |
| Diameter | 22mm |
| l1 | 18 |
| d4 | M6 |
| D | 22 |
| MFR Part No. | LAC.63-SST-p-M6x30-R |
