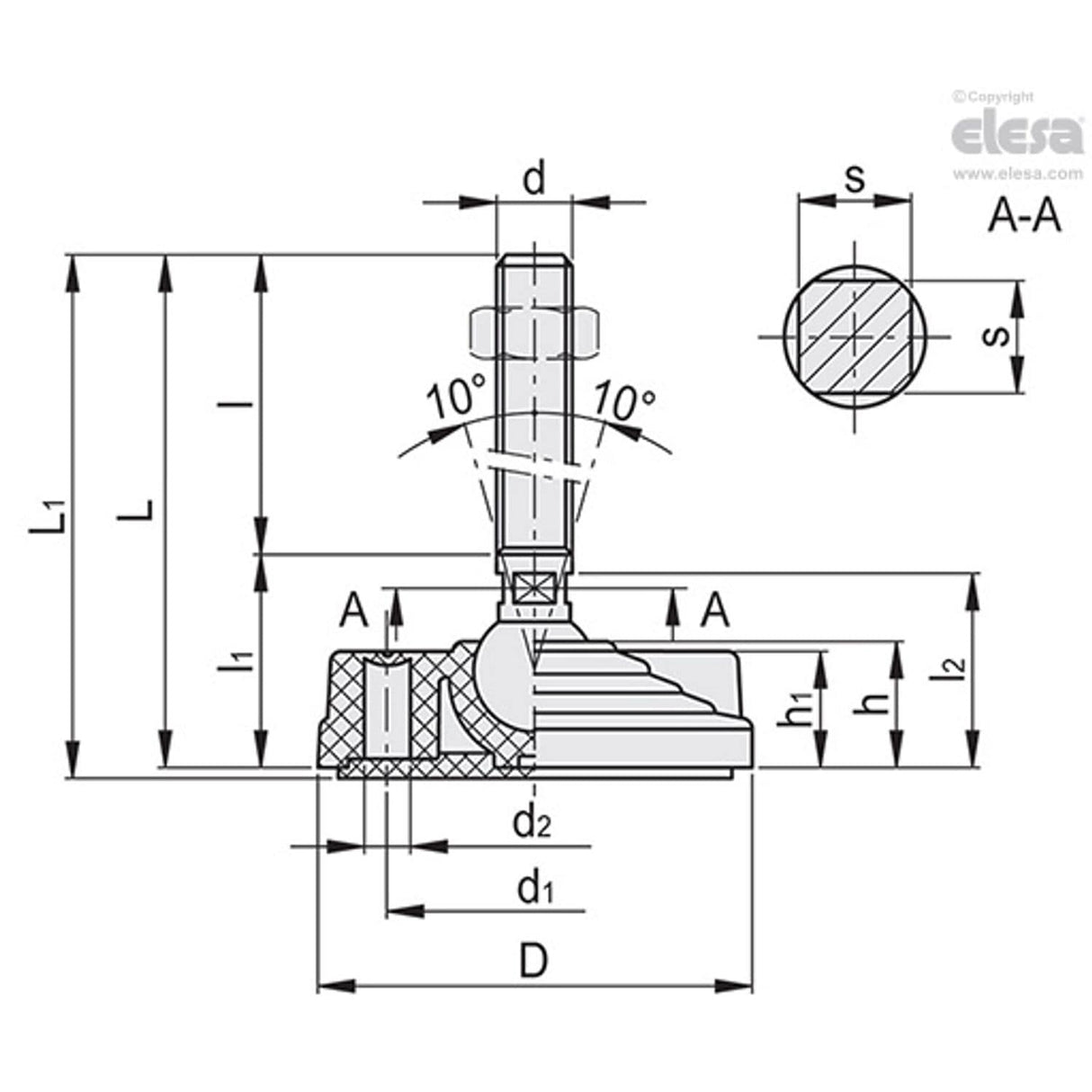

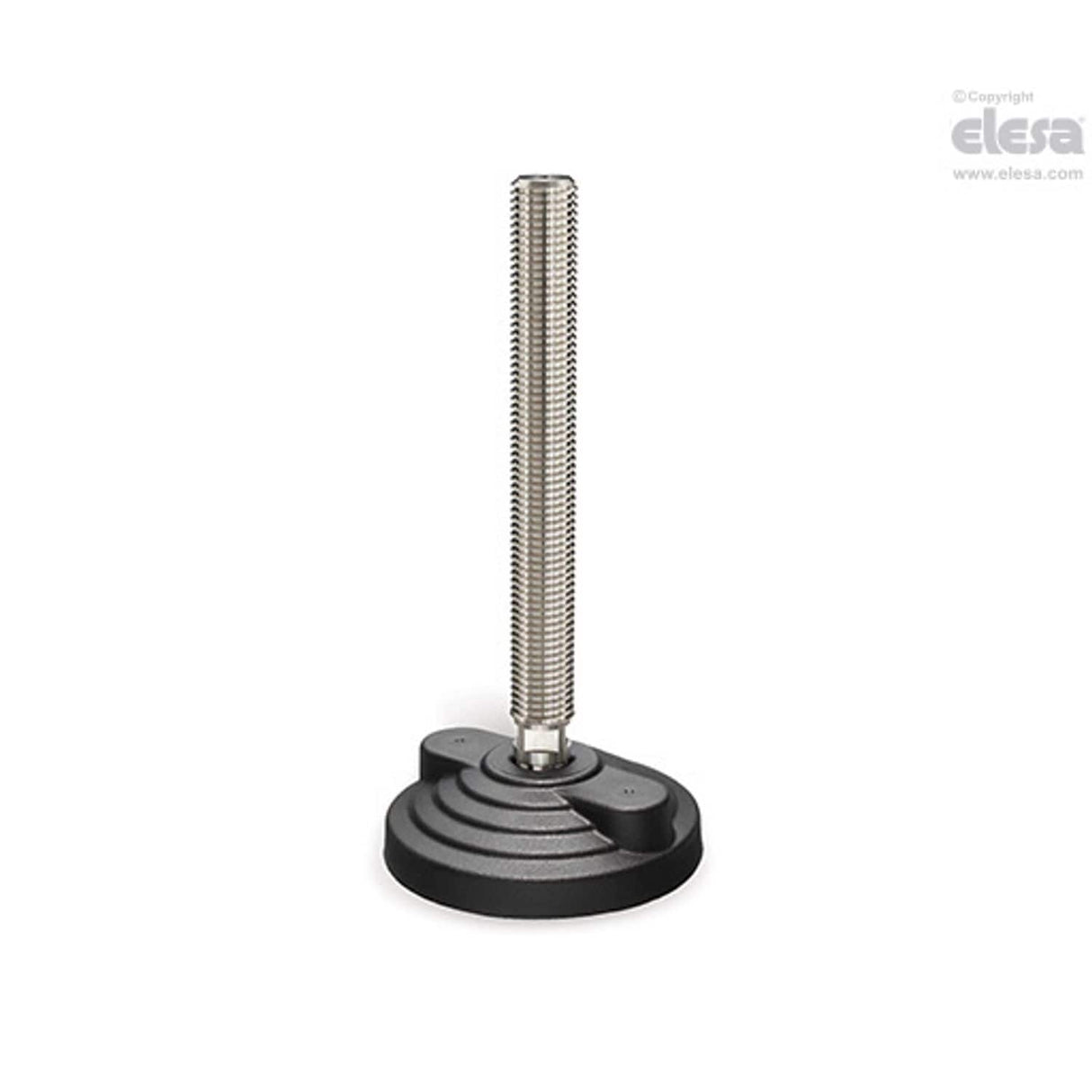

LVQ.F-SST Levelling feet for ground mounting, Technopolymer base, stainless steel stem For product drawing and dimensions refer to pdf Item data sheet.
| l1 | 39 |
| h | 24 |
| L | 249 |
| h1 | 23 |
| d | M20 |
| D | 100 |
| L1 | 252 |
| MFR Part No. | LVQ.F-100-14-AS-SST-M20x210 |
| s | 15 |
| Diameter | 100mm |
| d1 | 70 |
| d2 | 12.5 |
| l2 | 36.5 |
| l | 210 |
