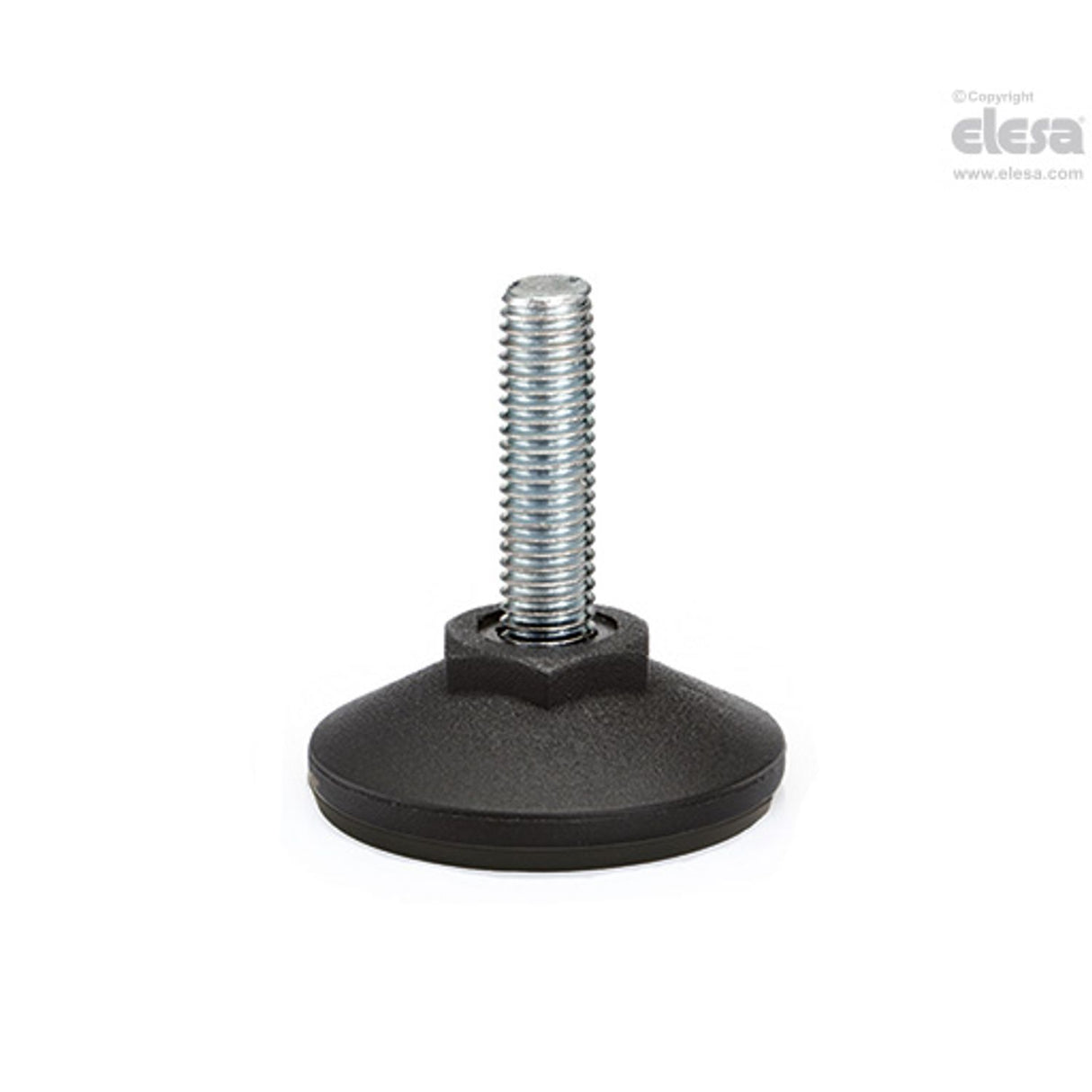

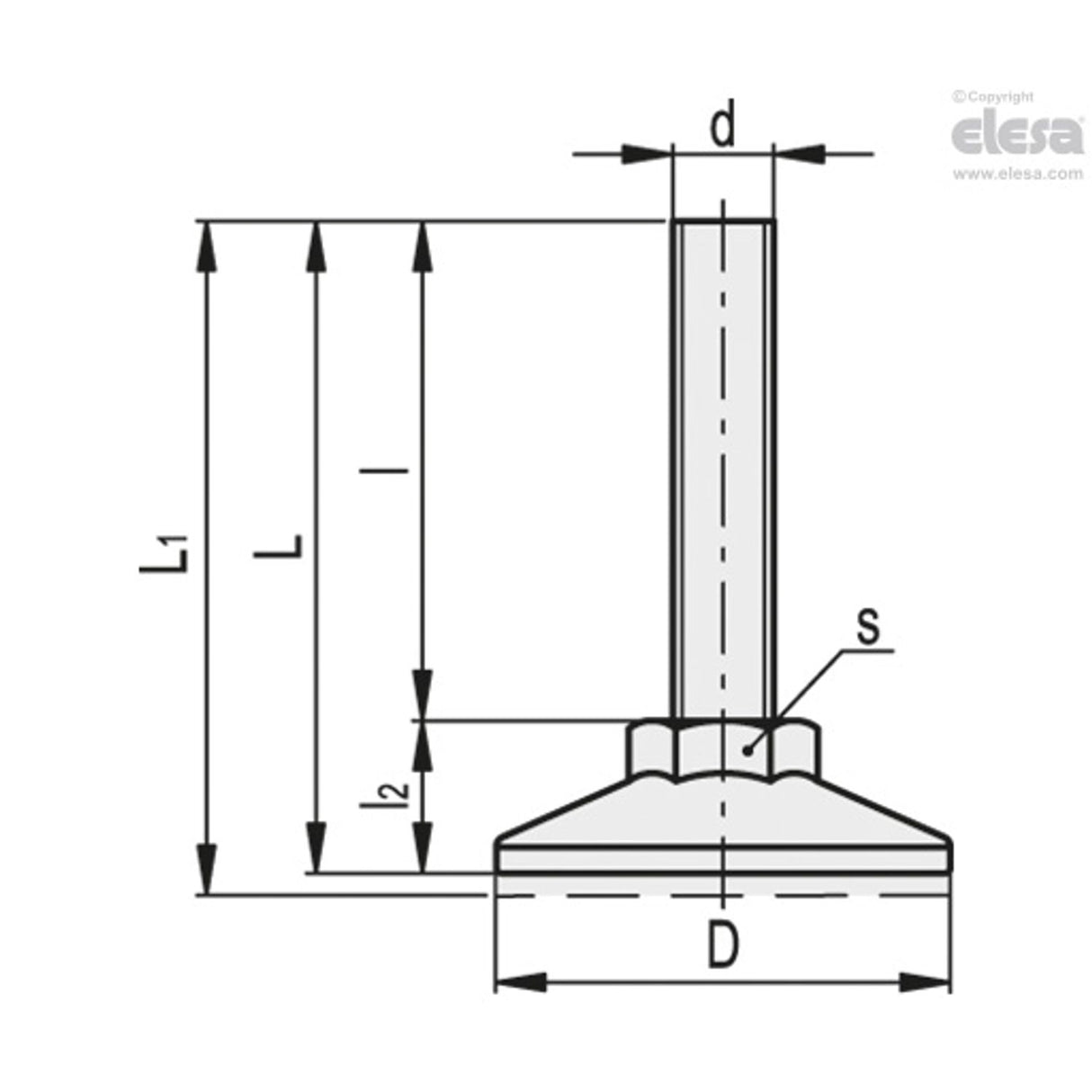

LX Levelling feet, Technopolymer base, steel stem, Zinc-plated steel, base with no-slip disk For product drawing and dimensions refer to pdf Item data sheet.
| d | M8 |
| Weight | 31g |
| s | 17 |
| l2 | 13 |
| Max. Static Load | 2500N |
| l | 69.5 |
| L1 | 83.5 |
| D | 40 |
| MFR Part No. | LX.40-SW17-AS-M8x70 |
| L | 82.5 |
| Diameter | 40mm |
