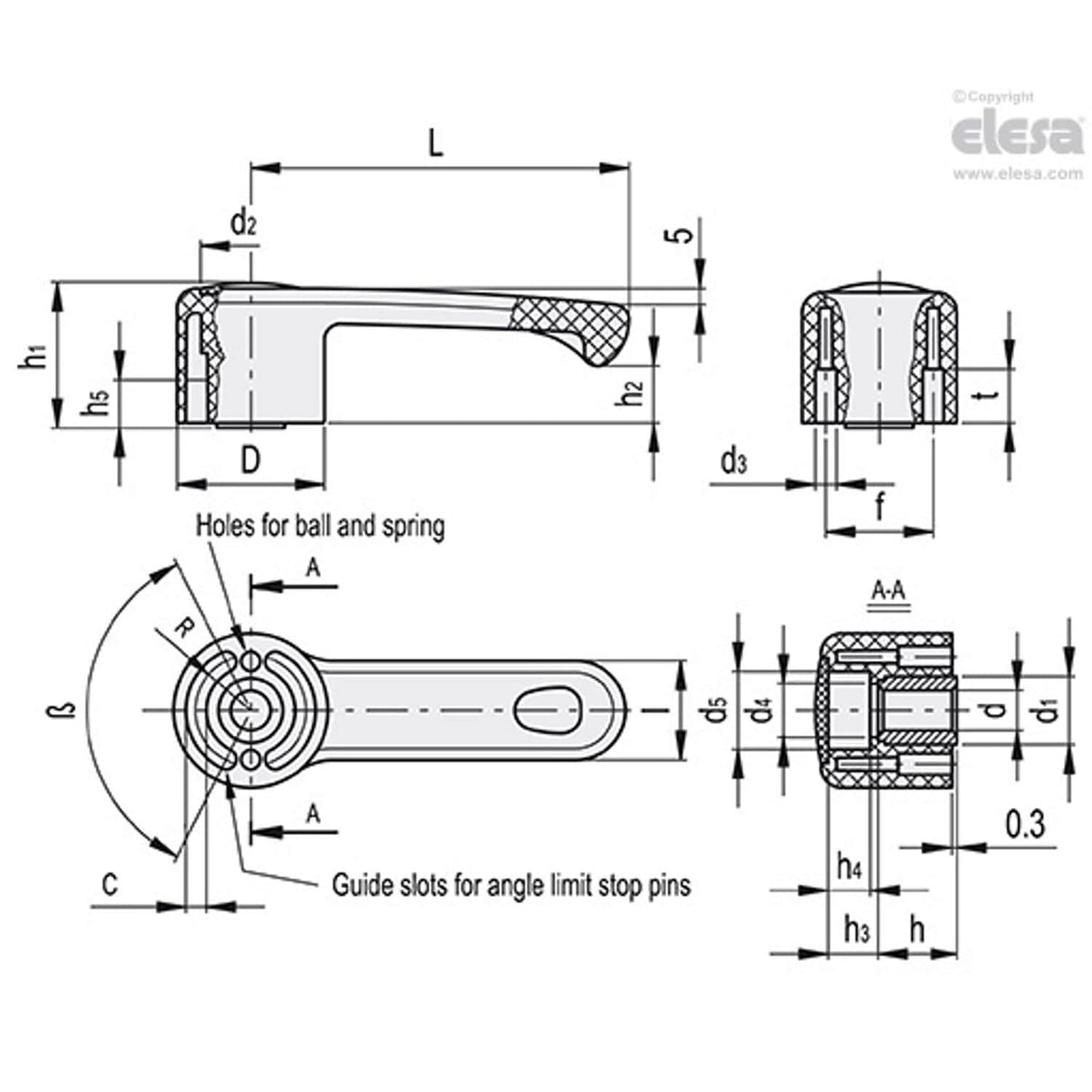

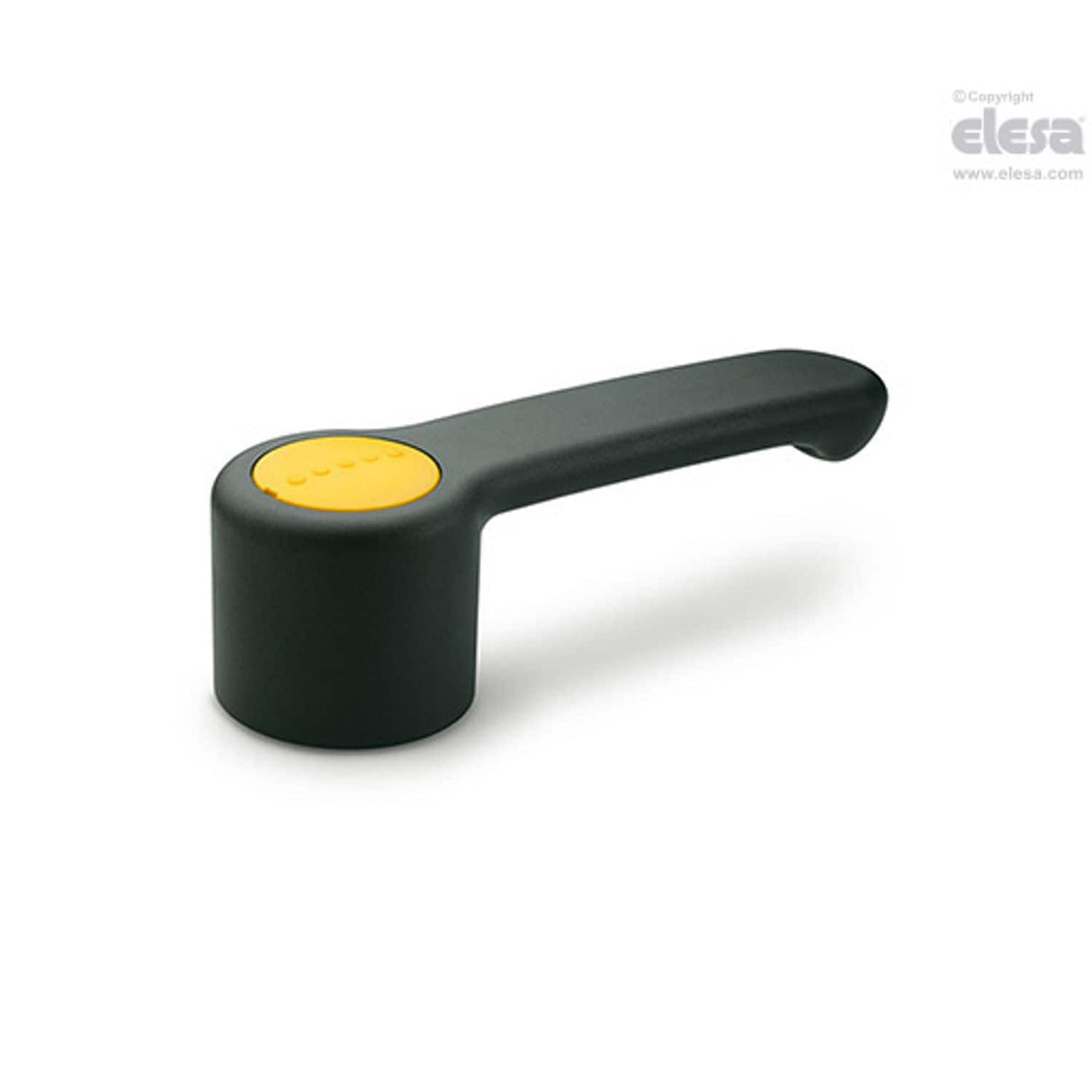

ELCR. Control lever, arranged for clicking operation, technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| h2 | 18.5 |
| d3 | 6 |
| Weight | 135g |
| D | 46 |
| d5 | 25.5 |
| h1 | 44 |
| c | 6.5 |
| l | 29 |
| f | 32 |
| h4 | 17 |
| d2 | 31.5 |
| L | 118 |
| h5 | 10 |
| Colour | C6 - RAL 3000 |
| Diameter | 46mm |
| t | 15.5 |
| d1 | 22 |
| h | 22 |
| d(H7) | 12 |
| R | 17.5 |
| MFR Part No. | ELCR.118 A-12-C6 |
| h3 | 19 |
| d4 | 17 |
