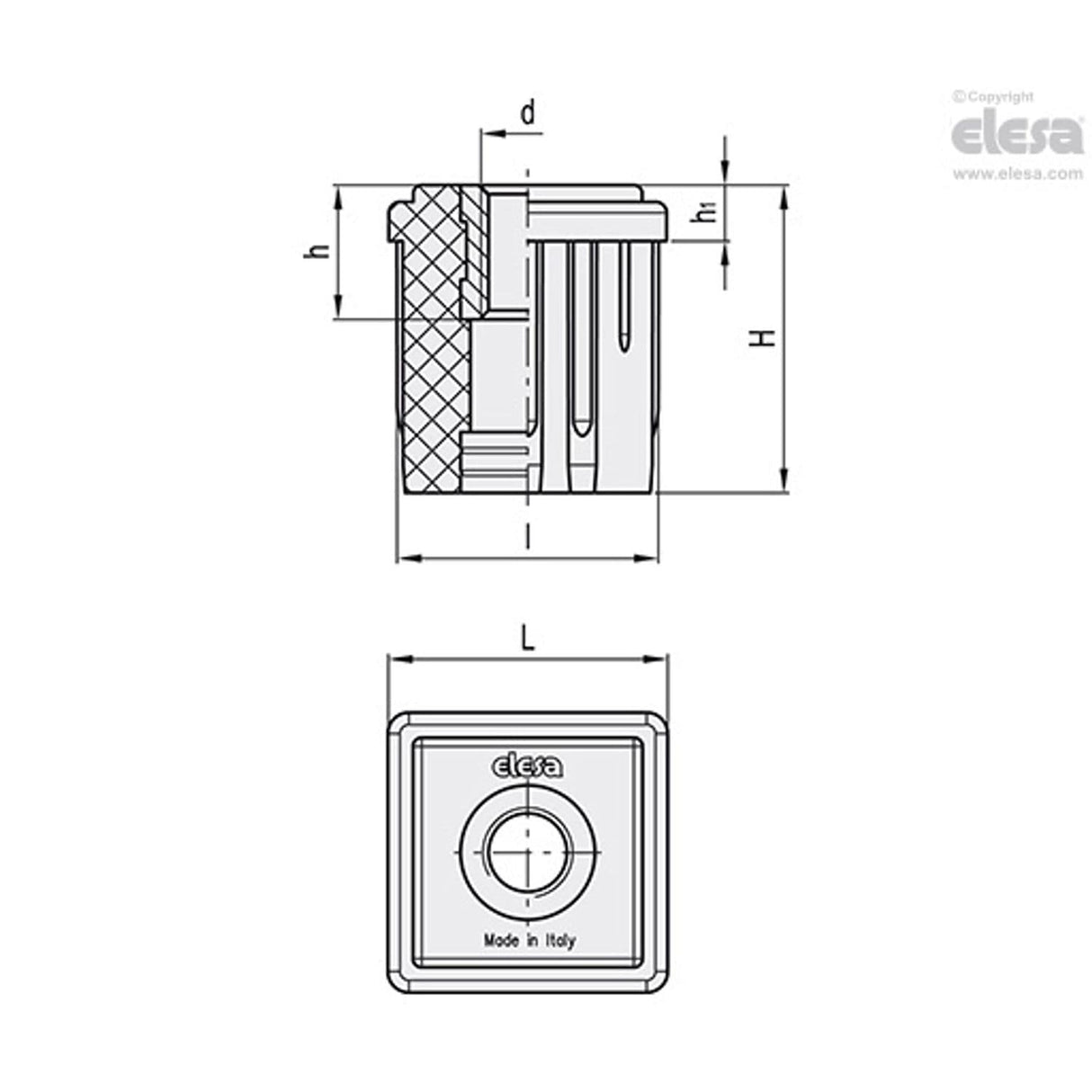

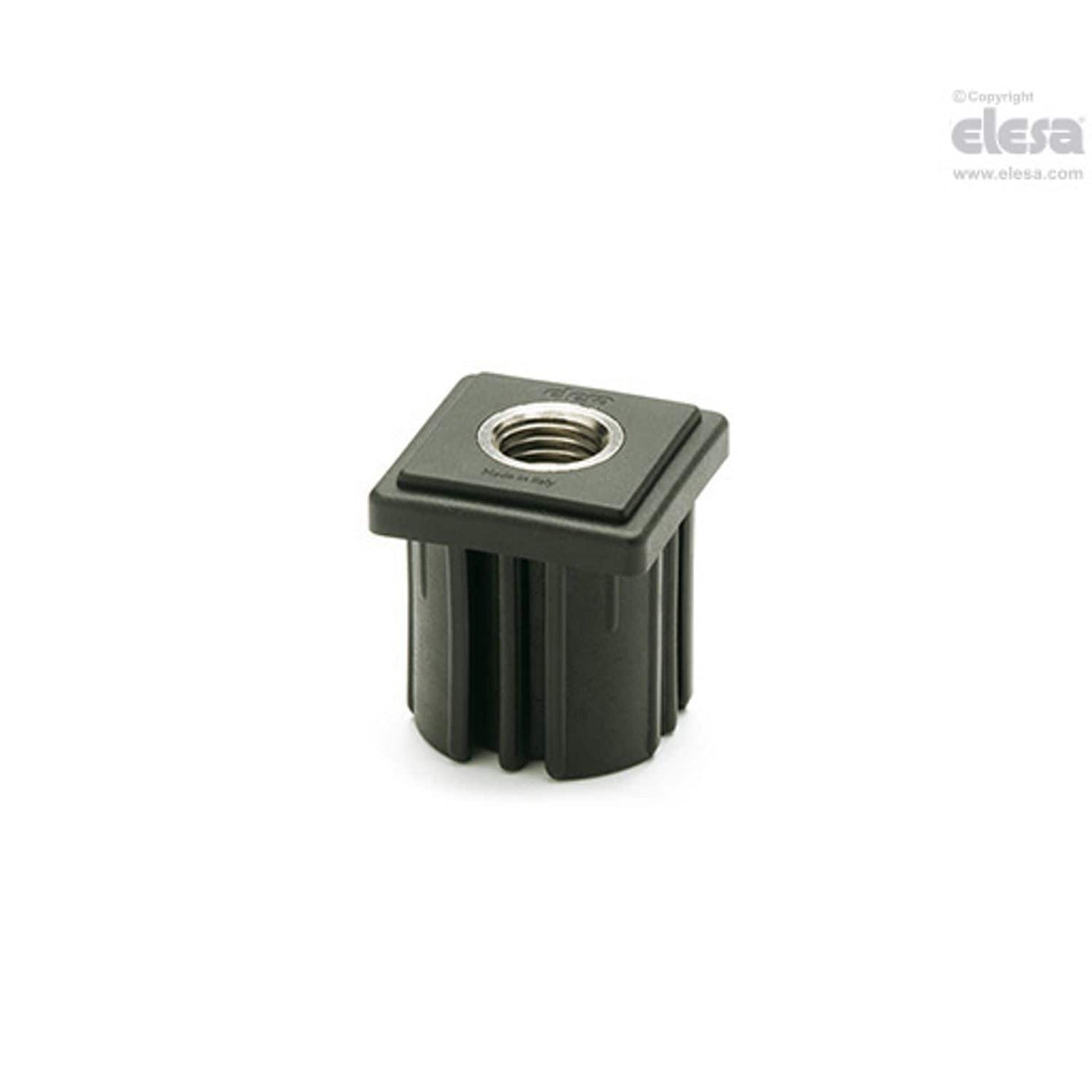

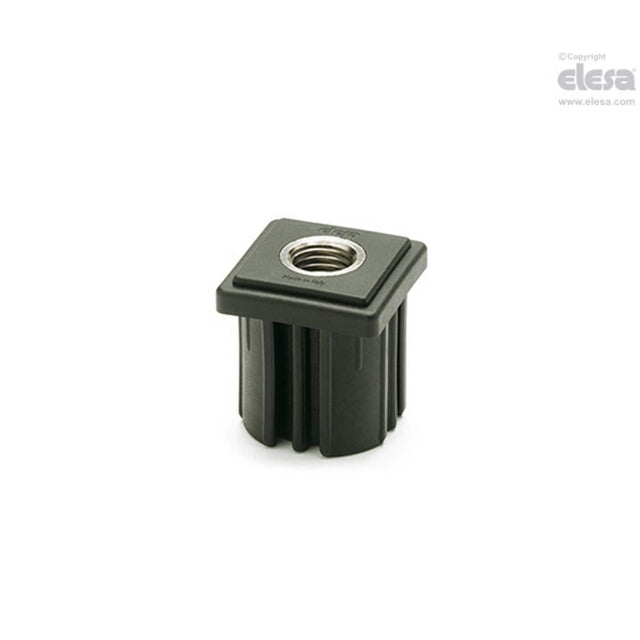

ND.Q Square end-caps for tubes, heavy loads, technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| Max. Static Load | 17000N |
| H | 33 |
| l | 27.5 |
| Weight | 42g |
| MFR Part No. | ND.Q-30x1.5-M12 |
| d | M12 |
| Tube Thickness | 1.5 |
| Inner Diameter | 27 |
| h1 | 6 |
| External Diameter | 30 |
| L | 30 |
| h | 18 |
