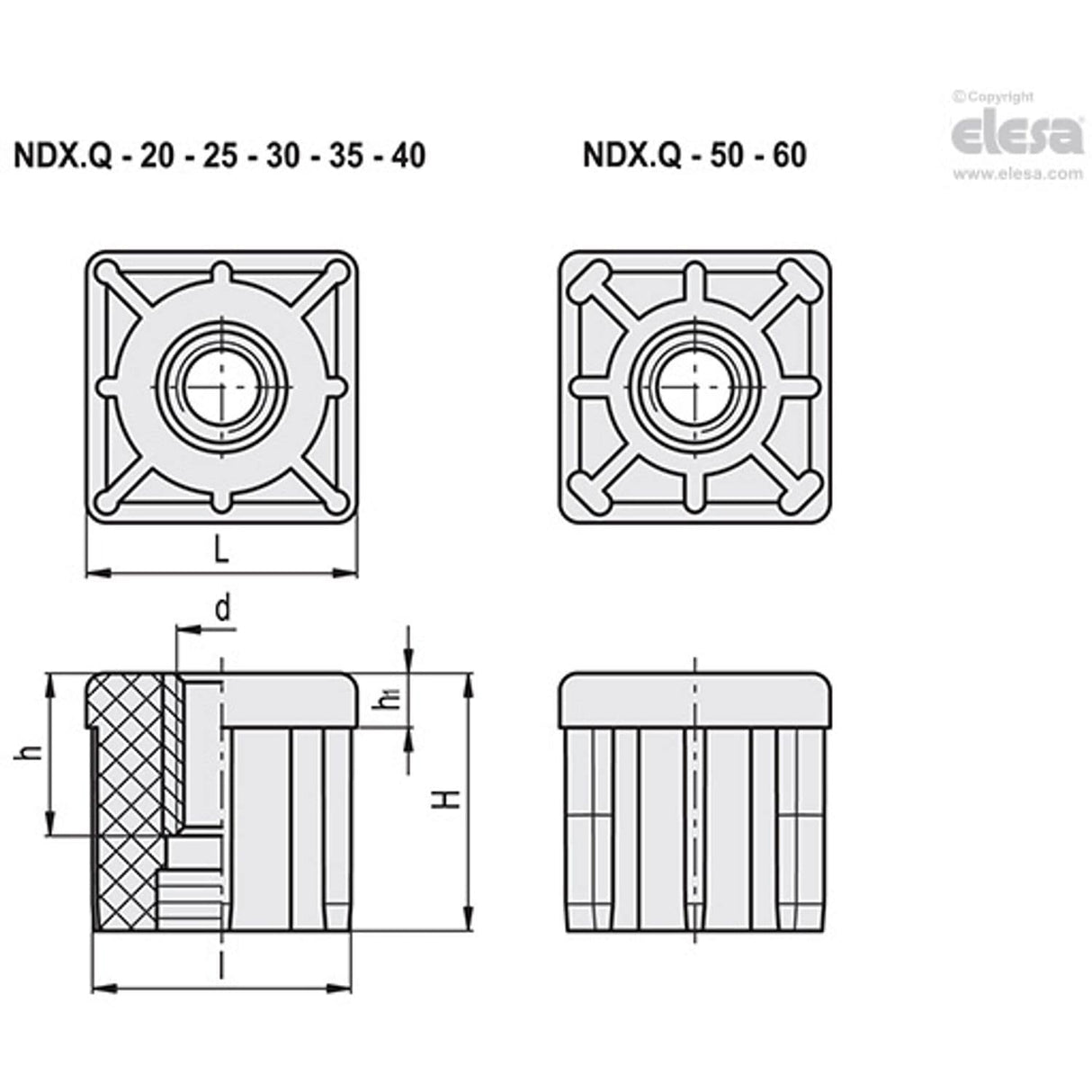

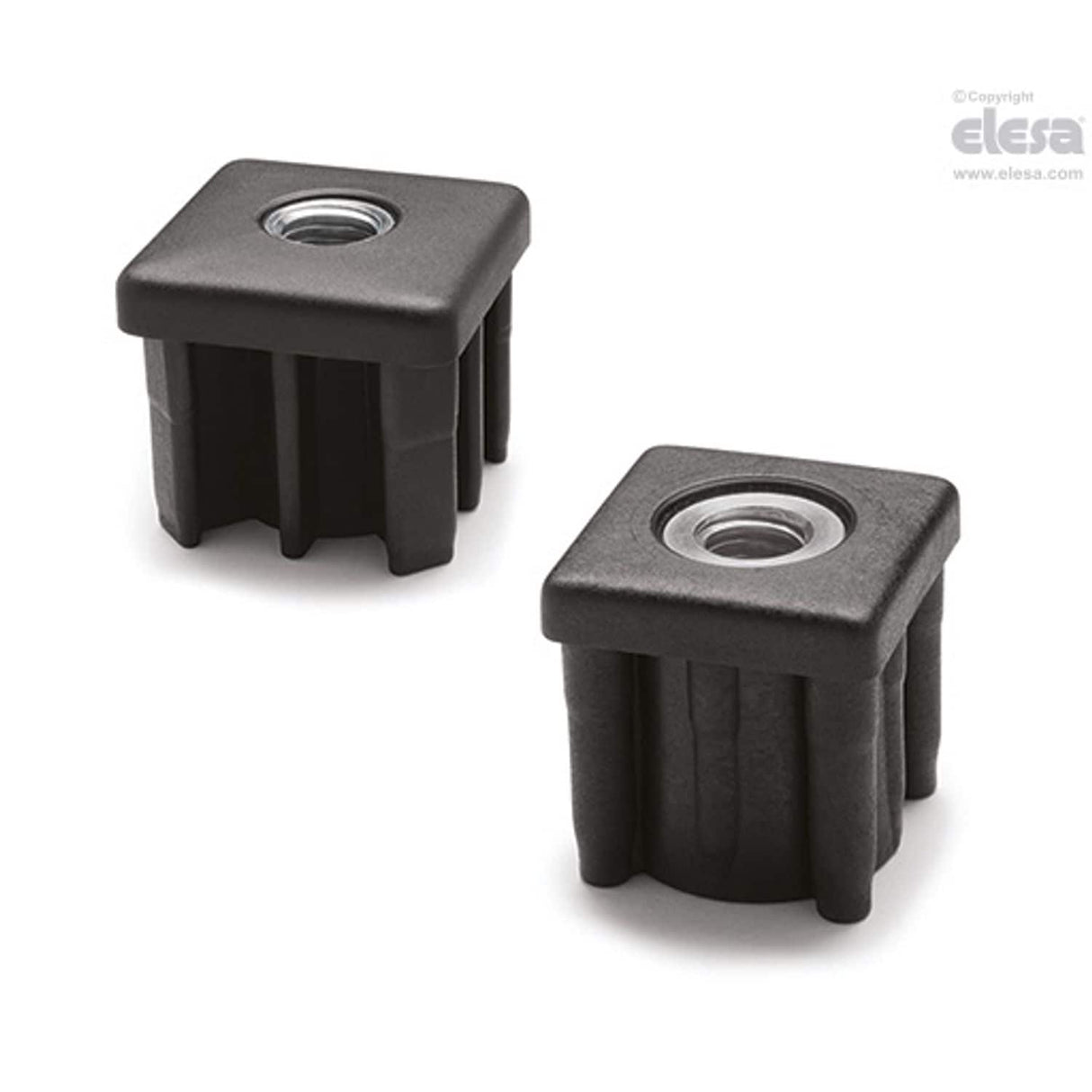

NDX.Q Square end-caps for tubes, For product drawing and dimensions refer to pdf Item data sheet.
| H | 38 |
| Max. Static Load | 6000N |
| Inner Diameter | 35 |
| h | 15 |
| MFR Part No. | NDX.Q-40x2.5-M16 |
| Weight | 49g |
| L | 40 |
| h1 | 8 |
| l | 35 |
| External Diameter | 40 |
| d | M16 |
| Tube Thickness | 2.5 |
