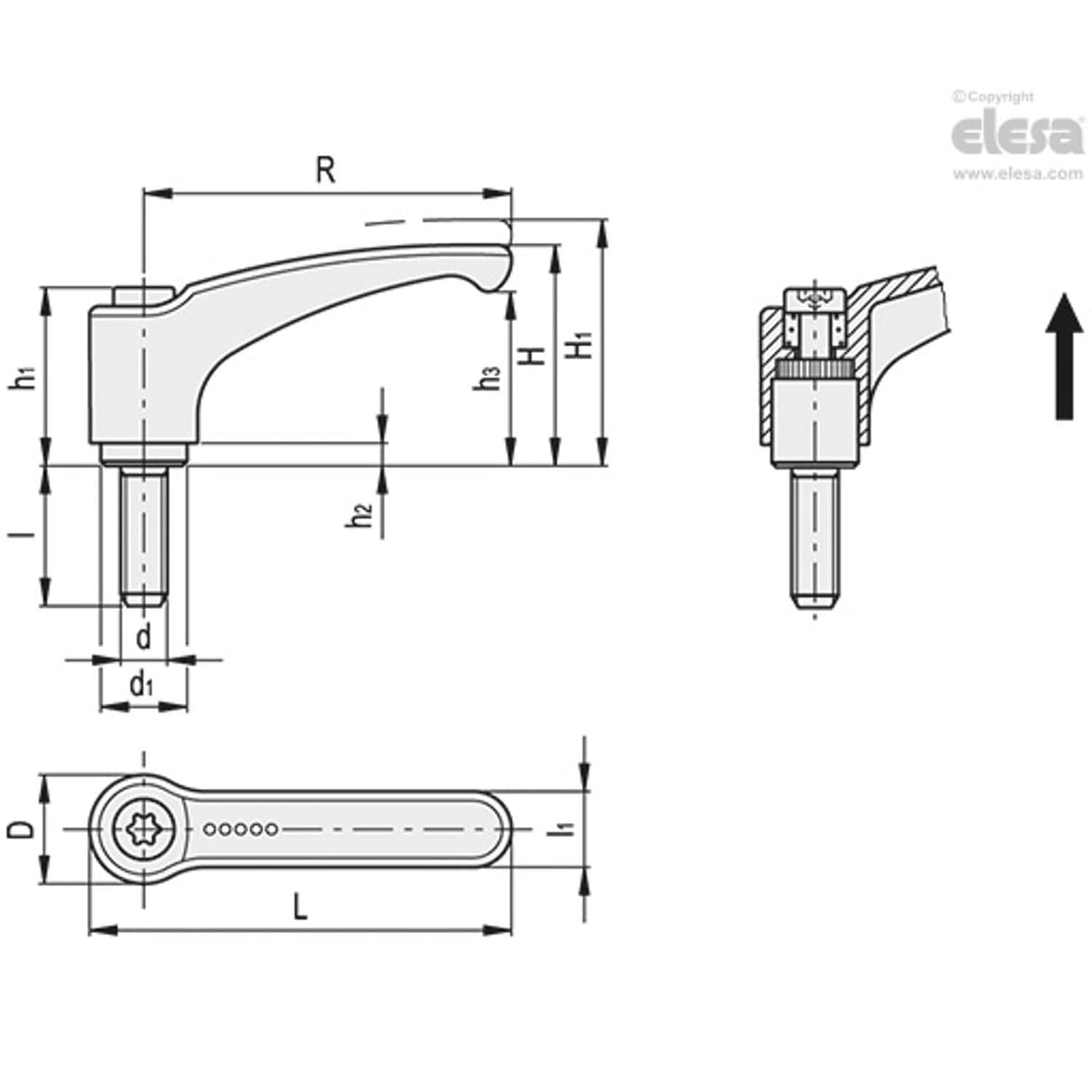

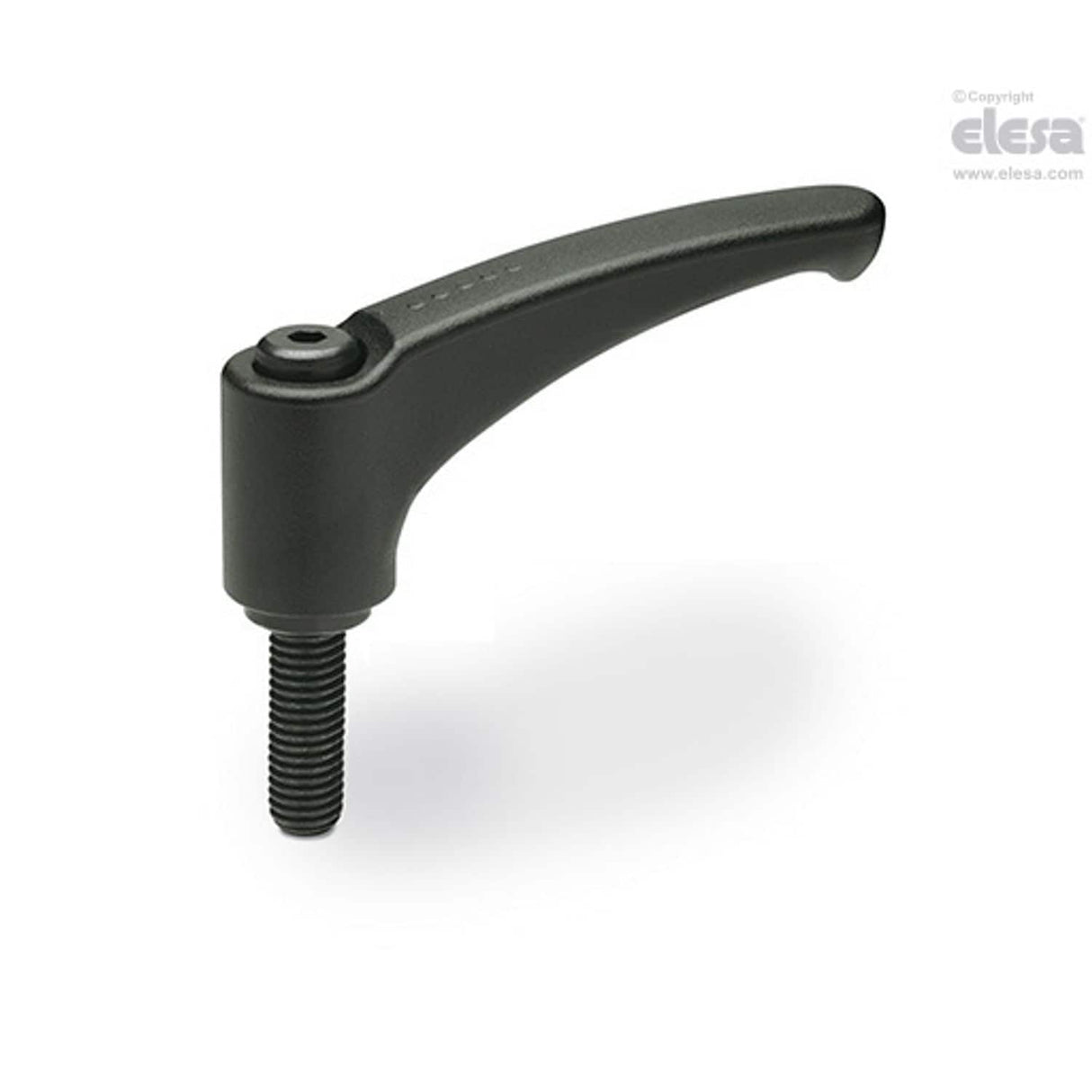

ERM. Adjustable handles, Zinc alloy, steel or stainless steel clamping element, Black-oxide steel clamping element, threaded screw For product drawing and dimensions refer to pdf Item data sheet.
| D | 18 |
| l1 | 13.5 |
| h3 | 27 |
| R | 63 |
| Diameter | 18mm |
| h1 | 31 |
| d1 | 13.5 |
| MFR Part No. | ERM.63 p-M6x25-C9 |
| H1 | 41 |
| Colour | C9 - RAL 9005 |
| Number of Teeth | 24 |
| l | 25 |
| d | M6 |
| L | 73.5 |
| H | 38 |
| Weight | 82g |
| h2 | 3.5 |
