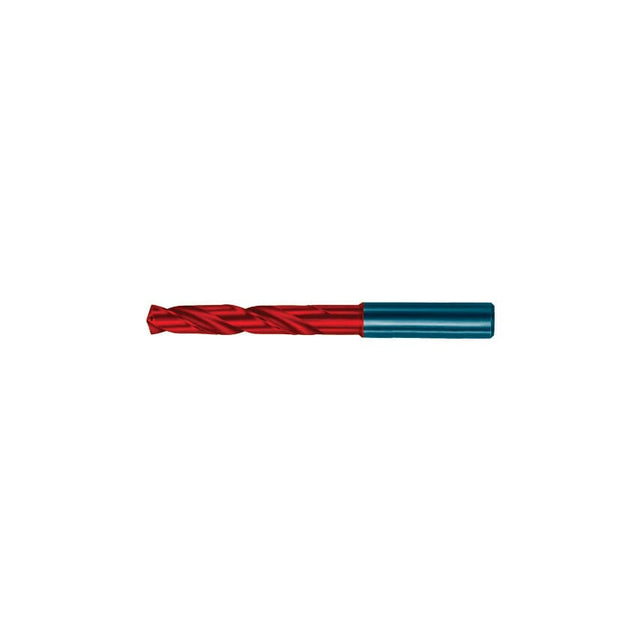

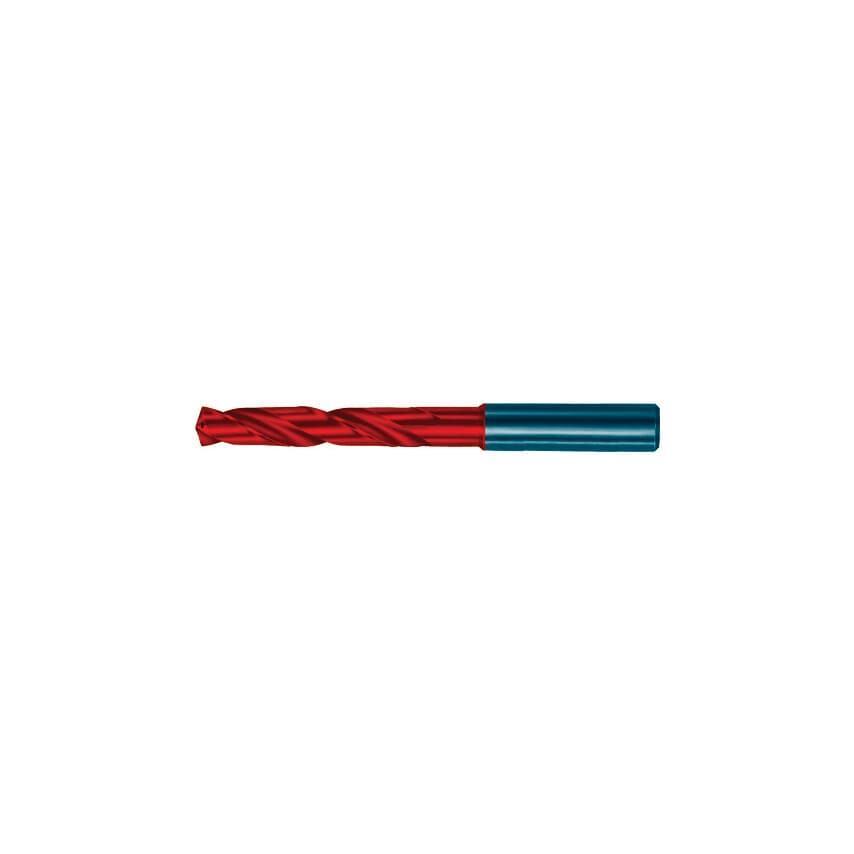

For drilling into general steel, cast steel, cast iron,chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic. FIREX Guhrings own coating uses the PVD process. An all round coating can achieve two to three times the performance of TiN, and considerably better than TiALn. Has excellent heat resistance as well as high toughness, therefore it is well-suited for interrupted cutting.
Features and Benefits
Self-centering for greater precision
Solid carbide construction for greater toughness
FIREX coating achieves two to three times the performance of TiN
Standards
Manufactured to DIN 6537
Notes
Sizes 3.00mm to 20.00mm
| Drill Diameter Metric | 4.8mm |
| Number of Flutes | 2 |
| Overall Length | 82mm |
| Helix Type | Normal Helix |
| Shank Diameter Tolerance | H6 |
| Cutting Direction | Right Hand |
| Drill Diameter | 4.8mm |
| ISO Category Grade | K | P |
| Standards Met | DIN 6537 |
| Material | Carbide |
| Shank Diameter | 6mm |
| Point Angle | 140\u00b0 |
| Coolant Delivery | Coolant Through |
| ISO Category | K | P |
| Diameter x Depth | 5xD |
| Drill Diameter Tolerance | M7 |
| Finish/Coating | FIREX\u00ae |
| Flute Type | Spiral |
| Series | 5511 |
| Flute Length | 44mm |
| MFR Part No. | 05511 004.800 |
| Carbide Drill Type | Carbide High Performance |
