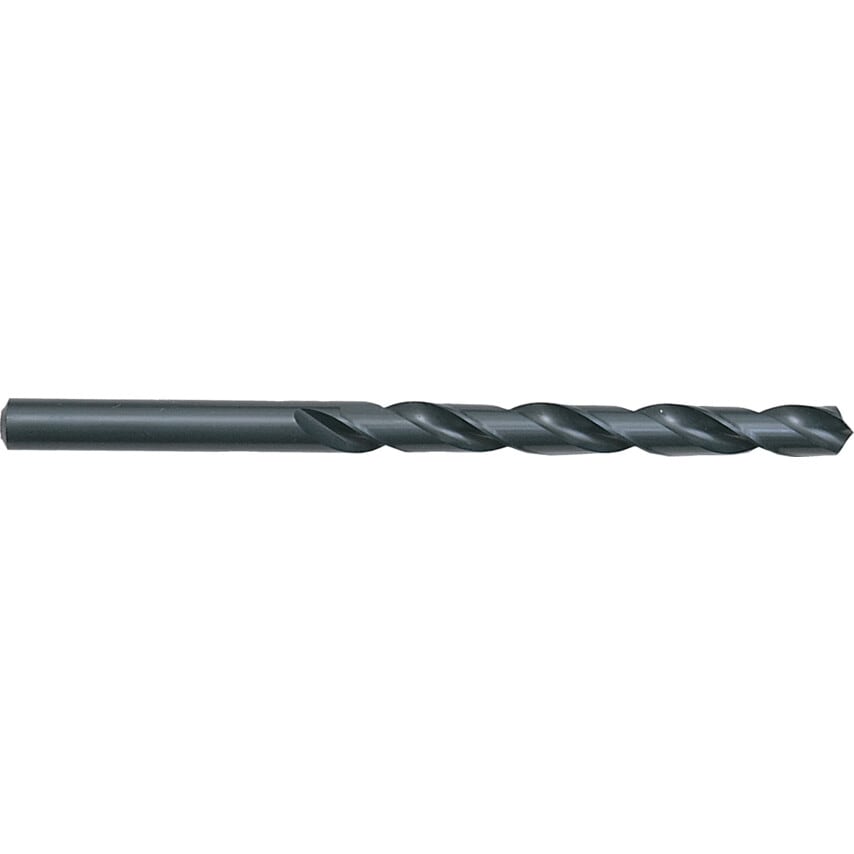

Series 217 HSS Straight Shank Long Series Drills
Inch
General-purpose high speed steel long series drills are designed for deep hole drilling of most materials. The drill has the same diameter on both the fluted section and the shank. Manufactured to BS328;Part 1:1986, DIN340RN, ISO494.
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Number of Flutes | 2 |
| Point Angle | 118\u00b0 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Drill Length Type | Long Series |
| Coolant Delivery | External |
| System of Measurement | Inch |
| Helix Type | Normal Helix |
| MFR Part No. | 00217 007.940 |
| Drill Diameter | 3/16in |
| Drill Diameter Inch | 3/16 |
| Shank Diameter Tolerance | H8 |
| Web Thickness | Form A |
| Finish/Coating | Steam Tempered |
| Flute Construction | Ground flutes |
| Material | HSS |
| Point Type | Thinned Point |
| Shank Type | Straight |
| Overall Length | 165mm |
| Number of Pieces | 1 |
| Drill Diameter Tolerance | H8 |
| Flute Length | 109mm |
| Series | 217 |
