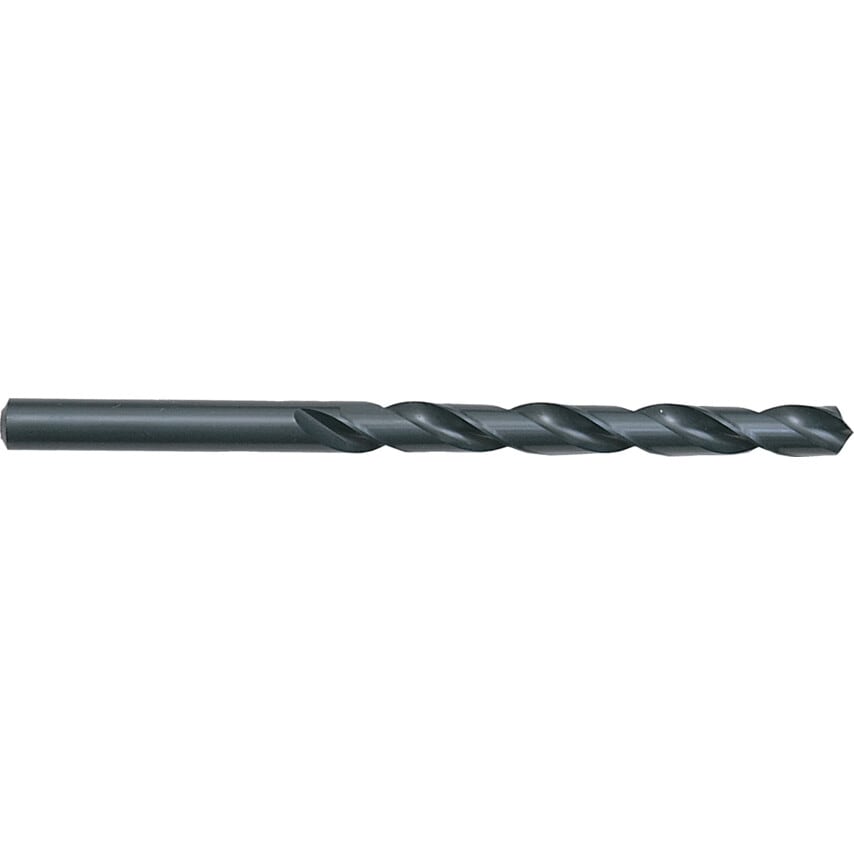

Series 217 HSS Straight Shank Long Series Drills
Metric
General-purpose high speed steel long series drills are designed for deep hole drilling of most materials. The drill has the same diameter on both the fluted section and the shank. Manufactured to BS328;Part 1:1986, DIN340RN, ISO494.
| Helix Type | Normal Helix |
| Shank Diameter Tolerance | H8 |
| Point Type | Thinned Point |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Point Angle | 118\u00b0 |
| Web Thickness | Form A |
| Coolant Delivery | External |
| Material | HSS |
| Drill Diameter Tolerance | H8 |
| Finish/Coating | Steam Tempered |
| MFR Part No. | 00217 002.550 |
| Series | 217 |
| Flute Type | Spiral |
| Overall Length | 95mm |
| Drill Diameter | 2.55mm |
| Product Type | Drills |
| Size | 2.55mm |
| Flute Length | 62mm |
| Shank Type | Straight |
| Number of Pieces | 1 |
| Drill Length Type | Long Series |
| System of Measurement | Metric |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Flute Construction | Ground flutes |
