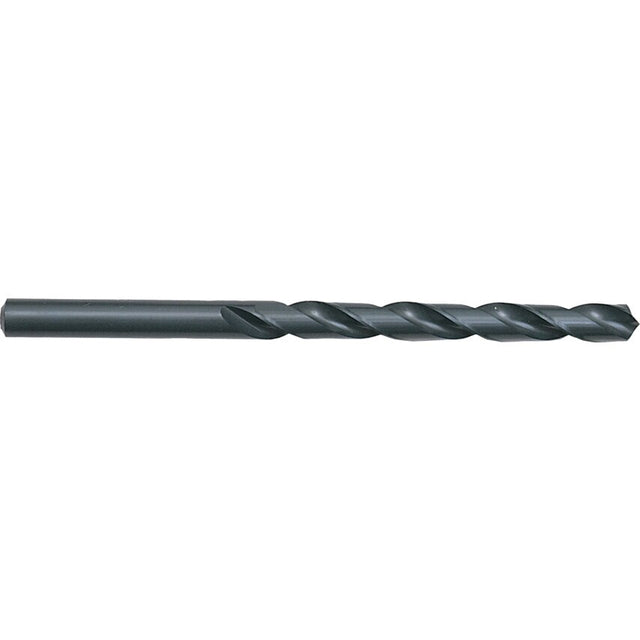

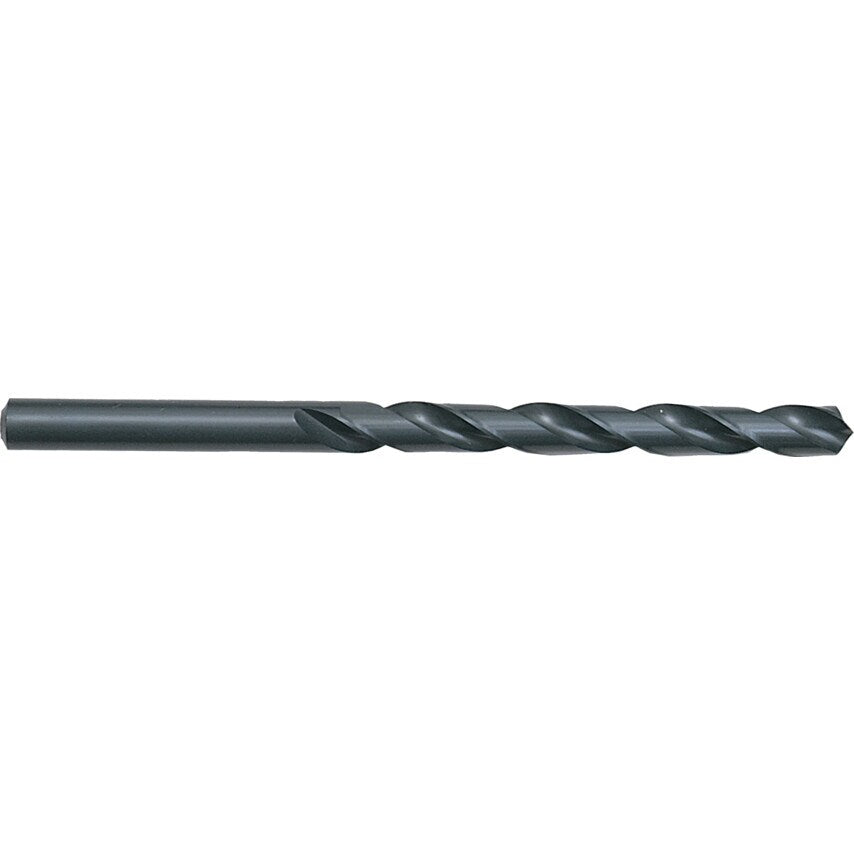

Series 217 HSS Straight Shank Long Series Drills
Metric
General-purpose high speed steel long series drills are designed for deep hole drilling of most materials. The drill has the same diameter on both the fluted section and the shank. Manufactured to BS328;Part 1:1986, DIN340RN, ISO494.
| MFR Part No. | 00217 004.900 |
| Point Type | Standard |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Drill Diameter Tolerance | H8 |
| Series | 217 |
| Product Type | Long Series Drills |
| Shank Type | Straight |
| Point Angle | 118\u00b0 |
| Flute Construction | Ground flutes |
| Cutting Direction | Right Hand |
| Overall Length | 132mm |
| Number of Flutes | 2 |
| System of Measurement | Metric |
| Drill Diameter | 4.9mm |
| Flute Length | 87mm |
| Finish/Coating | Steam Tempered |
| Helix Type | Normal Helix |
| Drill Length Type | Long Series |
| Drill Diameter Metric | 4.9 |
| Material | HSS |
| Flute Type | Spiral |
| Coolant Delivery | External |
| Web Thickness | Form A |
| Shank Diameter Tolerance | F11 |
| Number of Pieces | 1 |
