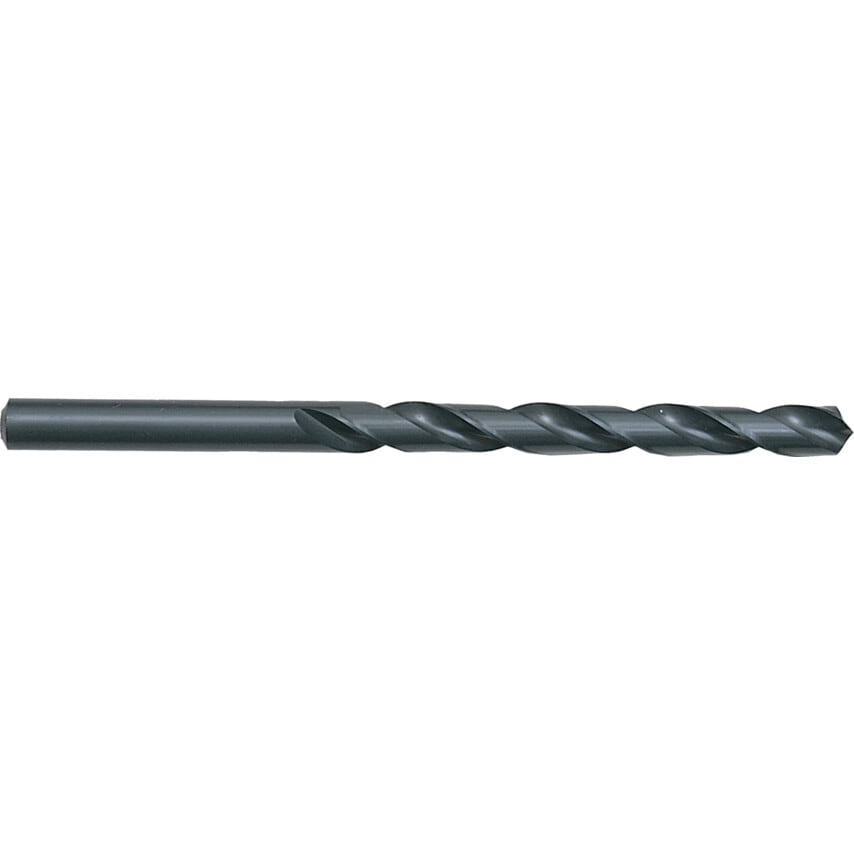

Series 217 HSS Straight Shank Long Series Drills
Metric
General-purpose high speed steel long series drills are designed for deep hole drilling of most materials. The drill has the same diameter on both the fluted section and the shank. Manufactured to BS328;Part 1:1986, DIN340RN, ISO494.
| Flute Type | Spiral |
| Flute Length | 97mm |
| Number of Flutes | 2 |
| Series | 217 |
| Product Type | Drills |
| Drill Diameter Tolerance | H8 |
| Web Thickness | Form A |
| Flute Construction | Ground flutes |
| Point Type | Standard |
| Finish/Coating | Steam Tempered |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Coolant Delivery | External |
| Point Angle | 118\u00b0 |
| Drill Diameter | 6.1mm |
| Shank Diameter Tolerance | F11 |
| Size | 6.1mm |
| Helix Type | Normal Helix |
| Overall Length | 148mm |
| System of Measurement | Metric |
| Material | HSS |
| MFR Part No. | 00217 006.100 |
| Number of Pieces | 1 |
| Cutting Direction | Right Hand |
| Drill Length Type | Long Series |
