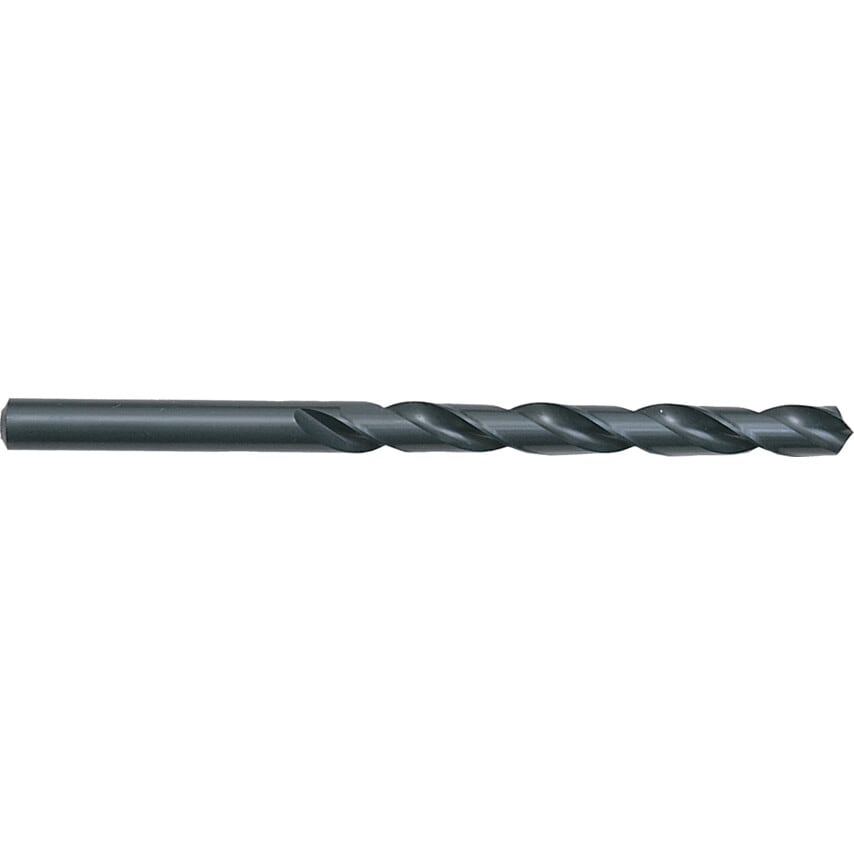

Series 217 HSS Straight Shank Long Series Drills
Metric
General-purpose high speed steel long series drills are designed for deep hole drilling of most materials. The drill has the same diameter on both the fluted section and the shank. Manufactured to BS328;Part 1:1986, DIN340RN, ISO494.
| Web Thickness | Form A |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Series | 217 |
| Helix Type | Normal Helix |
| Finish/Coating | Steam Tempered |
| Overall Length | 148mm |
| Cutting Direction | Right Hand |
| Size | 6.2mm |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Point Angle | 118\u00b0 |
| Shank Diameter Tolerance | F11 |
| Flute Construction | Ground flutes |
| Drill Length Type | Long Series |
| Product Type | Drills |
| Flute Length | 97mm |
| Point Type | Standard |
| Material | HSS |
| System of Measurement | Metric |
| Drill Diameter | 6.2mm |
| Flute Type | Spiral |
| MFR Part No. | 00217 006.200 |
| Number of Pieces | 1 |
| Drill Diameter Tolerance | H8 |
