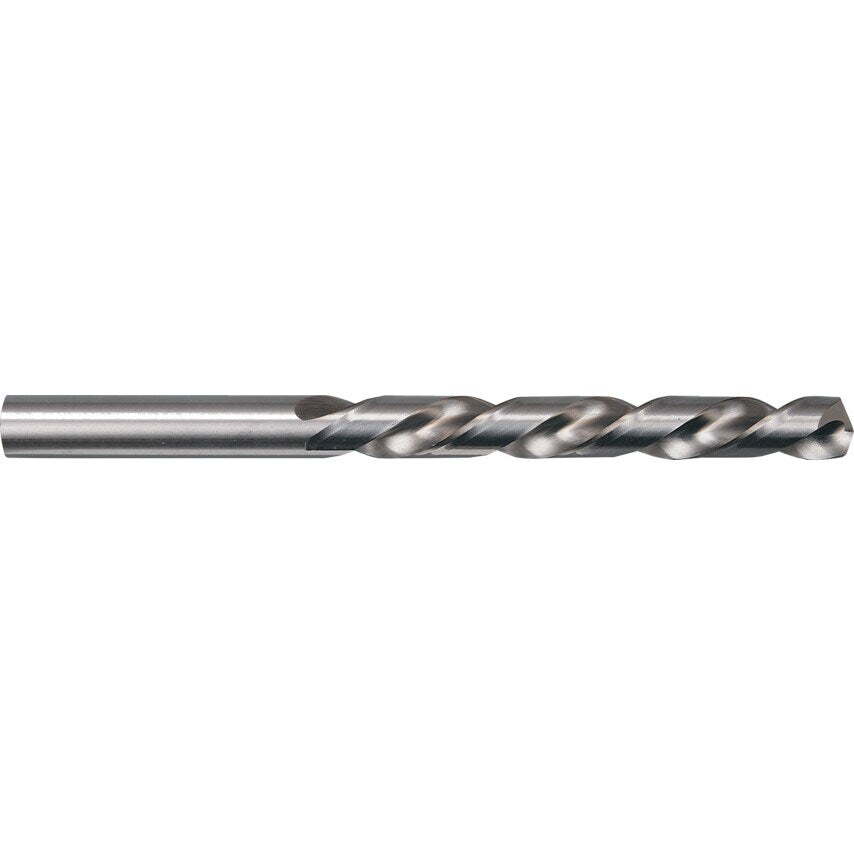

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| MFR Part No. | 00605 001.750 |
| Overall Length | 46mm |
| Drill Diameter Metric | 1.75mm |
| Number of Flutes | 2 |
| Material | Cobalt High Speed Steel |
| Drill Diameter | 1.75mm |
| Type | HSS-CO |
| Drill Diameter Tolerance | H8 |
| Product Type | Jobber Drills |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Diameter | 1.75mm |
| Point Type | Split Point |
| Standards Met | DIN 338 |
| Size | 1.75mm |
| Shank Type | Straight |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| Point Angle | 130\u00b0 |
| Series | 605 |
| Helix Type | High Helix |
| Flute Length | 22mm |
