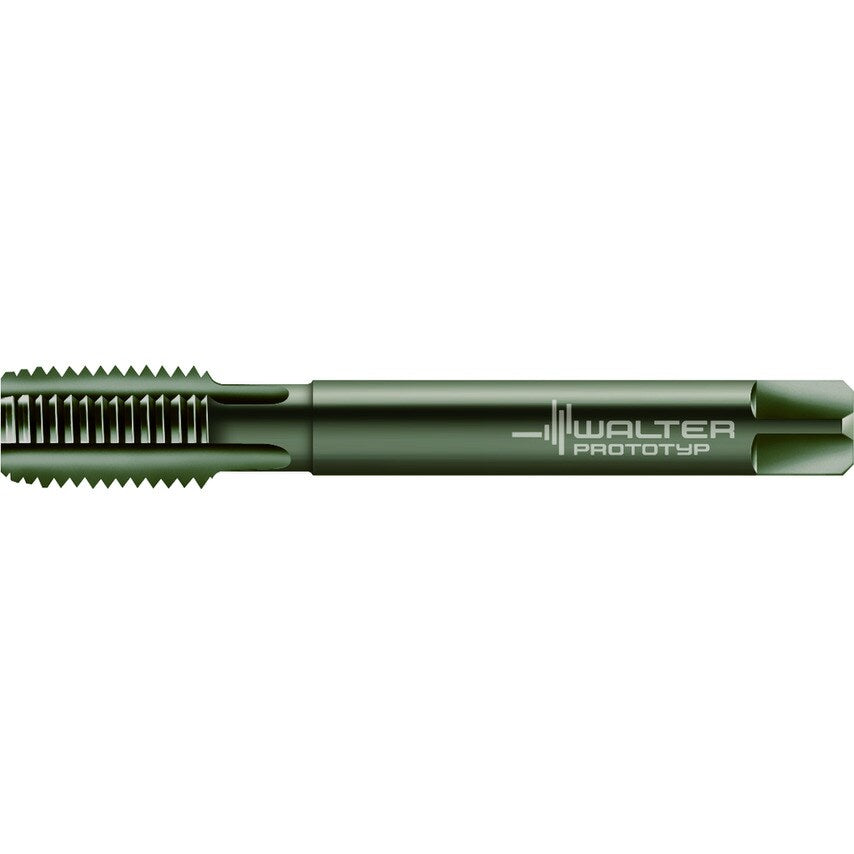

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD UNF/2B DIN 2184-1 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole NID UNF 5/16-24 P=24
| Usable Length | 67mm |
| Functional Length | 90mm |
| Clamping Width | 4.9mm |
| Number of Grooves | 4 |
| Cutting Edge Length | 18mm |
| Thread Size | UNF 5/16-24 |
| Tool Designation | E23364-UNF5/16 |
| Driving Square Length | 8mm |
| Connection Diameter | 6mm |
| MFR Part No. | 5603202 |
