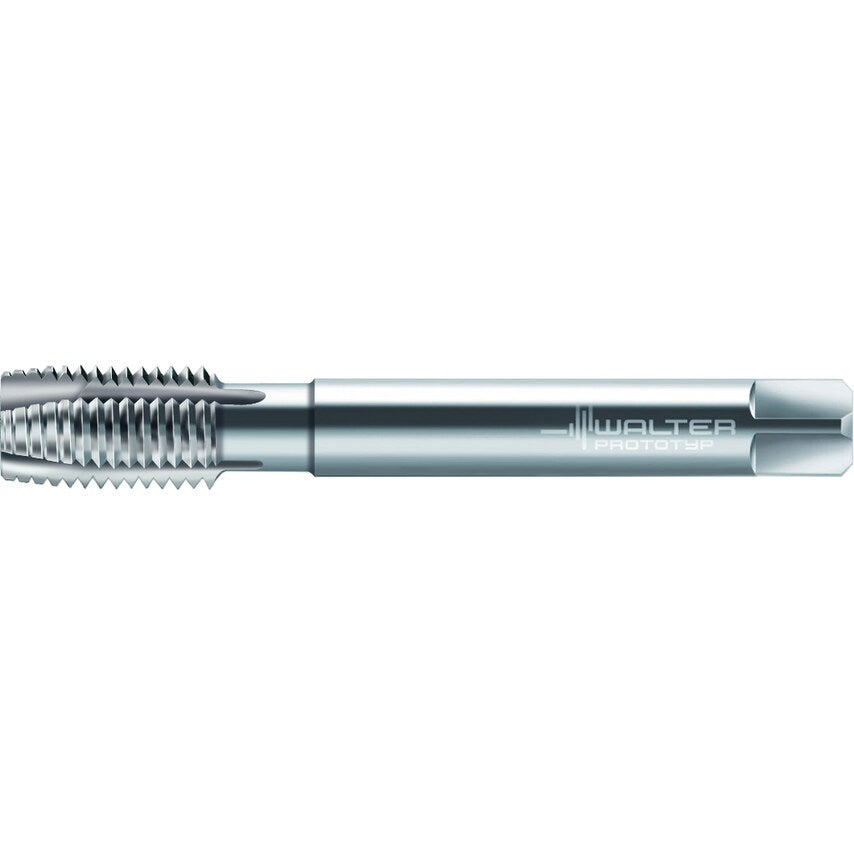

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD BSW/MEDIUM DIN 2184-1 Suitable for through hole BSW 7/8-9 P=9
| Thread Standard | BSW |
| MFR Part No. | 6149532 |
| Shank Diameter | 18mm |
| Cutting Edge Length | 30mm |
| Thread Size | BSW 7/8-9 |
| Tool Designation | P28360-BSW7/8 |
| Usable Length | 93mm |
| Number of Grooves | 4 |
| Clamping Width | 14.5mm |
| Driving Square Length | 17mm |
| Overall Length | 140mm |
| Tap Type | Machine Tap |
| Material | HSSE |
| Threads Per Inch | 9 |
