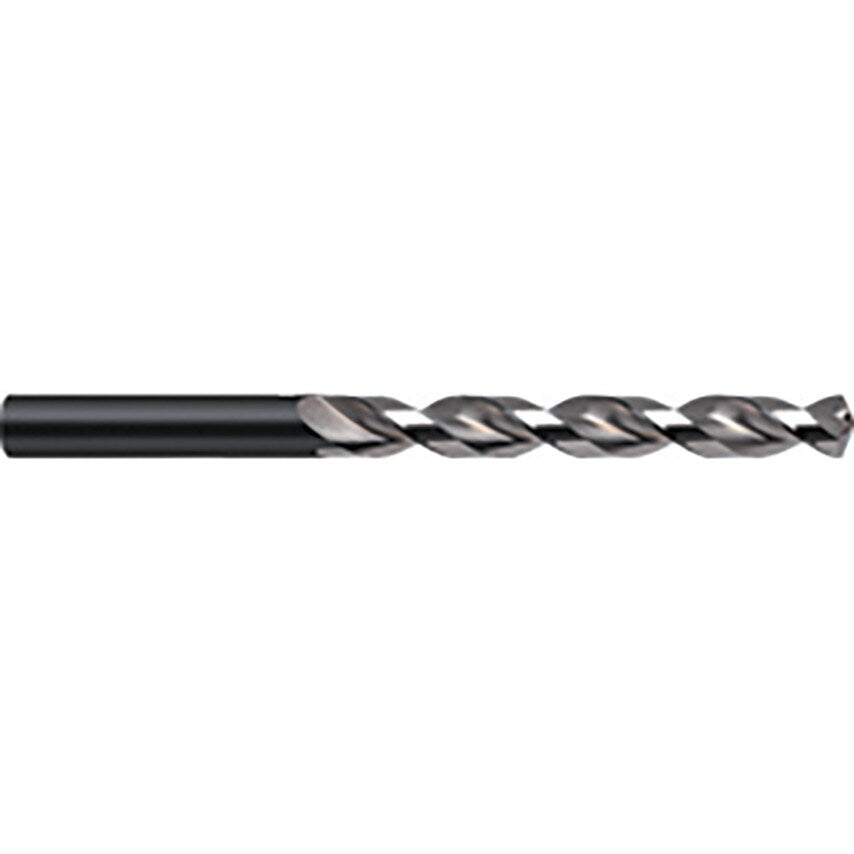

Series 622 HSCo GT100 High Helix (Parabolic Flute) Straight Shank Jobber Drills
Metric
High heat resistant drill with wide chip space. Suitable for drilling alloyed and unalloyed steels and castings with a high tensile strength over 800N/mm2. Particularly suitable for drilling hot and cold rolled steels. Manufactured to BS 328, DIN338RN.
| Drill Diameter | 2.37mm |
| Coolant Delivery | External |
| Size | 2.37mm |
| Material | Cobalt High Speed Steel |
| Diameter | 2.37mm |
| Finish/Coating | Bright |
| Helix Type | High Helix |
| Drill Diameter Tolerance | H8 |
| Flute Construction | Ground flutes |
| Number of Flutes | 2 |
| Type | Jobber Drills |
| MFR Part No. | 00622 002.370 |
| Shank Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| Series | 622 |
| Product Type | Jobber Drills |
| Drill Diameter Metric | 2.37mm |
| Flute Length | 30mm |
| Overall Length | 57mm |
| Flute Type | Parabolic |
| Standards Met | DIN 338 |
| Web Thickness | Form A |
| Point Angle | 130\u00b0 |
| Shank Type | Straight |
