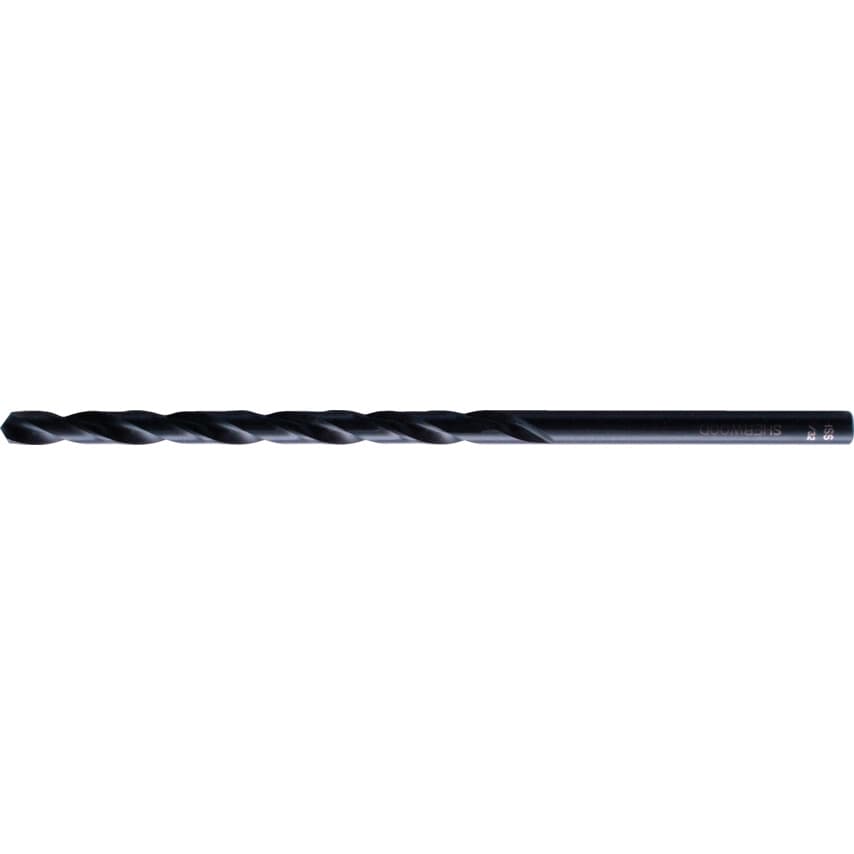

Series L100 HSS straight shank long series drills are general purpose high speed steel long series drills are designed for deep hole drilling of most materials.
Features and Benefits
High speed steel construction for increased tool toughness
Extra length for deep drilling applications
Black oxide coating for increased heat and wear resistance
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Notes
The drill has the same diameter on both the fluted section and the shank
| Point Type | Split Point |
| Shank Diameter Tolerance | F11 |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Finish/Coating | Steam Tempered |
| Drill Length Type | Long Series |
| Drill Diameter | 7/16in |
| Overall Length | 7-11/16in |
| Series | L100 |
| Drill Diameter Inch | 7/16 |
| Product Type | Drills |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Shank Type | Straight |
| Helix Type | Normal Helix |
| Helix Angle | 30\u00b0 |
| Drill Diameter Tolerance | H8 |
| Flute Length | 5-1/32in |
| Material | HSS |
| Number of Pieces | 1 |
| Web Thickness | Standard |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Flute Construction | Ground flutes |
| System of Measurement | Inch |
| Cutting Direction | Right Hand |
