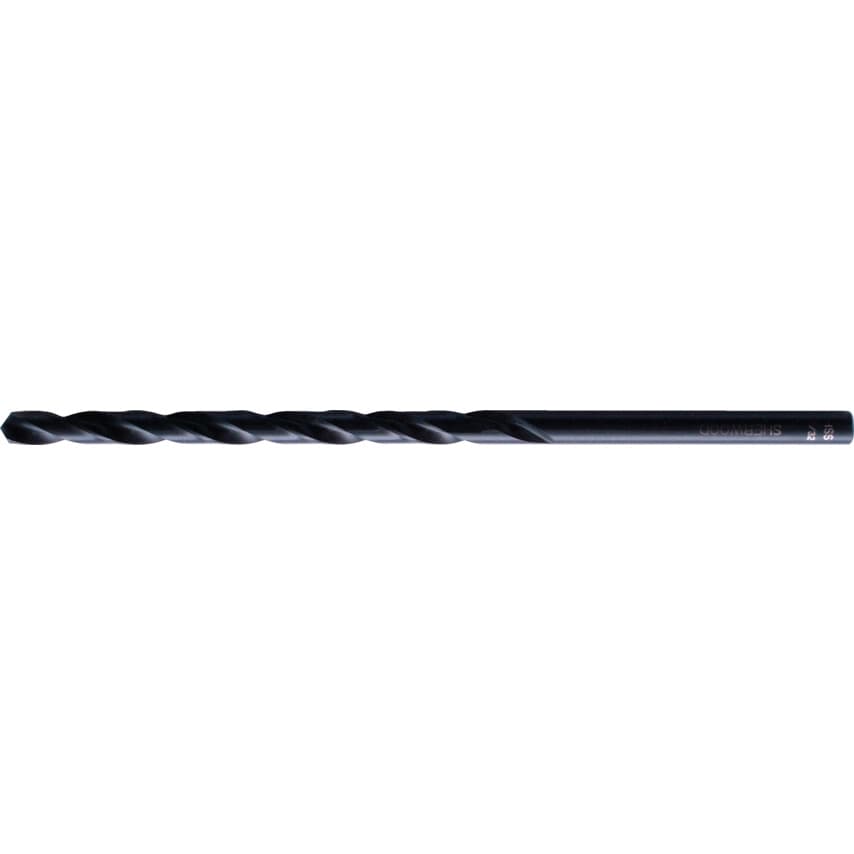

Series L100 HSS straight shank long series drills are general purpose high speed steel long series drills are designed for deep hole drilling of most materials.
Features and Benefits
High speed steel construction for increased tool toughness
Extra length for deep drilling applications
Black oxide coating for increased heat and wear resistance
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Notes
The drill has the same diameter on both the fluted section and the shank
| Product Type | Drills |
| Finish/Coating | Steam Tempered |
| Point Type | Split Point |
| Shank Type | Straight |
| Flute Type | Spiral |
| Number of Pieces | 1 |
| Drill Diameter | 17/64in |
| Web Thickness | Standard |
| Helix Type | Normal Helix |
| Shank Diameter Tolerance | F11 |
| Overall Length | 6-1/8in |
| Drill Length Type | Long Series |
| Number of Flutes | 2 |
| Helix Angle | 30\u00b0 |
| Flute Length | 4in |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Drill Diameter Inch | 17/64 |
| Material | HSS |
| Point Angle | 118\u00b0 |
| Drill Diameter Tolerance | H8 |
| System of Measurement | Inch |
| Series | L100 |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Flute Construction | Ground flutes |
