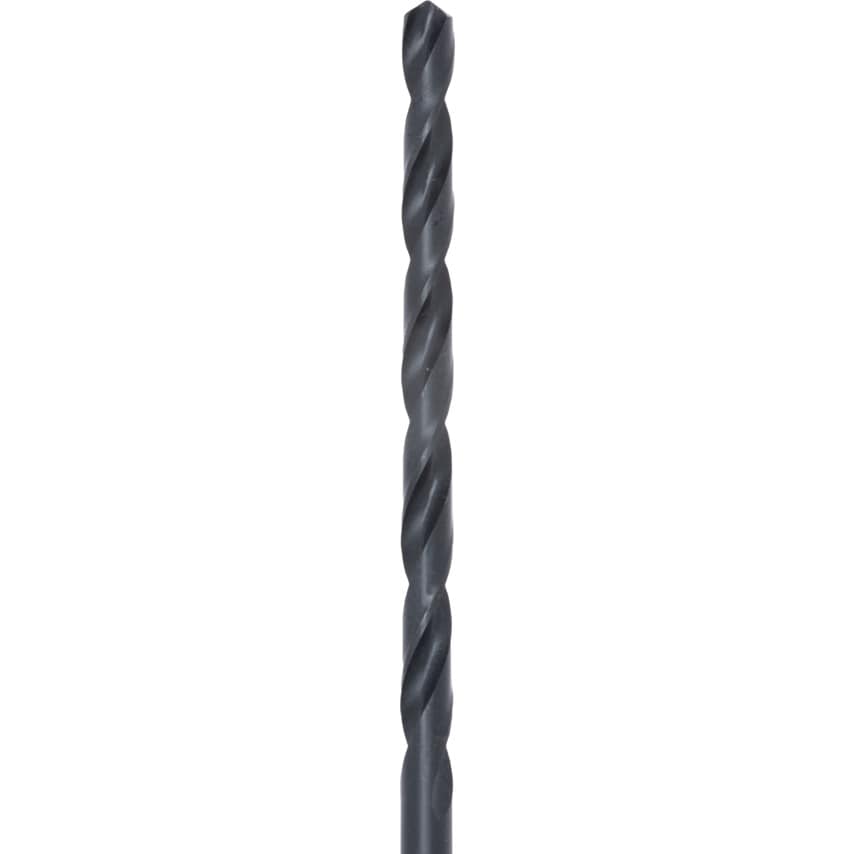

Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
Manufactured from HSS for improved toughness
Black oxide coating for greater heat and wear resistance
Ideal for general purpose drilling
Typical Applications
Drilling
Steels
Grey cast iron
Malleable cast iron
Nickel brass
Graphite
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
| Drill Diameter Tolerance | H8 |
| Flute Construction | Ground flutes |
| Finish/Coating | Steam Tempered |
| Material | HSS |
| Cutting Direction | Right Hand |
| Drill Diameter Metric | 6 |
| Helix Angle | 30\u00b0 |
| Web Thickness | Standard |
| Drill Length Type | Long Series |
| Shank Type | Straight |
| System of Measurement | Metric |
| Flute Type | Spiral |
| Helix Type | Normal Helix |
| Product Type | Drills |
| Number of Flutes | 1 |
| Coolant Delivery | External |
| Point Type | Split Point |
| Flute Length | 91mm |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Number of Pieces | 1 |
| Drill Diameter | 6mm |
| Shank Diameter Tolerance | F11 |
| Series | L100 |
| Point Angle | 118\u00b0 |
| Overall Length | 139mm |
