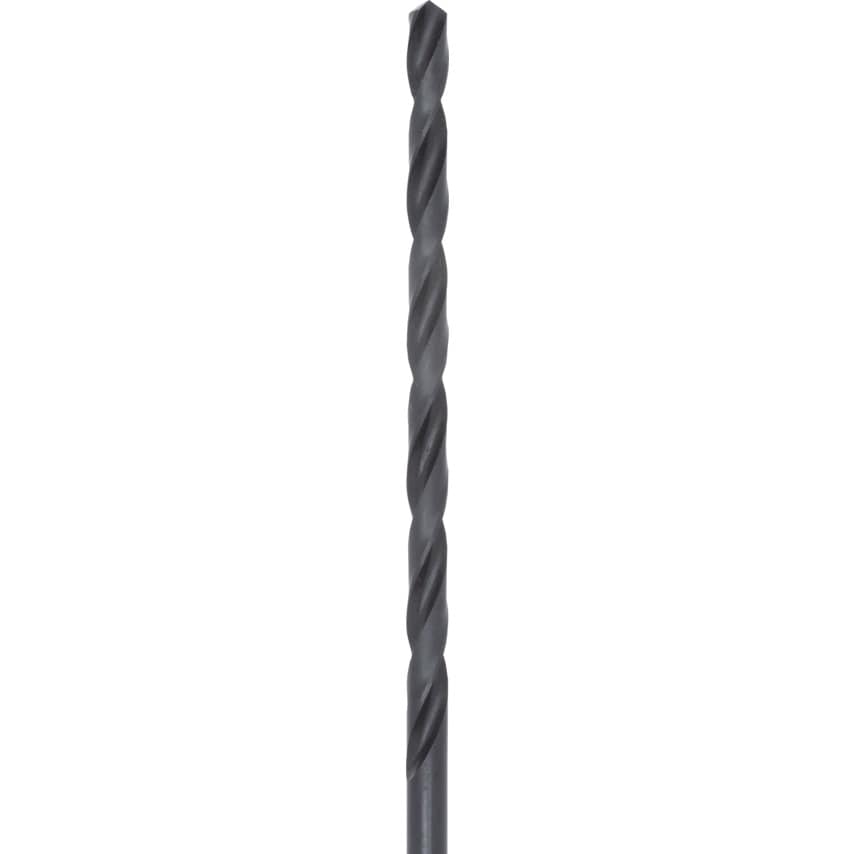

Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
Manufactured from HSS for improved toughness
Black oxide coating for greater heat and wear resistance
Ideal for general purpose drilling
Typical Applications
Drilling
Steels
Grey cast iron
Malleable cast iron
Nickel brass
Graphite
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
| Drill Diameter | 4.5mm |
| Point Type | Split Point |
| Material | HSS |
| Coolant Delivery | External |
| Finish/Coating | Steam Tempered |
| Point Angle | 118\u00b0 |
| Drill Diameter Metric | 4.5 |
| Cutting Direction | Right Hand |
| Web Thickness | Standard |
| Number of Flutes | 1 |
| Helix Type | Normal Helix |
| System of Measurement | Metric |
| Overall Length | 126mm |
| Flute Construction | Ground flutes |
| Drill Length Type | Long Series |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Number of Pieces | 1 |
| Shank Type | Straight |
| Series | L100 |
| Shank Diameter Tolerance | F11 |
| Helix Angle | 30\u00b0 |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Flute Length | 82mm |
