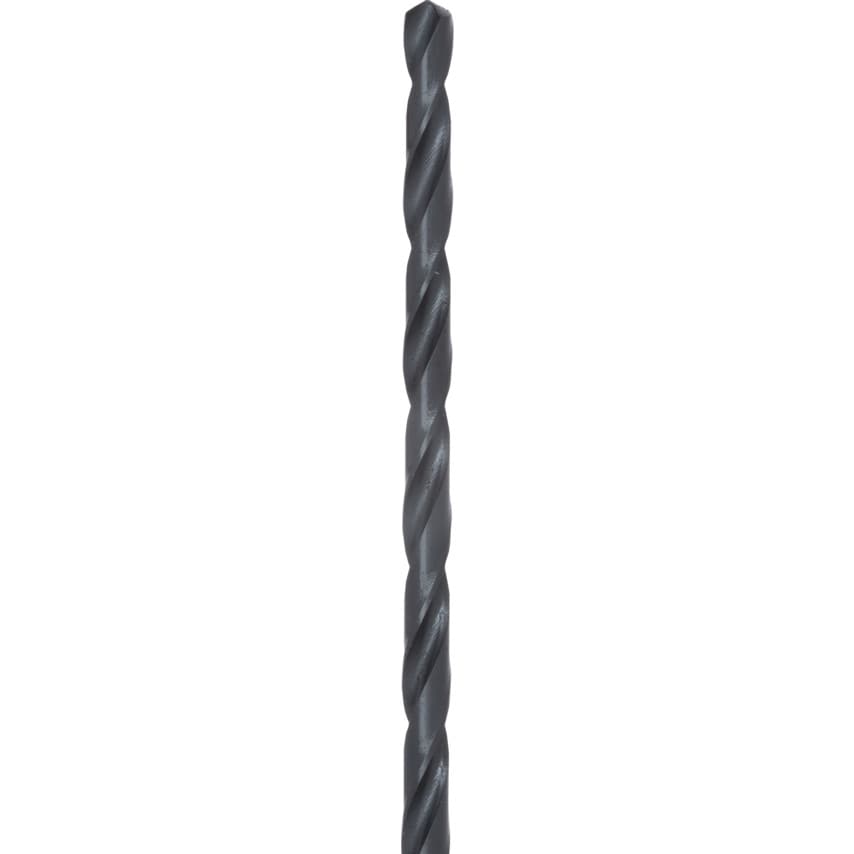

Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
Manufactured from HSS for improved toughness
Black oxide coating for greater heat and wear resistance
Ideal for general purpose drilling
Typical Applications
Drilling
Steels
Grey cast iron
Malleable cast iron
Nickel brass
Graphite
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
| Finish/Coating | Steam Tempered |
| Drill Length Type | Long Series |
| Drill Diameter Tolerance | H8 |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Drill Diameter | 3.3mm |
| Material | HSS |
| Helix Angle | 30\u00b0 |
| Point Type | Split Point |
| Shank Type | Straight |
| Coolant Delivery | External |
| Number of Pieces | 1 |
| Series | L100 |
| Drill Diameter Metric | 3.3 |
| Shank Diameter Tolerance | F11 |
| Flute Construction | Ground flutes |
| System of Measurement | Metric |
| Helix Type | Normal Helix |
| Number of Flutes | 1 |
| Point Angle | 118\u00b0 |
| Overall Length | 106mm |
| Web Thickness | Standard |
| Flute Length | 69mm |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
