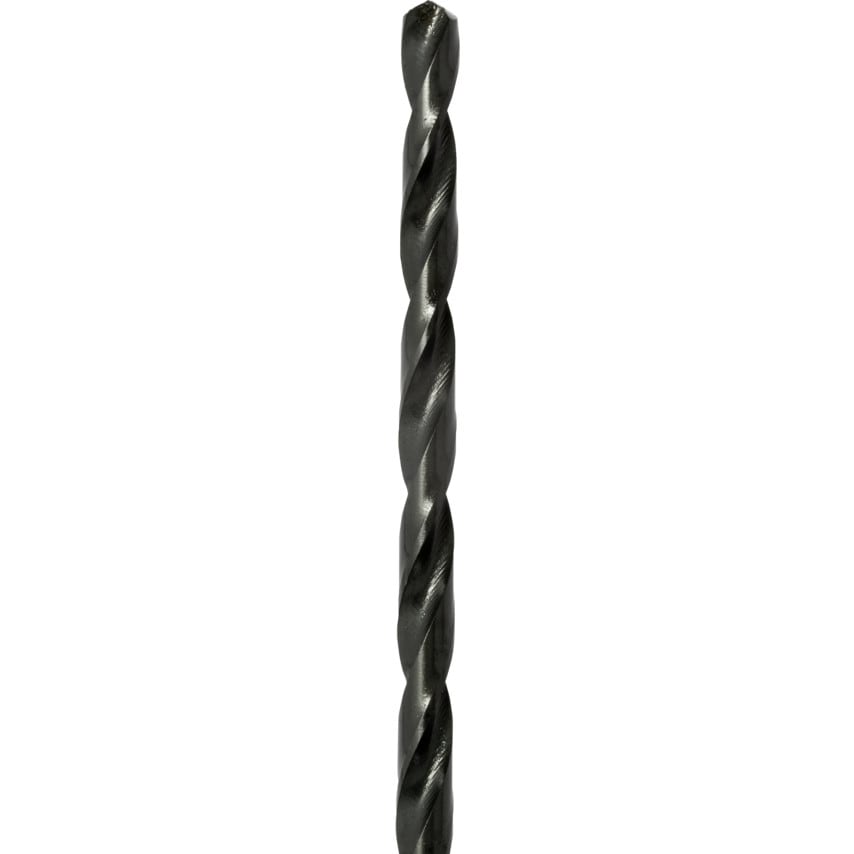

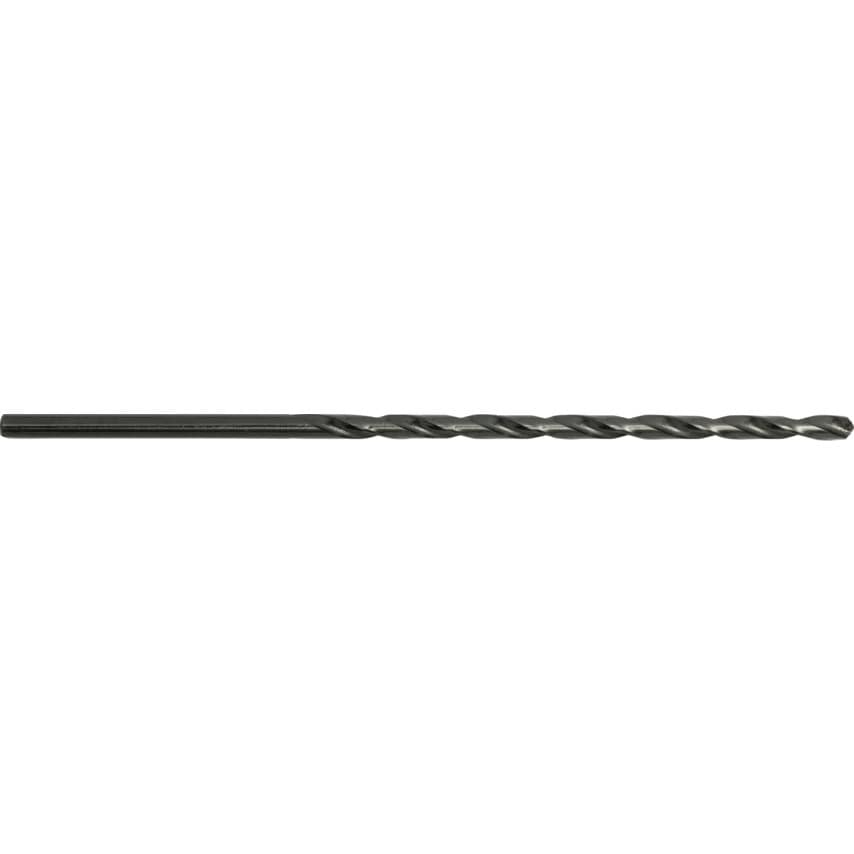

Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
Manufactured from HSS for improved toughness
Black oxide coating for greater heat and wear resistance
Ideal for general purpose drilling
Typical Applications
Drilling
Steels
Grey cast iron
Malleable cast iron
Nickel brass
Graphite
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
| Drill Diameter Metric | 3.2 |
| System of Measurement | Metric |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Number of Flutes | 1 |
| Material | HSS |
| Flute Type | Spiral |
| Shank Diameter Tolerance | F11 |
| Drill Length Type | Long Series |
| Series | L100 |
| Flute Length | 69mm |
| Point Angle | 118\u00b0 |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Drill Diameter Tolerance | H8 |
| Overall Length | 106mm |
| Cutting Direction | Right Hand |
| Drill Diameter | 3.2mm |
| Web Thickness | Standard |
| Point Type | Split Point |
| Shank Type | Straight |
| Helix Angle | 30\u00b0 |
| Number of Pieces | 1 |
| Finish/Coating | Steam Tempered |
| Helix Type | Normal Helix |
